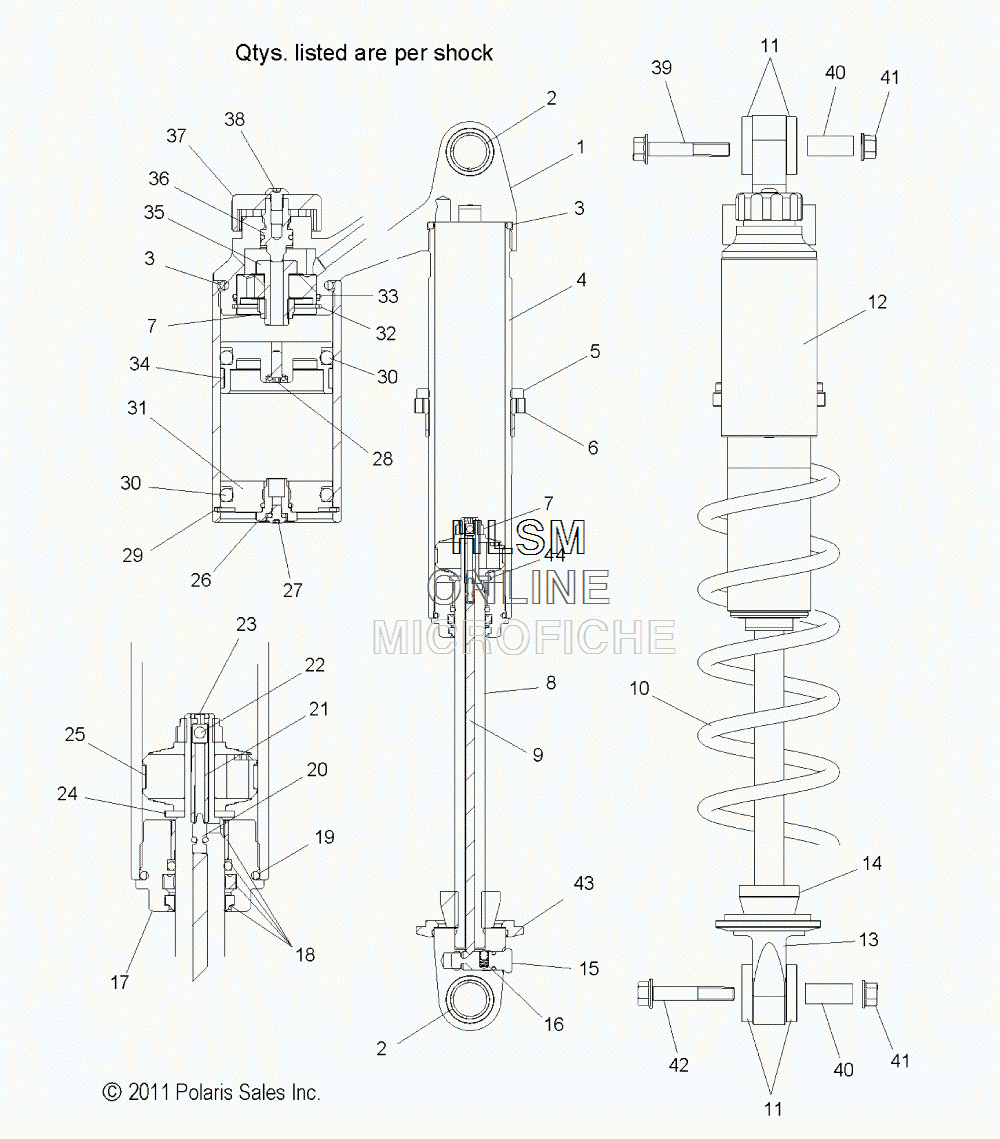

SHOCK - IFS - INTERNAL COMPONENTS для Polaris 800 RUSH PRO R LE [S14BV8G] - 2014 года выпуска`
-
№АртикулНазвание
-
--7043827 SHOCK, IFSSHOCK, IFS
-
11800461 LOOP, PIGGYBACKLOOP, PIGGYBACK
-
21800405 SLEEVESLEEVE
-
31800030 O-RING, BODYO-RING, BODY
-
41800535 BODY, IFS, CLEARBODY, IFS, CLEAR
-
51800465 NUT, JAMNUT, JAM
-
61800046 RETAINER, SPRINGRETAINER, SPRING
-
71800031 NUT, CRIMPNUT, CRIMP
-
81800522 SHAFT, IFS REBOUNDSHAFT, IFS REBOUND
-
91800529 ROD, REBOUND ADJ.ROD, REBOUND ADJ.
-
107043732-133 SPRING, COMPRESSION, 80# WHITESPRING, COMPRESSION, 80# WHITE
-
111800406 BUSHINGBUSHING
-
121800523 BODY, RESERVOIRBODY, RESERVOIR
-
131800521 LOOP, SHAFT, REBOUNDLOOP, SHAFT, REBOUND
-
141800462 BUMPERBUMPER
-
151800527 KNOB, REBOUND ADJ.KNOB, REBOUND ADJ.
-
161800127 BALL, D-TENTBALL, D-TENT
-
161800128 SPRING, D-TENTSPRING, D-TENT
-
171800414 ASM., SEAL HEADASM., SEAL HEAD
-
181800038 BUSHING, SHAFTBUSHING, SHAFT
-
181800322 WIPER, D-TYPEWIPER, D-TYPE
-
181800323 SEALSEAL
-
181800037 O-RINGO-RING
-
191800027 O-RING, BODYO-RING, BODY
-
201800526 PISTON, REBOUNDPISTON, REBOUND
-
201800525 O-RINGO-RING
-
441800536 SPACER, SHAFTSPACER, SHAFT
-
211800528 HOUSING, CHECK BALLHOUSING, CHECK BALL
-
221800531 BALL, CHECKBALL, CHECK
-
231800530 SCREW, SET, HOLLOWSCREW, SET, HOLLOW
-
241800050 WASHERWASHER
-
251800001 PISTON, CONVEXPISTON, CONVEX
-
251800297 BAND, WEARBAND, WEAR
-
261800329 VALVE, NEEDLEVALVE, NEEDLE
-
261800215 O-RING, STUDO-RING, STUD
-
271800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
271800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
281800043 SCREW, BLEEDSCREW, BLEED
-
281800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
291800159 RING, SNAPRING, SNAP
-
301800184 O-RINGO-RING
-
311800420 CAP, END, RESERVOIR, BLACKCAP, END, RESERVOIR, BLACK
-
321800359 RING, SNAPRING, SNAP
-
331800358 O-RINGO-RING
-
341800355 PISTONPISTON
-
341800185 BAND, PISTONBAND, PISTON
-
351800354 BOLT, CLICKERBOLT, CLICKER
-
361800352 STUD, CLICKERSTUD, CLICKER
-
361800215 O-RINGO-RING
-
371800418 KNOB, CLICKER, BLACKKNOB, CLICKER, BLACK
-
381800357 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
397518941 SCREWSCREW
-
405137360 BUSHINGBUSHING
-
417547423 NUT, NYLOKNUT, NYLOK
-
427518971 SCREWSCREW
-
431800116 RING, SPRING RETAINERRING, SPRING RETAINER
