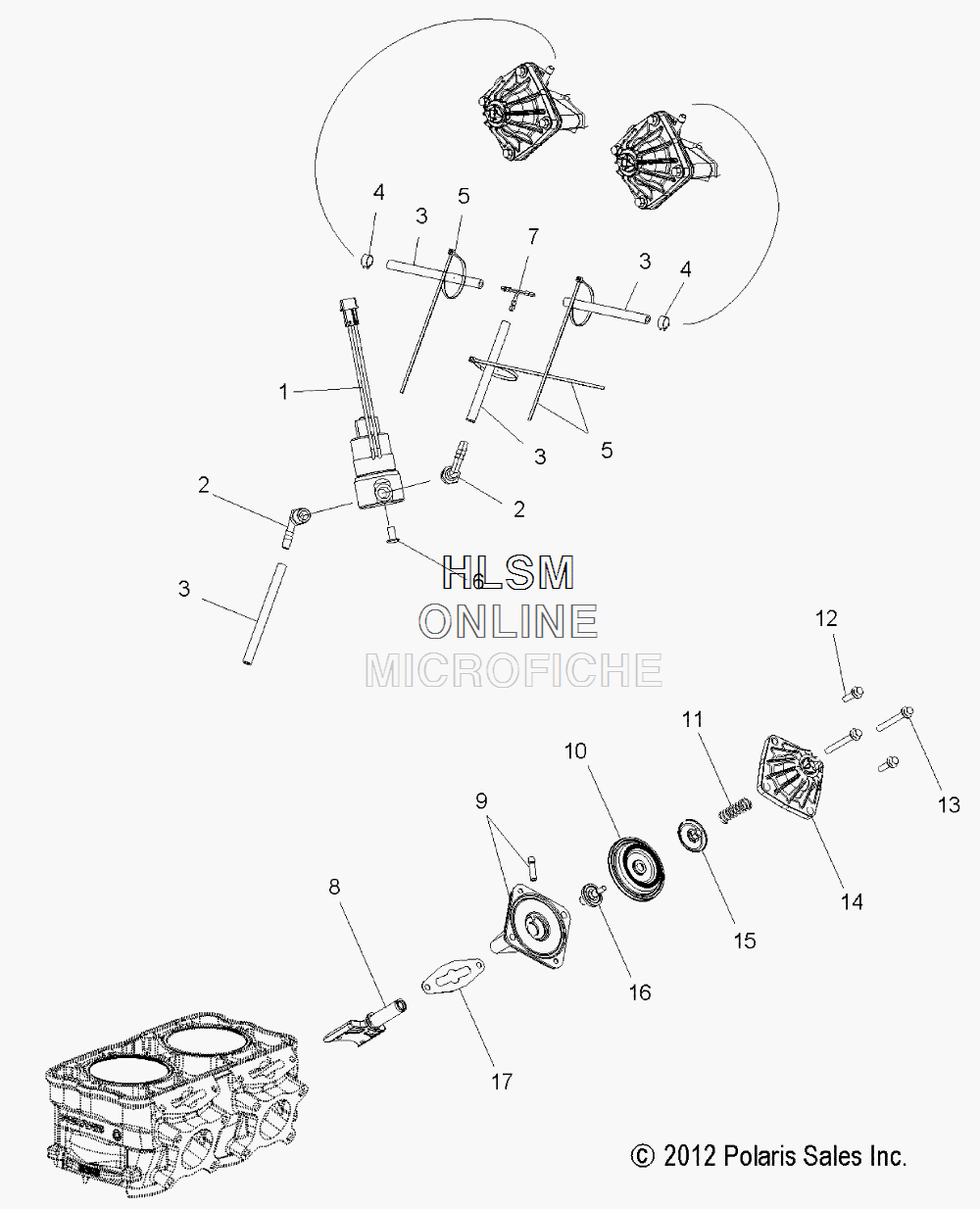

EXHAUST VALVES W/SOLENOID для Polaris 800 RMK ASSAULT 155 LE [S14CN8LE] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    4013269 SOLENOID, EV
    SOLENOID, EV
  • 2
    7050000 FITTING
    FITTING
  • 3
    8450040-600 LINE, FUEL
    LINE, FUEL
  • 4
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 5
    7080138 CABLE TIE
    CABLE TIE
  • 6
    7518321 BOLT
    BOLT
  • 7
    7052075 FITTING, TEE
    FITTING, TEE
  • 8
    5138076 VALVE, GUILLOTINE, 800 INT. THD.
    VALVE, GUILLOTINE, 800 INT. THD.
  • 9
    1204445 BASE, EXHAUST VALVE W/FITTING
    BASE, EXHAUST VALVE W/FITTING
  • 9
    7052145 FITTING
    FITTING
  • 10
    5414495 BELLOWS, EXHAUST, RIB NMX
    BELLOWS, EXHAUST, RIB NMX
  • 11
    7041704-02 SPRING, ORANGE
    SPRING, ORANGE
  • 12
    7516820 SCREW
    SCREW
  • 13
    7517932 SCREW
    SCREW
  • 14
    1202640 ASM., HOUSING W/BUSHING
    ASM., HOUSING W/BUSHING
  • 15
    5137602 CAP/NUT, BELLOWS
    CAP/NUT, BELLOWS
  • 16
    5137733 STUD/WASHER, EXHAUST VALVE
    STUD/WASHER, EXHAUST VALVE
  • 17
    5813934 GASKET, EXHAUST VALVE, BASE
    GASKET, EXHAUST VALVE, BASE
