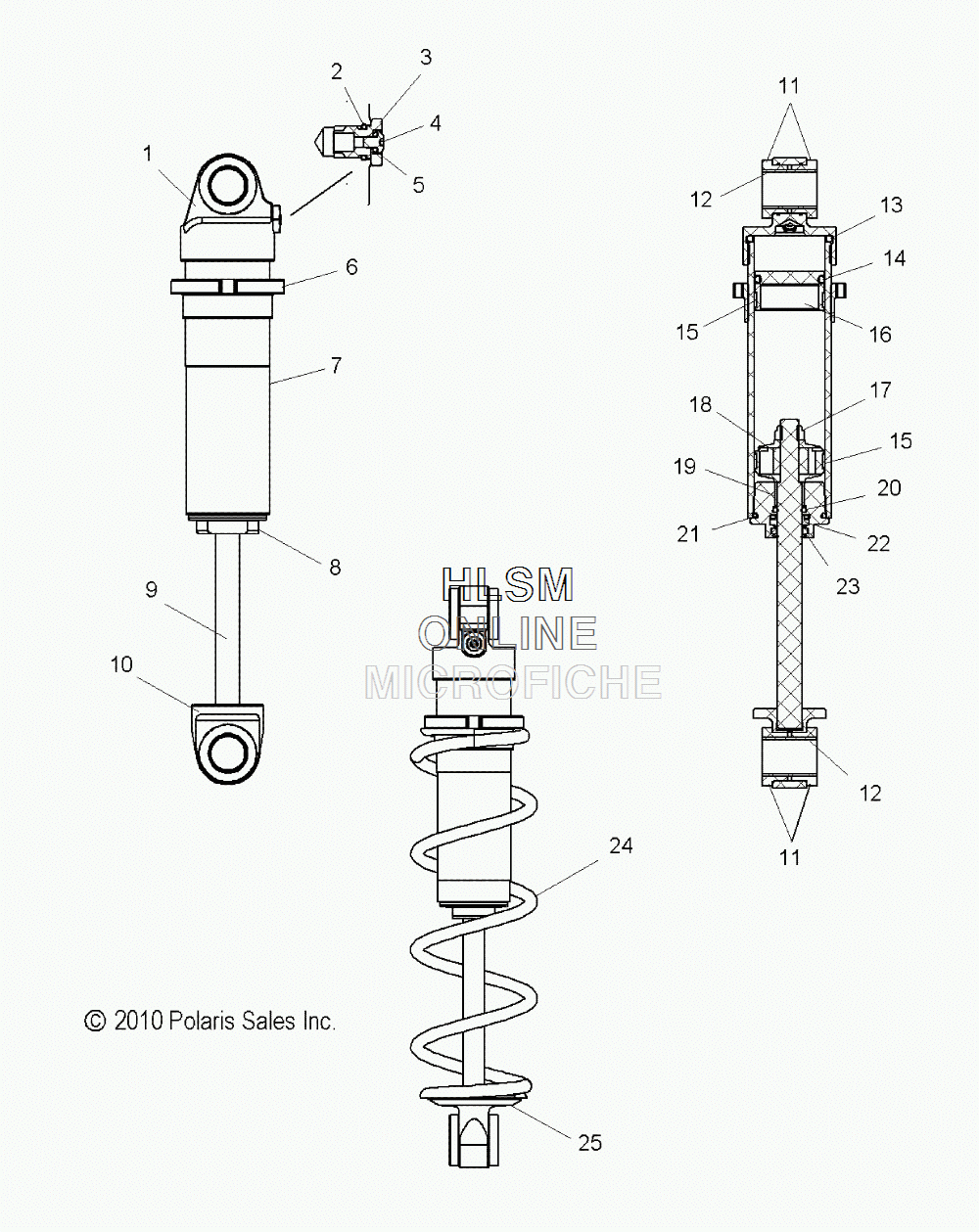

SUSPENSION - FRONT SHOCK TRACK (7043602) для Polaris 800 PRO RMK 163 LE [S14CH8LE] - 2014 года выпуска`
-
№АртикулНазвание
-
--7043602 SHOCK, WALKER EVANS, COIL-OVERSHOCK, WALKER EVANS, COIL-OVER
-
11800407 LOOP, BODYLOOP, BODY
-
21800215 O-RINGO-RING
-
31800329 NEEDLE VALVENEEDLE VALVE
-
41800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
51800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
61800046 RETAINER, SPRINGRETAINER, SPRING
-
71800409 BODYBODY
-
81800403 ASM., SEAL HEADASM., SEAL HEAD
-
91800350 SHAFTSHAFT
-
101800408 LOOP, SHAFTLOOP, SHAFT
-
111800406 BUSHINGBUSHING
-
121800405 SLEEVESLEEVE
-
131800030 O-RING, BODYO-RING, BODY
-
141800028 O-RING, RESERVOIRO-RING, RESERVOIR
-
151800297 WEAR BAND, TEFLONWEAR BAND, TEFLON
-
161800348 PISTON, RES. IFPPISTON, RES. IFP
-
171800031 NUT, CRIMPNUT, CRIMP
-
181800001 PISTONPISTON
-
191800292 BUSHING, SHAFTBUSHING, SHAFT
-
201800095 O-RINGO-RING
-
211800027 O-RING, BODYO-RING, BODY
-
221800294 SEAL, U-CUPSEAL, U-CUP
-
231800295 SEAL, WIPERSEAL, WIPER
-
247043678-133 SPRING, COMPRESSION, 150#, BRIGHT WHITESPRING, COMPRESSION, 150#, BRIGHT WHITE
-
251800116 RING, SPRING RETAINERRING, SPRING RETAINER
