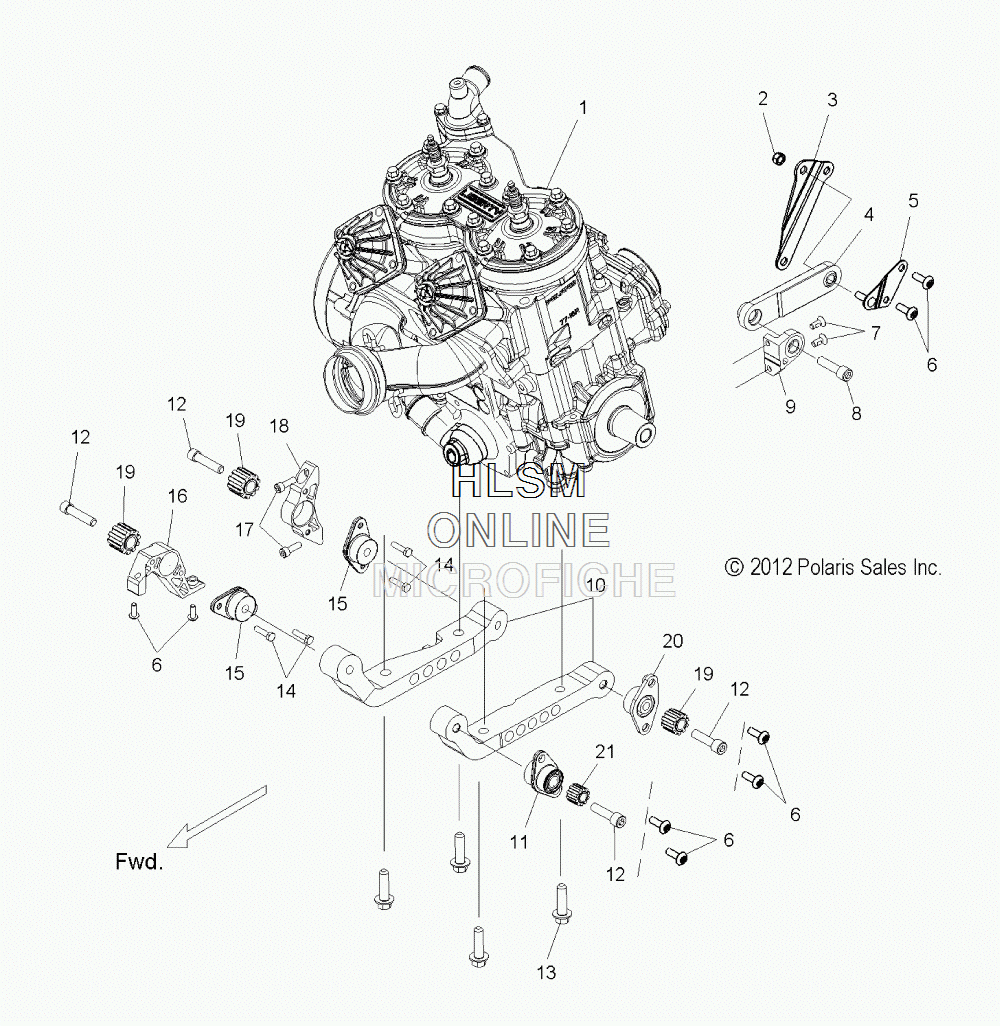

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 600 VOYAGER [S14CS6GSL] - 2014 года выпуска
-
№АртикулНазвание
-
12204667 KIT, SHORT BLOCK, 600LEKIT, SHORT BLOCK, 600LE
-
27547144 NUT, NYLOKNUT, NYLOK
-
31017131 LIMITER, TORQUE, INNERLIMITER, TORQUE, INNER
-
41017717 ASM., LINK, TORQUE, FIXEDASM., LINK, TORQUE, FIXED
-
51017118 ASM., BRACKET LINK W/STUDASM., BRACKET LINK W/STUD
-
67519070 SCREWSCREW
-
77519648 SCREWSCREW
-
87519119 SCREWSCREW
-
93022281 LIMITER, TORQUE, ENGINELIMITER, TORQUE, ENGINE
-
105137947 STRAP, ENGINE, LEFT HANDSTRAP, ENGINE, LEFT HAND
-
105137948 STRAP, ENGINE, RIGHT HANDSTRAP, ENGINE, RIGHT HAND
-
111019584 MOUNT, ENGINE W/CLINCH NUTMOUNT, ENGINE W/CLINCH NUT
-
127519334 SCREWSCREW
-
137518644 SCREWSCREW
-
147516823 SCREWSCREW
-
153022408 MOUNT, ENGINEMOUNT, ENGINE
-
161017778 ASM., ENGINE MOUNT, FRONT W/CLINCH NUTASM., ENGINE MOUNT, FRONT W/CLINCH NUT
-
177519010 SCREWSCREW
-
185137116 MOUNT, ENGINE, REARMOUNT, ENGINE, REAR
-
193022409 MOUNT, ENGINE INSERT RADMOUNT, ENGINE INSERT RAD
-
203022410 MOUNT, ENGINE, PTO, REARMOUNT, ENGINE, PTO, REAR
-
213022426 MOUNT, ENGINE, INSERT RADMOUNT, ENGINE, INSERT RAD
