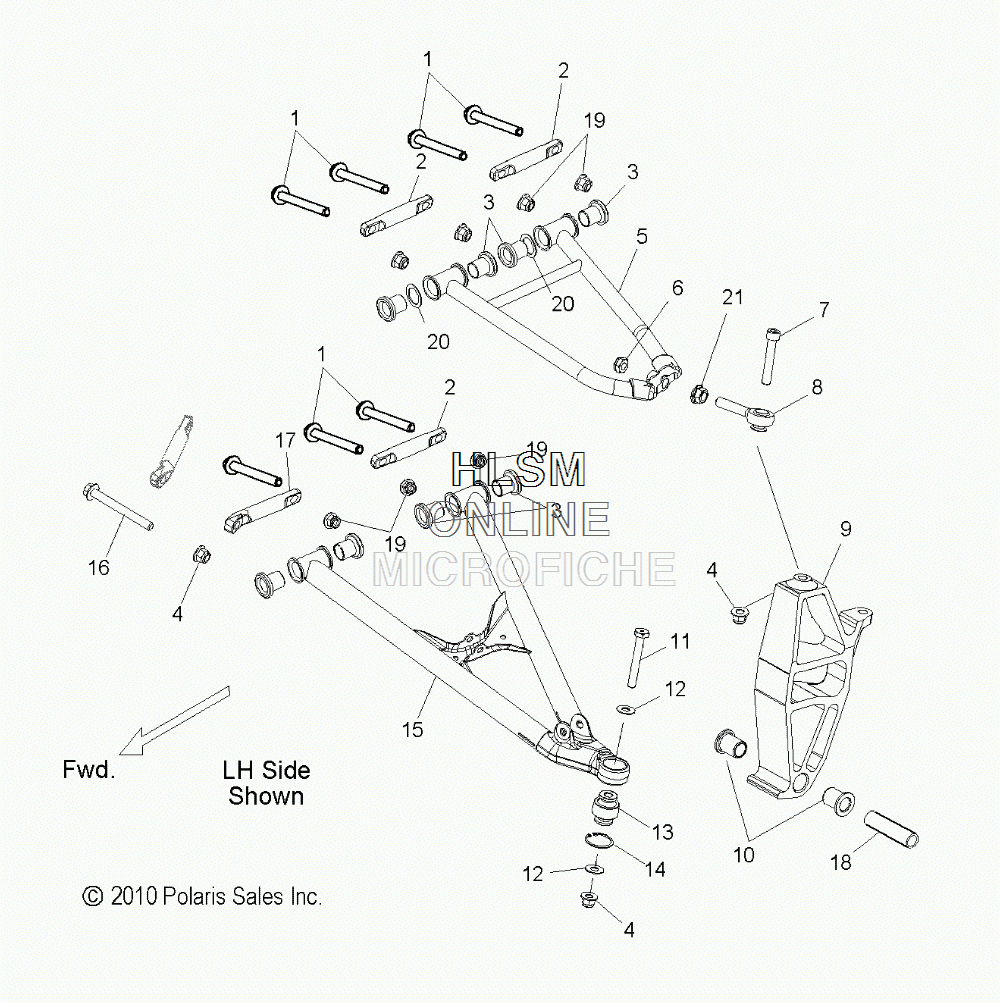

CONTROL ARMS W/SPINDLE для Polaris 600 VOYAGER INTL [S14CS6GSL] - 2014 года выпуска
-
№АртикулНазвание
-
17519204 STUD, WHEELSTUD, WHEEL
-
25137700 SHAFT, PIVOTSHAFT, PIVOT
-
35437539 BUSHING, PIVOTBUSHING, PIVOT
-
47547423 NUT, NYLOKNUT, NYLOK
-
52204930-067 KIT, UPPER CONTROL ARM, LEFT HAND, BLACKKIT, UPPER CONTROL ARM, LEFT HAND, BLACK
-
52204931-067 KIT, UPPER CONTROL ARM, RIGHT HAND, BLACKKIT, UPPER CONTROL ARM, RIGHT HAND, BLACK
-
67547490 NUT, FLANGENUT, FLANGE
-
77519246 SCREWSCREW
-
87061178 ROD ENDROD END
-
91823897 ASM., SPINDLE, LEFT HAND, METRIC (INCL. 10)ASM., SPINDLE, LEFT HAND, METRIC (INCL. 10)
-
91823898 ASM., SPINDLE, RIGHT HAND, METRIC (INCL. 10)ASM., SPINDLE, RIGHT HAND, METRIC (INCL. 10)
-
105438460 BUSHING, SKI PIVOTBUSHING, SKI PIVOT
-
117519015 SCREWSCREW
-
127556545 WASHERWASHER
-
132204229 KIT, SPHERICAL BEARING, LOWERKIT, SPHERICAL BEARING, LOWER
-
147710539 RING, RETAININGRING, RETAINING
-
152204422-067 KIT, LOWER CONTROL ARM, LEFT HAND, BLACKKIT, LOWER CONTROL ARM, LEFT HAND, BLACK
-
152204423-067 KIT, LOWER CONTROL ARM, RIGHT HAND, BLACKKIT, LOWER CONTROL ARM, RIGHT HAND, BLACK
-
167518917 SCREWSCREW
-
175137701 SHAFT, PIVOT, LOWER CONTROL ARM, FRONTSHAFT, PIVOT, LOWER CONTROL ARM, FRONT
-
185136910 BUSHINGBUSHING
-
197547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
207571605 WASHER, SPRINGWASHER, SPRING
-
217547490 NUTNUT
