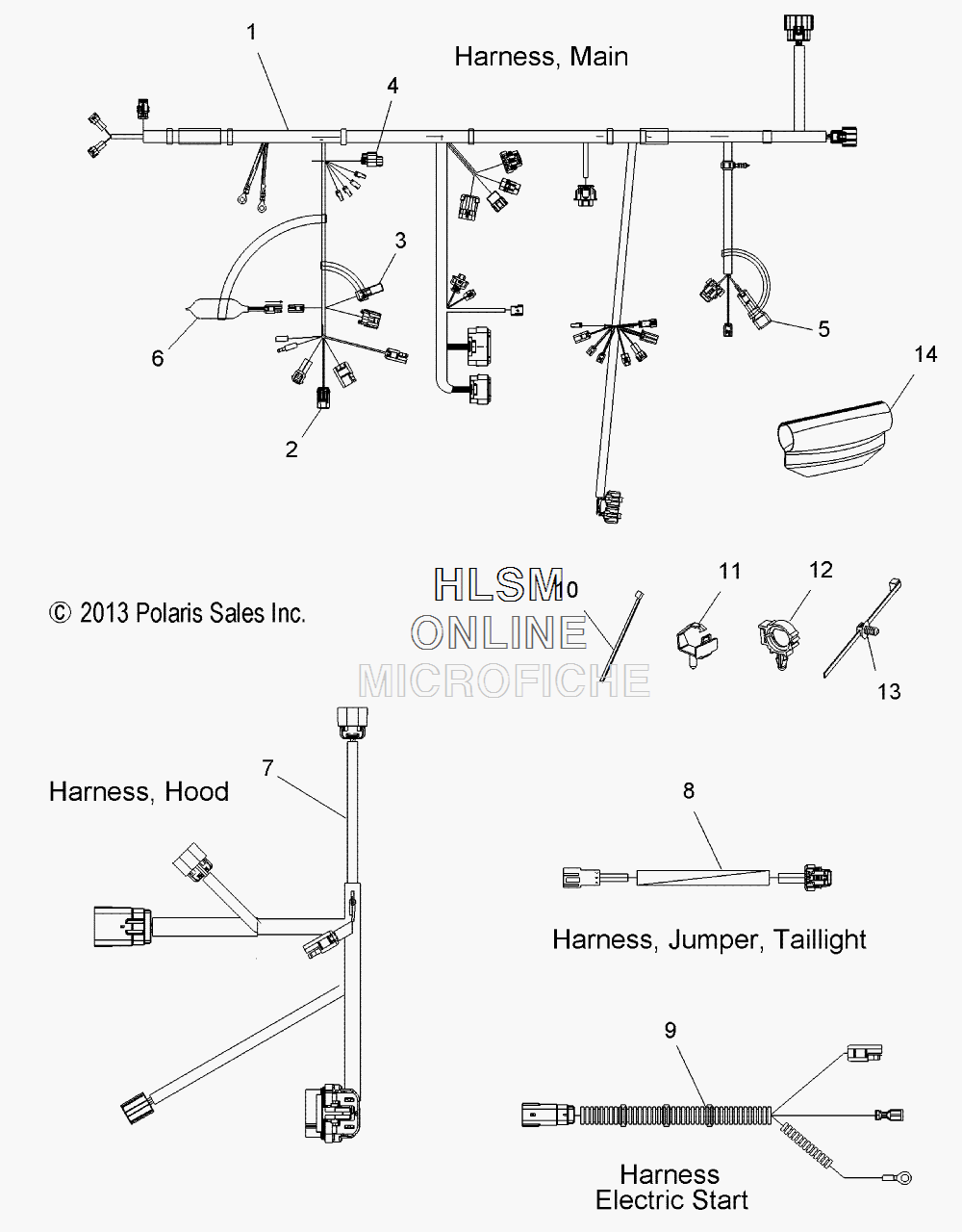

ELECTRICAL - WIRE HARNESS для Polaris 600 SWITCHBACK [S14BR6GSA] - 2014 года выпуска`
-
№АртикулНазвание
-
12412389 HARNESS, MAIN, LE, STD.HARNESS, MAIN, LE, STD.
-
24012260 COVER, FUSEHOLDERCOVER, FUSEHOLDER
-
24010752 FUSE, 2 AMP.FUSE, 2 AMP.
-
34011998 RELAY, MICRO SPDTRELAY, MICRO SPDT
-
44012654 COVER, DIAGNOSTICCOVER, DIAGNOSTIC
-
54011441 CAPACITOR, FILTERCAPACITOR, FILTER
-
64013412 CAPACITOR, 22,000 MICRO FCAPACITOR, 22,000 MICRO F
-
72411861 HARNESS, HOODHARNESS, HOOD
-
82411537 HARNESS, JUMPER, TAILLIGHT, SHORTHARNESS, JUMPER, TAILLIGHT, SHORT
-
92411513 HARNESS, ELECTRIC START, DC-SDIHARNESS, ELECTRIC START, DC-SDI
-
107080138 CABLE TIECABLE TIE
-
124020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
137081496 CLIP, ROUTINGCLIP, ROUTING
-
142685075 COVER, HARNESSCOVER, HARNESS
-
142685344 COVER, HARNESS, LARGECOVER, HARNESS, LARGE
