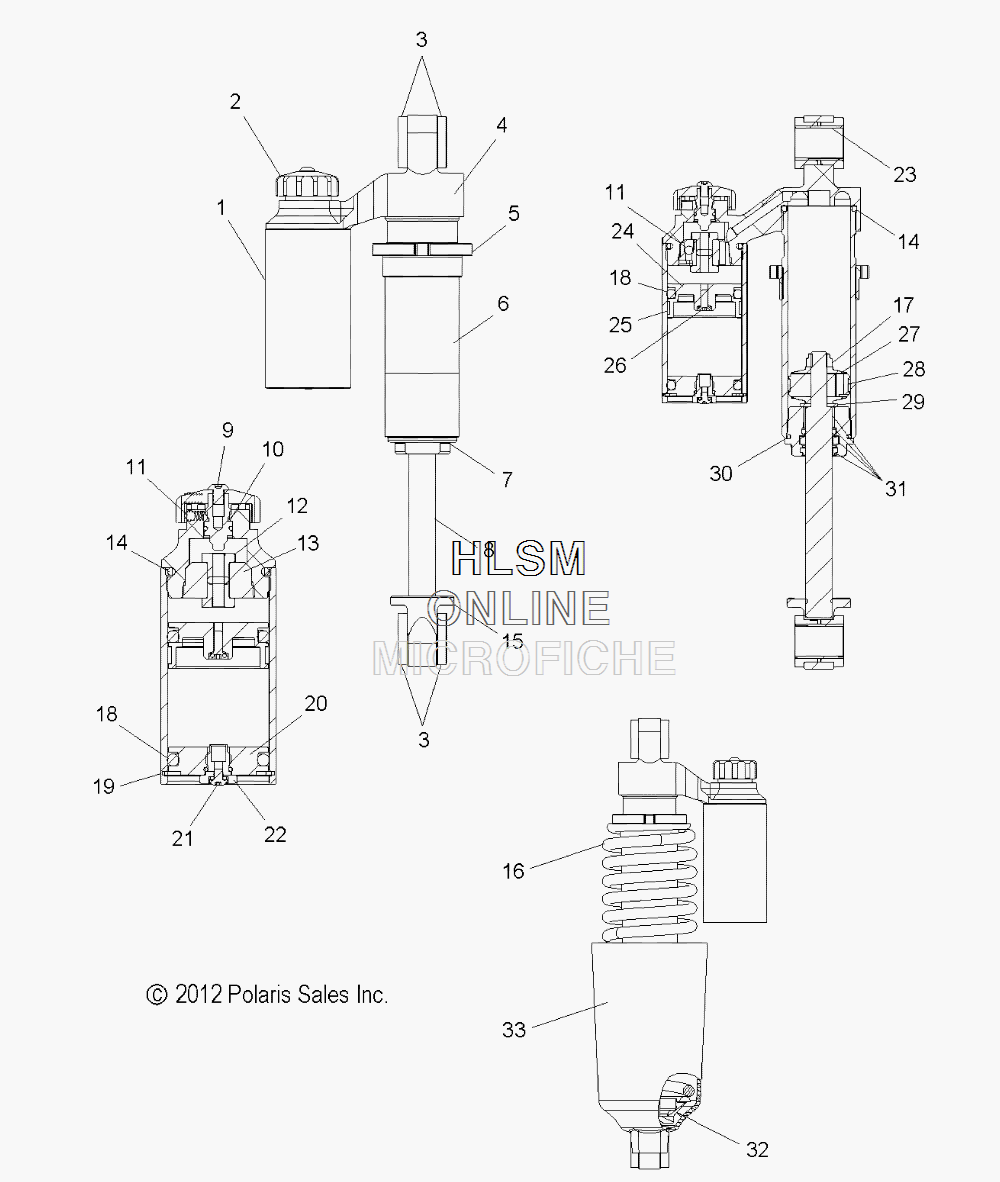

SUSPENSION - FRONT SHOCK TRACK для Polaris 600 SWITCHBACK PRO R [S14BS6GSA] - 2014 года выпуска

  • №
    Артикул
    Название
  • --
    7043828 SHOCK, FRONT TRACK, WALKER EVANS
    SHOCK, FRONT TRACK, WALKER EVANS
  • 1
    1800419 BODY, RESERVOIR
    BODY, RESERVOIR
  • 2
    1800460 KNOB, CLICKER
    KNOB, CLICKER
  • 3
    1800406 BUSHING
    BUSHING
  • 4
    1800533 LOOP, PIGGYBACK
    LOOP, PIGGYBACK
  • 5
    1800046 RETAINER, SPRING
    RETAINER, SPRING
  • 6
    1800534 BODY, FT, BLACK
    BODY, FT, BLACK
  • 7
    1800414 ASM., SEAL HEAD
    ASM., SEAL HEAD
  • 8
    1800416 SHAFT
    SHAFT
  • 9
    1800357 SCREW
    SCREW
  • 10
    1800352 STUD, CLICKER
    STUD, CLICKER
  • 10
    1800215 O-RING, STUD
    O-RING, STUD
  • 11
    1800127 BALL, D-TENT
    BALL, D-TENT
  • 11
    1800128 SPRING, D-TENT
    SPRING, D-TENT
  • 12
    1800219 BOLT, CLICKER
    BOLT, CLICKER
  • 13
    1800217 PISTON, CLICKER
    PISTON, CLICKER
  • 14
    1800030 O-RING, BODY
    O-RING, BODY
  • 15
    1800415 LOOP, SHAFT
    LOOP, SHAFT
  • 16
    7043413-067 SPRING, FRONT TRACK, BLACK
    SPRING, FRONT TRACK, BLACK
  • 17
    1800031 NUT, CRIMP
    NUT, CRIMP
  • 18
    1800184 O-RING
    O-RING
  • 19
    1800159 RING, SNAP
    RING, SNAP
  • 20
    1800420 CAP, END, RESERVOIR
    CAP, END, RESERVOIR
  • 21
    1800109 SCREW, BUTTON HEAD
    SCREW, BUTTON HEAD
  • 21
    1800210 O-RING, BLEED SCREW
    O-RING, BLEED SCREW
  • 22
    1800329 VALVE, NEEDLE
    VALVE, NEEDLE
  • 22
    1800215 O-RING, STUD
    O-RING, STUD
  • 23
    1800405 SLEEVE
    SLEEVE
  • 24
    1800355 PISTON, RESERVOIR
    PISTON, RESERVOIR
  • 25
    1800185 BAND, PISTON
    BAND, PISTON
  • 26
    1800043 SCREW, BLEED
    SCREW, BLEED
  • 26
    1800210 O-RING, BLEED SCREW
    O-RING, BLEED SCREW
  • 27
    1800001 PISTON, CONVEX
    PISTON, CONVEX
  • 28
    1800297 BAND, WEAR
    BAND, WEAR
  • 29
    1800050 WASHER
    WASHER
  • 30
    1800027 O-RING, BODY
    O-RING, BODY
  • 31
    1800038 BUSHING, SHAFT
    BUSHING, SHAFT
  • 31
    1800037 O-RING, SHAFT SEAL HEAD
    O-RING, SHAFT SEAL HEAD
  • 31
    1800323 SEAL, U-CUP
    SEAL, U-CUP
  • 31
    1800322 WIPER, D-TYPE
    WIPER, D-TYPE
  • 32
    5020618 RETAINER, SPRING, SLOTTED
    RETAINER, SPRING, SLOTTED
  • 33
    5437525 SHIELD, SPRING
    SHIELD, SPRING
