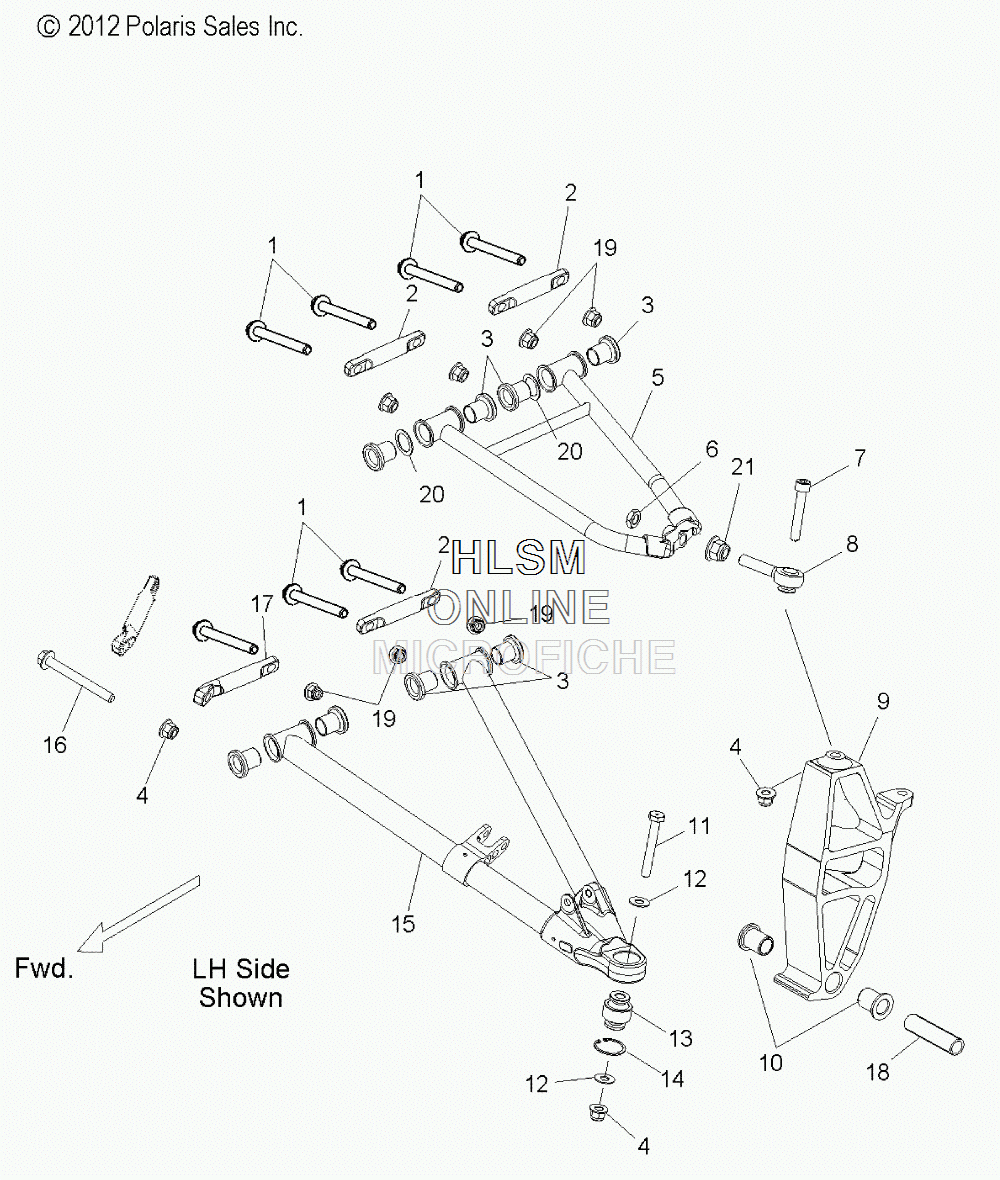

CONTROL ARMS W/SPINDLE для Polaris 600 PRO RMK 155 [S14CG6GSA] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    7519204 STUD, WHEEL
    STUD, WHEEL
  • 2
    5137700 SHAFT, PIVOT
    SHAFT, PIVOT
  • 3
    5437539 BUSHING, PIVOT
    BUSHING, PIVOT
  • 4
    7547423 NUT, NYLOK
    NUT, NYLOK
  • 5
    2204930-458 KIT, UPPER CONTROL ARM, LEFT HAND, MATTE BLACK (INCL. 2-4,6,8,20,21)
    KIT, UPPER CONTROL ARM, LEFT HAND, MATTE BLACK (INCL. 2-4,6,8,20,21)
  • 5
    2204931-458 KIT, UPPER CONTROL ARM, RIGHT HAND, MATTE BLACK (INCL. 2-4,6,8,20,21)
    KIT, UPPER CONTROL ARM, RIGHT HAND, MATTE BLACK (INCL. 2-4,6,8,20,21)
  • 6
    7547490 NUT, FLANGE
    NUT, FLANGE
  • 7
    7519246 SCREW
    SCREW
  • 8
    7061178 ROD END
    ROD END
  • 9
    1823897 ASM., SPINDLE, LEFT HAND, METRIC
    ASM., SPINDLE, LEFT HAND, METRIC
  • 9
    1823898 ASM., SPINDLE, RIGHT HAND, METRIC
    ASM., SPINDLE, RIGHT HAND, METRIC
  • 10
    5438460 BUSHING, SKI PIVOT
    BUSHING, SKI PIVOT
  • 11
    7519015 SCREW
    SCREW
  • 12
    7556545 WASHER
    WASHER
  • 13
    2204229 KIT, SPHERICAL BEARING, LOWER
    KIT, SPHERICAL BEARING, LOWER
  • 14
    7710539 RING, RETAINING
    RING, RETAINING
  • 15
    2205367-458 KIT, LOWER CONTROL ARM, LEFT HAND, MATTE BLACK (INCL. 2-4,13,14,17,19)
    KIT, LOWER CONTROL ARM, LEFT HAND, MATTE BLACK (INCL. 2-4,13,14,17,19)
  • 15
    2205368-458 KIT, LOWER CONTROL ARM, RIGHT HAND, MATTE BLACK (INCL. 2-4,13,14,17,19)
    KIT, LOWER CONTROL ARM, RIGHT HAND, MATTE BLACK (INCL. 2-4,13,14,17,19)
  • 16
    7518917 SCREW
    SCREW
  • 17
    5137701 SHAFT, PIVOT, LOWER CONTROL ARM, FRONT
    SHAFT, PIVOT, LOWER CONTROL ARM, FRONT
  • 18
    5136910 BUSHING
    BUSHING
  • 19
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 20
    7571605 WASHER, SPRING
    WASHER, SPRING
  • 21
    7547490 NUT
    NUT
