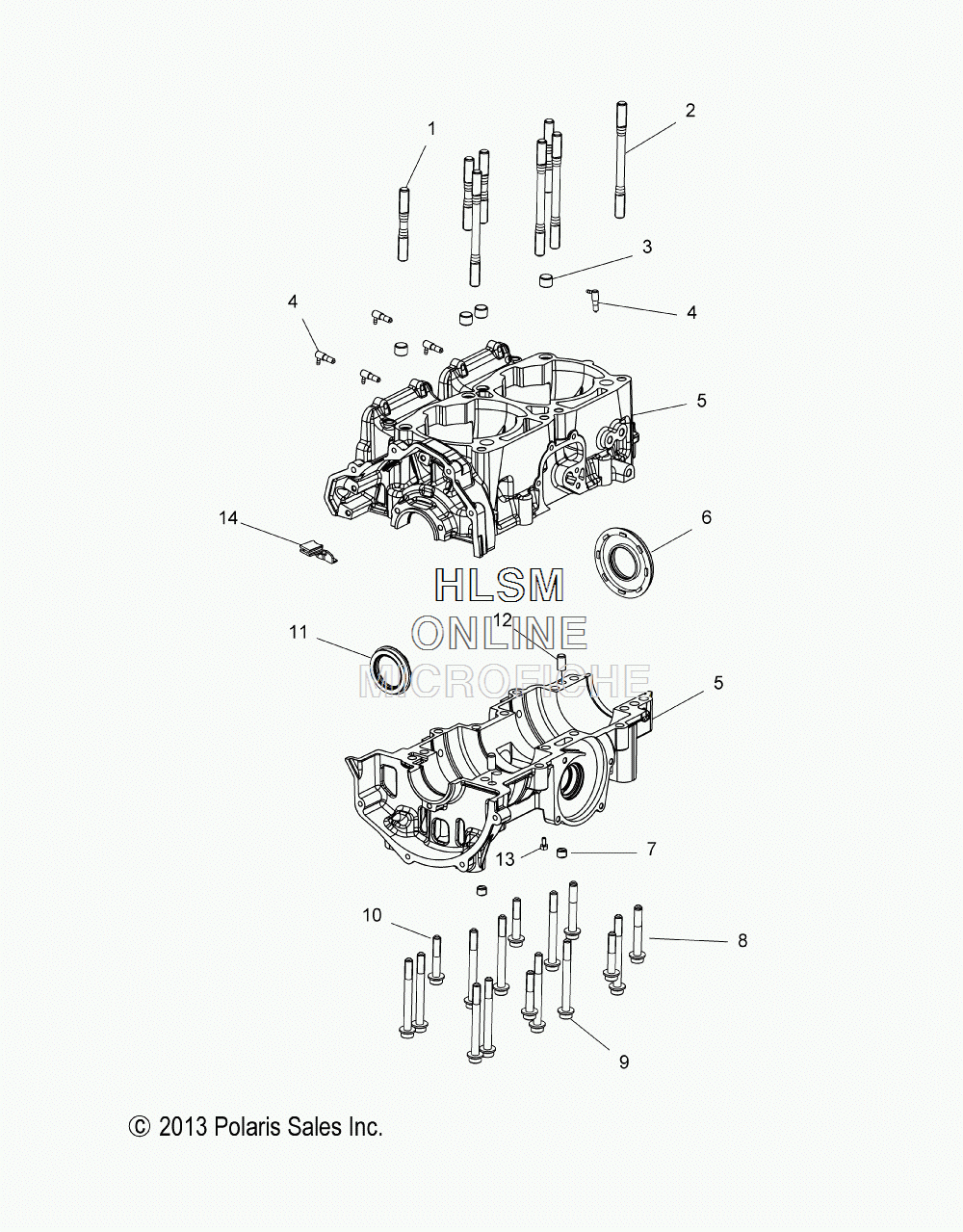

CRANKCASE ASSEMBLY для Polaris 600 PRO RMK 155 ES [S14CG6GSL] - 2014 года выпуска`
-
№АртикулНазвание
-
15135956 STUD, CYLINDERSTUD, CYLINDER
-
25135955 STUD, CYLINDERSTUD, CYLINDER
-
37663008 DOWEL, HOLLOWDOWEL, HOLLOW
-
47051020 VALVE, CHECKVALVE, CHECK
-
52205173 KIT, CRANKCASE (INCL. 1,2,4,7-10,12-14)KIT, CRANKCASE (INCL. 1,2,4,7-10,12-14)
-
65411394 SEAL, FLANGESEAL, FLANGE
-
77052337 PLUGPLUG
-
87517785 BOLTBOLT
-
97517784 BOLTBOLT
-
107517786 BOLTBOLT
-
115414096 SEAL, FLANGED, MAGSEAL, FLANGED, MAG
-
127663001 PIN, DOWELPIN, DOWEL
-
137517577 SCREWSCREW
-
145437349 RETAINER, WIRERETAINER, WIRE
