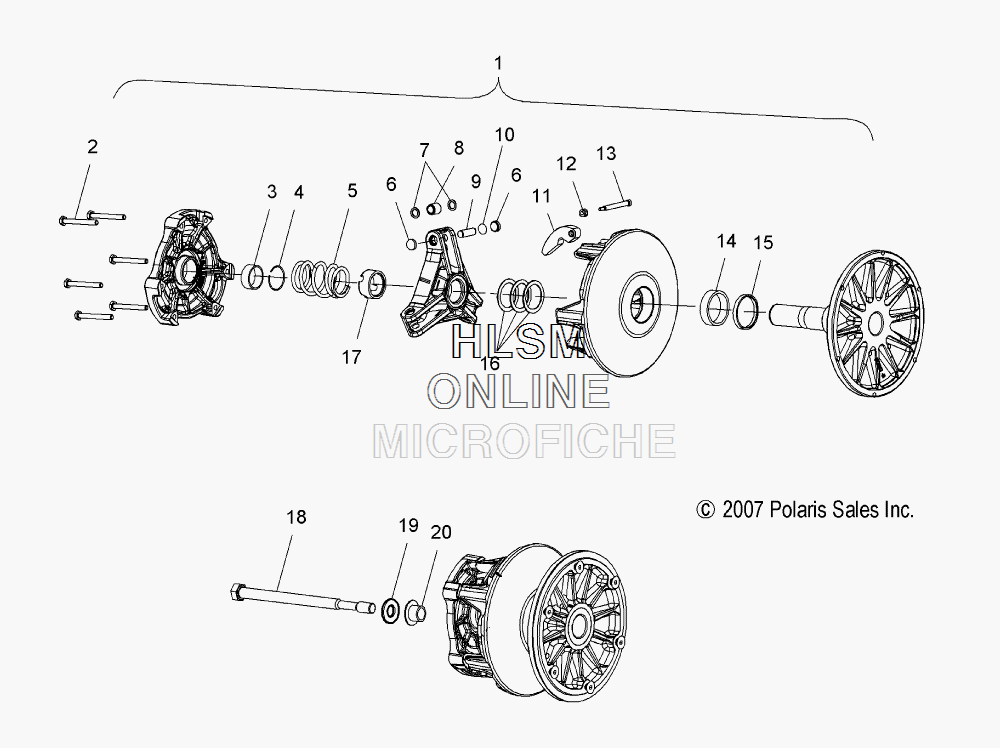

CLUTCH - PRIMARY для Polaris 600 IQ RACER [S14MX6JSA] - 2014 года выпуска`
-
№АртикулНазвание
-
11322746 ASM., DRIVE CLUTCH, BASIC, BT (INCL. ALL LESS 5,11,18-20)ASM., DRIVE CLUTCH, BASIC, BT (INCL. ALL LESS 5,11,18-20)
-
27518349 SCREW, FLANGESCREW, FLANGE
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING, COVERRING, RETAINING, COVER
-
57041988 SPRING, DRIVE CLUTCH, ALMOND/REDSPRING, DRIVE CLUTCH, ALMOND/RED
-
65430445 BUTTON, GUIDEBUTTON, GUIDE
-
75430945 WASHERWASHER
-
81321622 ASM., ROLLER AND BUSHINGASM., ROLLER AND BUSHING
-
95133079 PIN, ROLLERPIN, ROLLER
-
102200387 KIT, DRIVE CLUTCH SHIMKIT, DRIVE CLUTCH SHIM
-
111321588 ASM., WEIGHT/BUSHING, 10-58ASM., WEIGHT/BUSHING, 10-58
-
127541906 NUT, FLEXLOCNUT, FLEXLOC
-
137515105 PIN, HARDENED WEIGHTPIN, HARDENED WEIGHT
-
143576502 BEARING, SLEEVEBEARING, SLEEVE
-
155010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
165210754 SPACER, .050SPACER, .050
-
165210753 SPACER, .032SPACER, .032
-
165242981 SPACER, .025SPACER, .025
-
165210752 SPACER, .020SPACER, .020
-
175020425 NUT, JAMNUT, JAM
-
187518412 SCREWSCREW
-
197556003 WASHERWASHER
-
205132441 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
