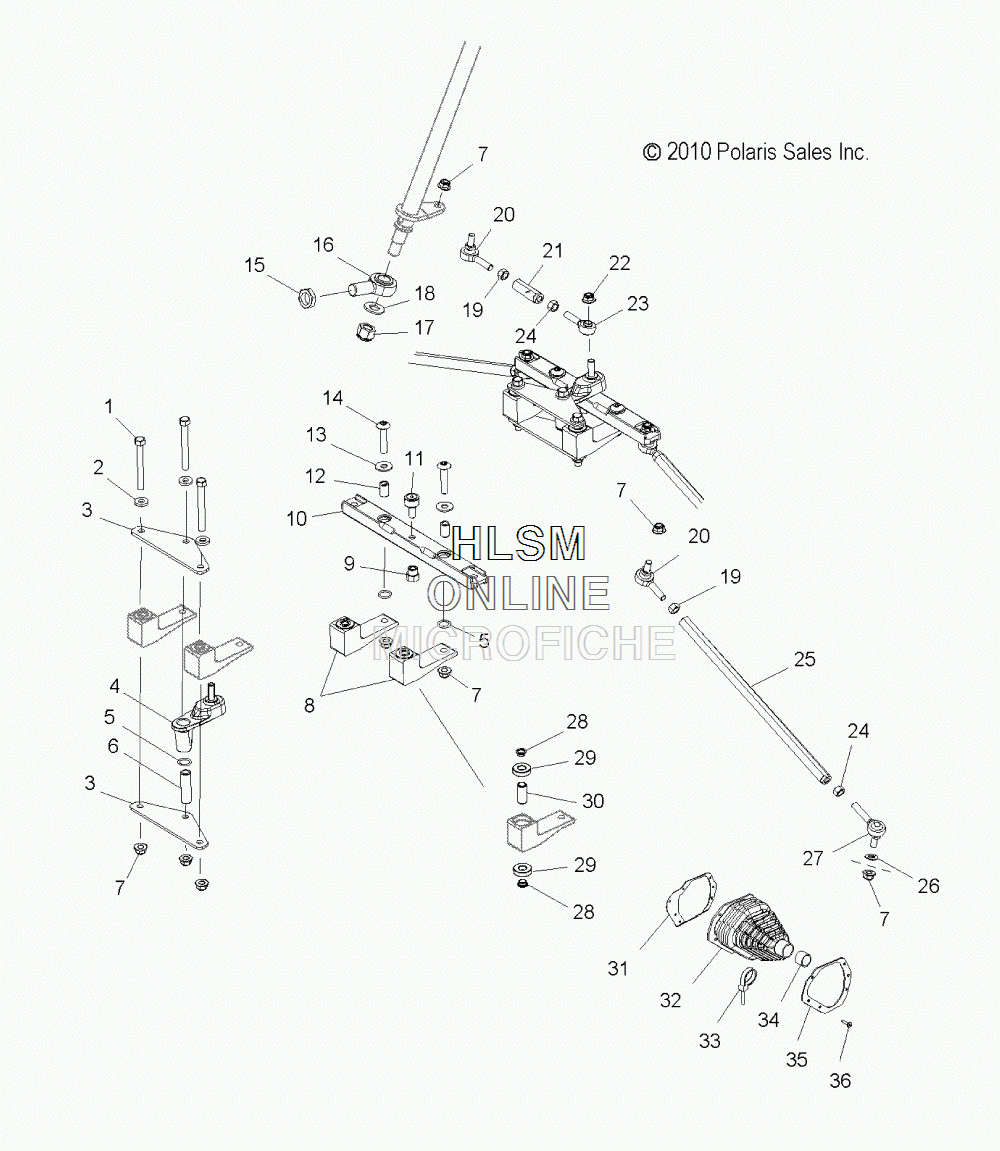

STEERING - LOWER W/TIE RODS для Polaris 600 IQ RACER INTL [S14MX6JEA] - 2014 года выпуска`
-
№АртикулНазвание
-
17515406 SCREWSCREW
-
27556160 WASHERWASHER
-
35251735 MOUNT, PLATE, PROGRESSIVE ARMMOUNT, PLATE, PROGRESSIVE ARM
-
41823494 ASM., CENTER IDLER (INCL. BUSHINGS)ASM., CENTER IDLER (INCL. BUSHINGS)
-
55411220 O-RINGO-RING
-
65335474 BUSHING, IDLER, CENTER PIVOTBUSHING, IDLER, CENTER PIVOT
-
77547263 NUT, FLANGENUT, FLANGE
-
81823545 ASM., IDLER, STEERING (INCL. 28-30)ASM., IDLER, STEERING (INCL. 28-30)
-
97547412 NUT, SPACERNUT, SPACER
-
101823347 ASM., RACK, STEERING (INCL. BUSHINGS)ASM., RACK, STEERING (INCL. BUSHINGS)
-
113514632 ASM., BEARING W/STUDASM., BEARING W/STUD
-
125134692 PIVOT, RACK, STEERINGPIVOT, RACK, STEERING
-
137555893 WASHER, FLATWASHER, FLAT
-
147518464 SCREWSCREW
-
157547292 NUT, JAMNUT, JAM
-
161822738 ASM., ROD END W/BUSHING, STEERING POSTASM., ROD END W/BUSHING, STEERING POST
-
177547291 NUT, NYLOKNUT, NYLOK
-
187555877 WASHER, THRUSTWASHER, THRUST
-
197542401 NUT, RIGHT HANDNUT, RIGHT HAND
-
207061136 ROD END, RIGHT HANDROD END, RIGHT HAND
-
215137579 ROD, DRAG LINKROD, DRAG LINK
-
227542411 NUT, FLEXLOC, THINNUT, FLEXLOC, THIN
-
237061083 ROD END, LEFT HANDROD END, LEFT HAND
-
247542424 NUT, LEFT HANDNUT, LEFT HAND
-
255135746 TIE RODTIE ROD
-
267555806 WASHER, FLATWASHER, FLAT
-
277061063 ROD END, LEFT HANDROD END, LEFT HAND
-
285132106 BUSHING, REDUCERBUSHING, REDUCER
-
293514320 BEARING, BALLBEARING, BALL
-
305136298 SPACER, TUBESPACER, TUBE
-
315249641 COVER, TIE ROD BOOT, LEFT HANDCOVER, TIE ROD BOOT, LEFT HAND
-
315249642 COVER, TIE ROD BOOT, RIGHT HANDCOVER, TIE ROD BOOT, RIGHT HAND
-
325412744 BOOT, TIE ROD, LEFT HANDBOOT, TIE ROD, LEFT HAND
-
325412745 BOOT, TIE ROD, RIGHT HANDBOOT, TIE ROD, RIGHT HAND
-
337080138 CABLE TIECABLE TIE
-
345436174 BUSHING, TIE ROD BOOTBUSHING, TIE ROD BOOT
-
355249226 PLATE, TIE ROD BOOT, LEFT HANDPLATE, TIE ROD BOOT, LEFT HAND
-
355249227 PLATE, TIE ROD BOOT, RIGHT HANDPLATE, TIE ROD BOOT, RIGHT HAND
-
367518284 SCREWSCREW
