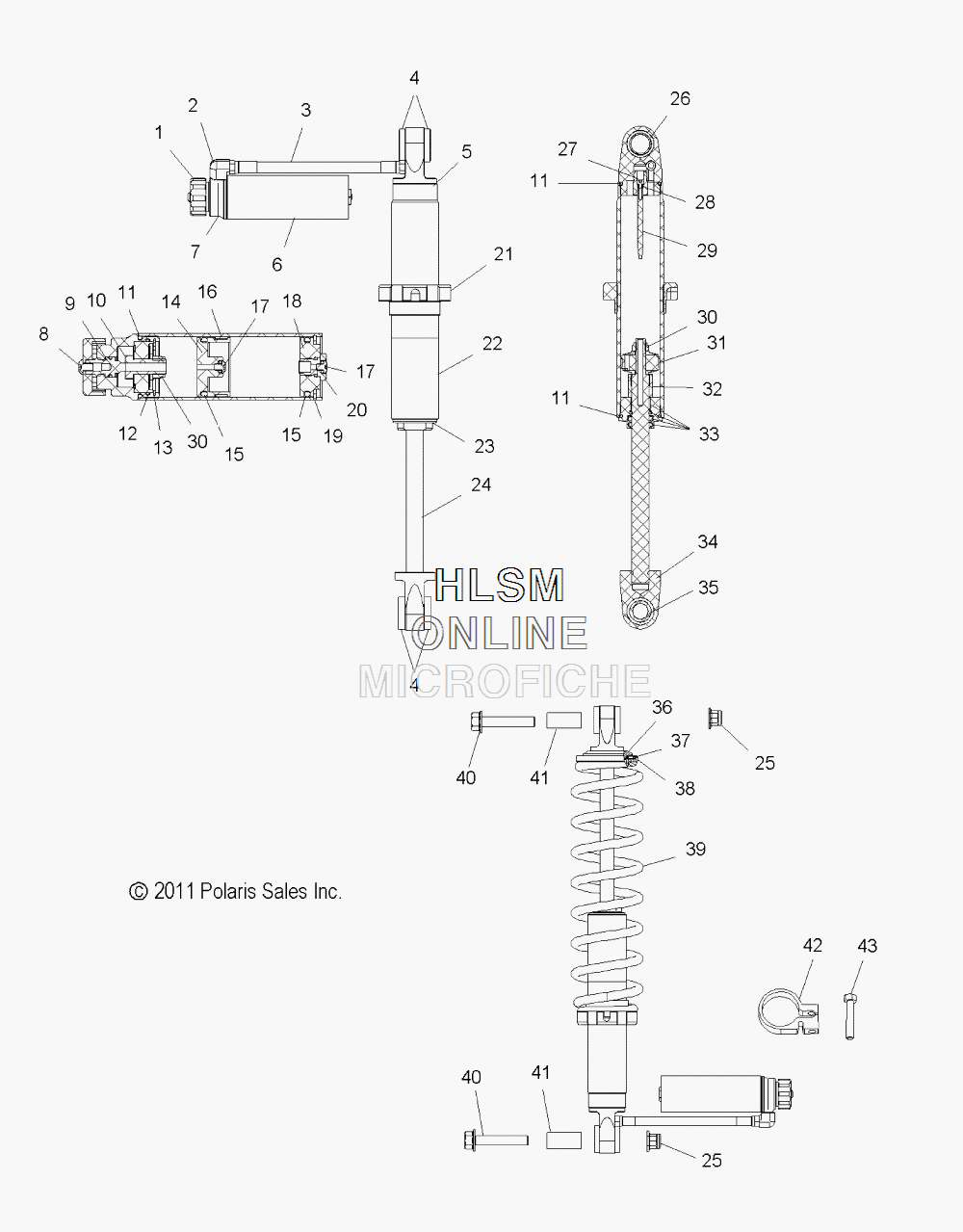

SUSPENSION - REAR SHOCK TRACK для Polaris 800 SWITCHBACK PRO-R ALL OPTIONS [S13BA8] - 2013 года выпуска`
-
№АртикулНазвание
-
7041575-133 SPRING, COMPRESSION, 120#, WHITE (OPT)SPRING, COMPRESSION, 120#, WHITE (OPT)
-
7043723 SHOCK, REAR TRACKSHOCK, REAR TRACK
-
11800418 KNOB, CLICKER (BLACK)KNOB, CLICKER (BLACK)
-
21800205 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
31800432 HOSE, 12 INCHHOSE, 12 INCH
-
41800406 BUSHINGBUSHING
-
51800431 LOOP, BODYLOOP, BODY
-
61800429 RESERVOIRRESERVOIR
-
71800375 HOUSING, ADJUSTERHOUSING, ADJUSTER
-
81800357 SCREW, BUTTONHEADSCREW, BUTTONHEAD
-
91800352 STUD, CLICKERSTUD, CLICKER
-
101800354 BOLT, CLICKERBOLT, CLICKER
-
111800030 O-RING, BODYO-RING, BODY
-
121800358 O-RING, CLICKER HOUSINGO-RING, CLICKER HOUSING
-
131800359 RING, SNAP, CLICKERRING, SNAP, CLICKER
-
141800281 PISTON, RESERVOIRPISTON, RESERVOIR
-
151800028 O-RING, RESERVOIRO-RING, RESERVOIR
-
161800297 BAND, WEARBAND, WEAR
-
171800043 SCREW, BLEEDSCREW, BLEED
-
181800430 CAP, END, RESERVOIRCAP, END, RESERVOIR
-
191800019 RING, SNAP, RESERVOIRRING, SNAP, RESERVOIR
-
201800329 VALVE, NEEDLEVALVE, NEEDLE
-
211800372 NUT, SPRING LOCKNUT, SPRING LOCK
-
221800427 BODYBODY
-
231800414 ASM., SEAL HEADASM., SEAL HEAD
-
241800428 SHAFT, NEEDLESHAFT, NEEDLE
-
257547423 NUT, NYLOKNUT, NYLOK
-
261800405 SLEEVESLEEVE
-
271800302 BOLT, NEEDLEBOLT, NEEDLE
-
281800074 SCREW, BLEED W/O-RINGSCREW, BLEED W/O-RING
-
291800300 NEEDLENEEDLE
-
301800031 NUT, CRIMPNUT, CRIMP
-
311800001 PISTON, CONVEXPISTON, CONVEX
-
311800297 BAND, WEARBAND, WEAR
-
321800377 SPACER, SHAFTSPACER, SHAFT
-
331800038 BUSHING, SHAFTBUSHING, SHAFT
-
331800037 O-RING, SHAFT SEAL HEADO-RING, SHAFT SEAL HEAD
-
331800323 SEAL, U-CUPSEAL, U-CUP
-
331800322 WIPER, D-TYPEWIPER, D-TYPE
-
341800426 LOOP, SHAFTLOOP, SHAFT
-
351800032 SLEEVESLEEVE
-
365137540 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
373514706 BEARING, THRUSTBEARING, THRUST
-
385137541 RETAINER, THRUST BEARINGRETAINER, THRUST BEARING
-
397041575-133 SPRING, COMPRESSION, 120# (WHITE) (OPT)SPRING, COMPRESSION, 120# (WHITE) (OPT)
-
397043160-133 SPRING, COMPRESSION, 150# (WHITE) (STD)SPRING, COMPRESSION, 150# (WHITE) (STD)
-
397043195-133 SPRING, COMPRESSION, 170# (WHITE) (OPT)SPRING, COMPRESSION, 170# (WHITE) (OPT)
-
397043162-067 SPRING, COMPRESSION, 200# (BLACK) (OPT)SPRING, COMPRESSION, 200# (BLACK) (OPT)
-
397043585-133 SPRING, COMPRESSION, 260# (WHITE) (OPT)SPRING, COMPRESSION, 260# (WHITE) (OPT)
-
407519132 SCREWSCREW
-
415335718 SLEEVESLEEVE
-
425132832 CLAMP, RESERVOIRCLAMP, RESERVOIR
-
437519267 SCREWSCREW
