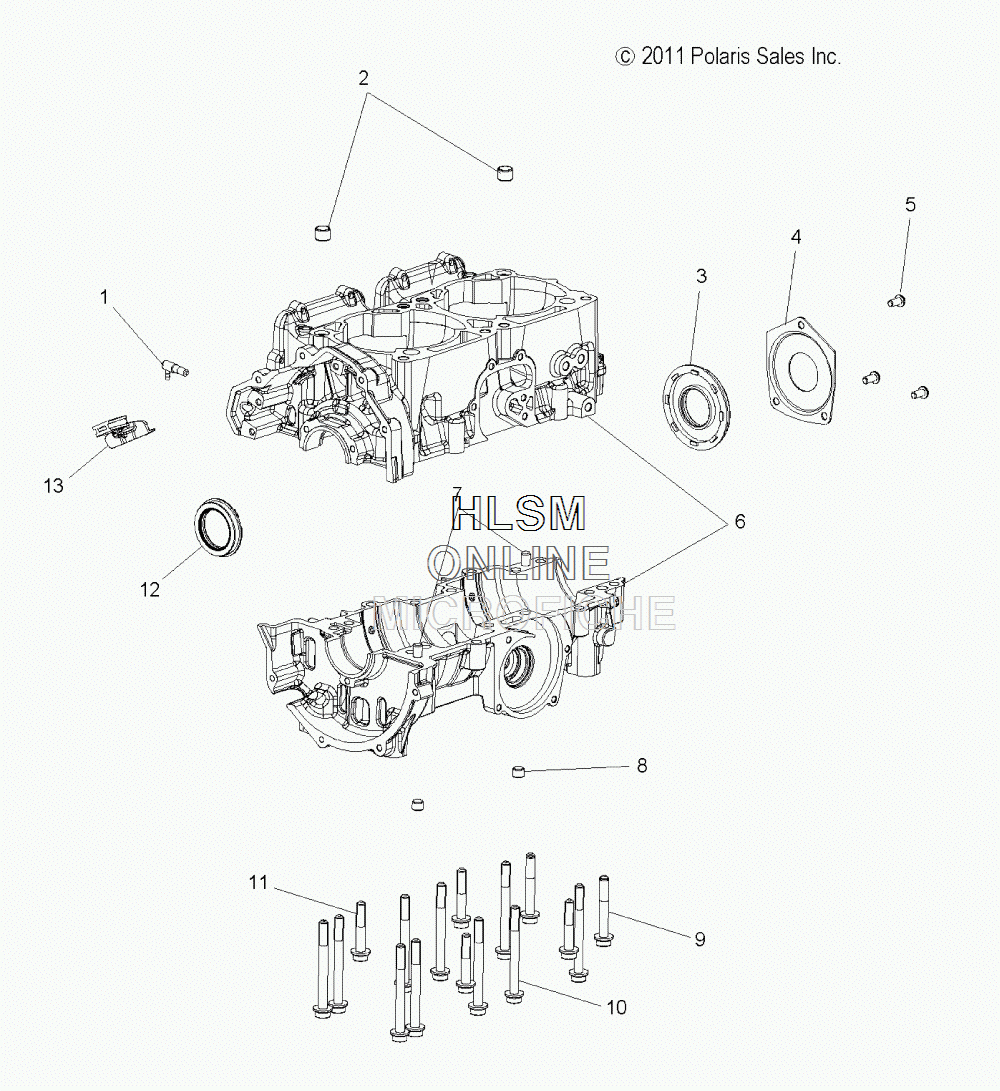

CRANKCASE ASSEMBLY для Polaris 800 SWITCHBACK ASSAULT ALL OPTIONS [S13CL8] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    7051020 VALVE, CHECK
    VALVE, CHECK
  • 2
    7663008 DOWEL, HOLLOW
    DOWEL, HOLLOW
  • 3
    5411394 SEAL, FLANGED
    SEAL, FLANGED
  • 4
    5251374 GUARD, CRANK SEAL
    GUARD, CRANK SEAL
  • 5
    7519063 SCREW
    SCREW
  • 6
    2204902 KIT, CRANKCASE (INCL. 2,7-11)
    KIT, CRANKCASE (INCL. 2,7-11)
  • 7
    7663001 PIN, DOWEL
    PIN, DOWEL
  • 8
    7052337 PLUG
    PLUG
  • 9
    7517785 BOLT, 55MM
    BOLT, 55MM
  • 10
    7517784 BOLT, 80MM
    BOLT, 80MM
  • 11
    7517786 BOLT, 45MM
    BOLT, 45MM
  • 12
    5414096 SEAL, FLANGED
    SEAL, FLANGED
  • 13
    5437349 RETAINER, WIRE, V8 SDI
    RETAINER, WIRE, V8 SDI
