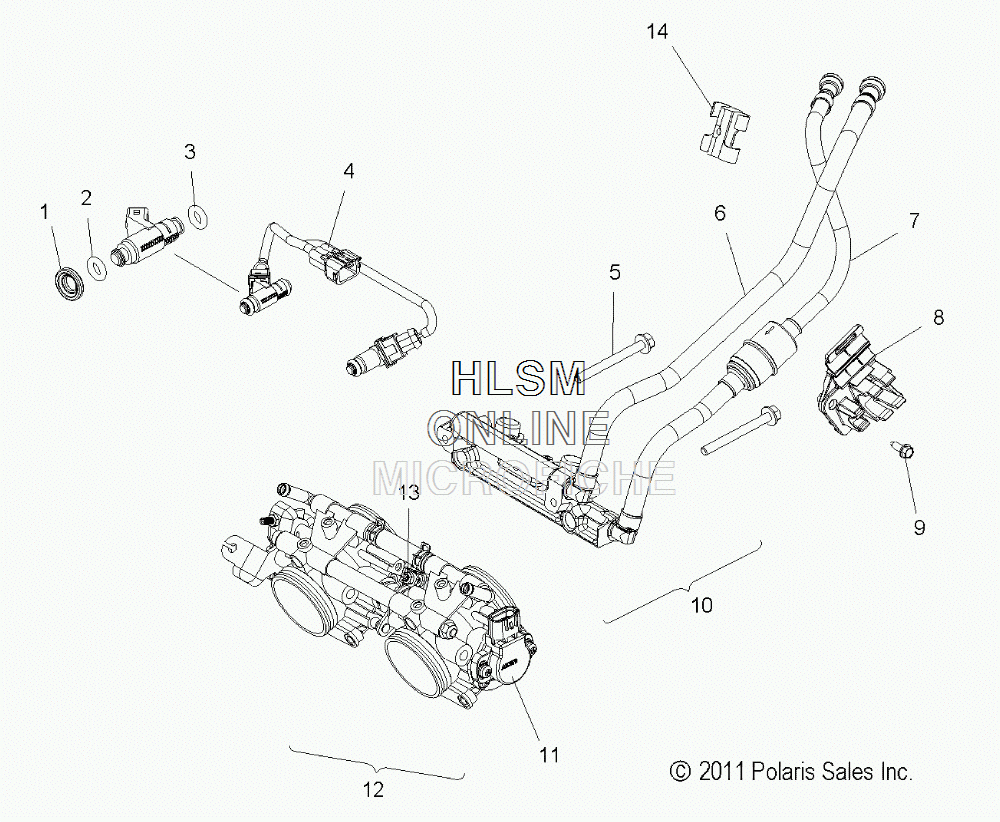

THROTTLE BODY ASSEMBLY W/RAIL AND LINES для Polaris 800 RUSH PRO-R ALL OPTIONS [S13BV8] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    5436287 BUSHING, RUBBER (GREEN) (1/INJECTOR)
    BUSHING, RUBBER (GREEN) (1/INJECTOR)
  • 2
    5412891 O-RING (BROWN) (1/INJECTOR)
    O-RING (BROWN) (1/INJECTOR)
  • 3
    1500198 O-RING (BLACK) (1/INJECTOR)
    O-RING (BLACK) (1/INJECTOR)
  • 4
    4013394 HARNESS W/INJ, DC-SDI (YELLOW)
    HARNESS W/INJ, DC-SDI (YELLOW)
  • 5
    7519244 SCREW
    SCREW
  • 6
    2521192 ASM., FUEL LINE, RETURN, RUSH
    ASM., FUEL LINE, RETURN, RUSH
  • 7
    2521193 ASM., FUEL LINE W/FILTER, RUSH
    ASM., FUEL LINE W/FILTER, RUSH
  • 8
    1204261 ASM., FUEL FILTER RETAINER
    ASM., FUEL FILTER RETAINER
  • 9
    7512095 SCREW
    SCREW
  • 10
    2521143 ASM., FUEL RAIL (INCL. FUEL RAIL, CLAMPS, DAMPERS)
    ASM., FUEL RAIL (INCL. FUEL RAIL, CLAMPS, DAMPERS)
  • 10
    2521144 DAMPER, FUEL
    DAMPER, FUEL
  • 10
    5254413 CLAMP, DAMPER
    CLAMP, DAMPER
  • 10
    5254414 CLIP, HOSE
    CLIP, HOSE
  • 10
    7519250 SCREW
    SCREW
  • 12
    1204570 ASM., THROTTLE BODY, 800LE (INCL. 11)
    ASM., THROTTLE BODY, 800LE (INCL. 11)
  • 13
    3131731 SCREW
    SCREW
  • 13
    3131732 NUT
    NUT
  • 14
    7080482 T-CLIP
    T-CLIP
