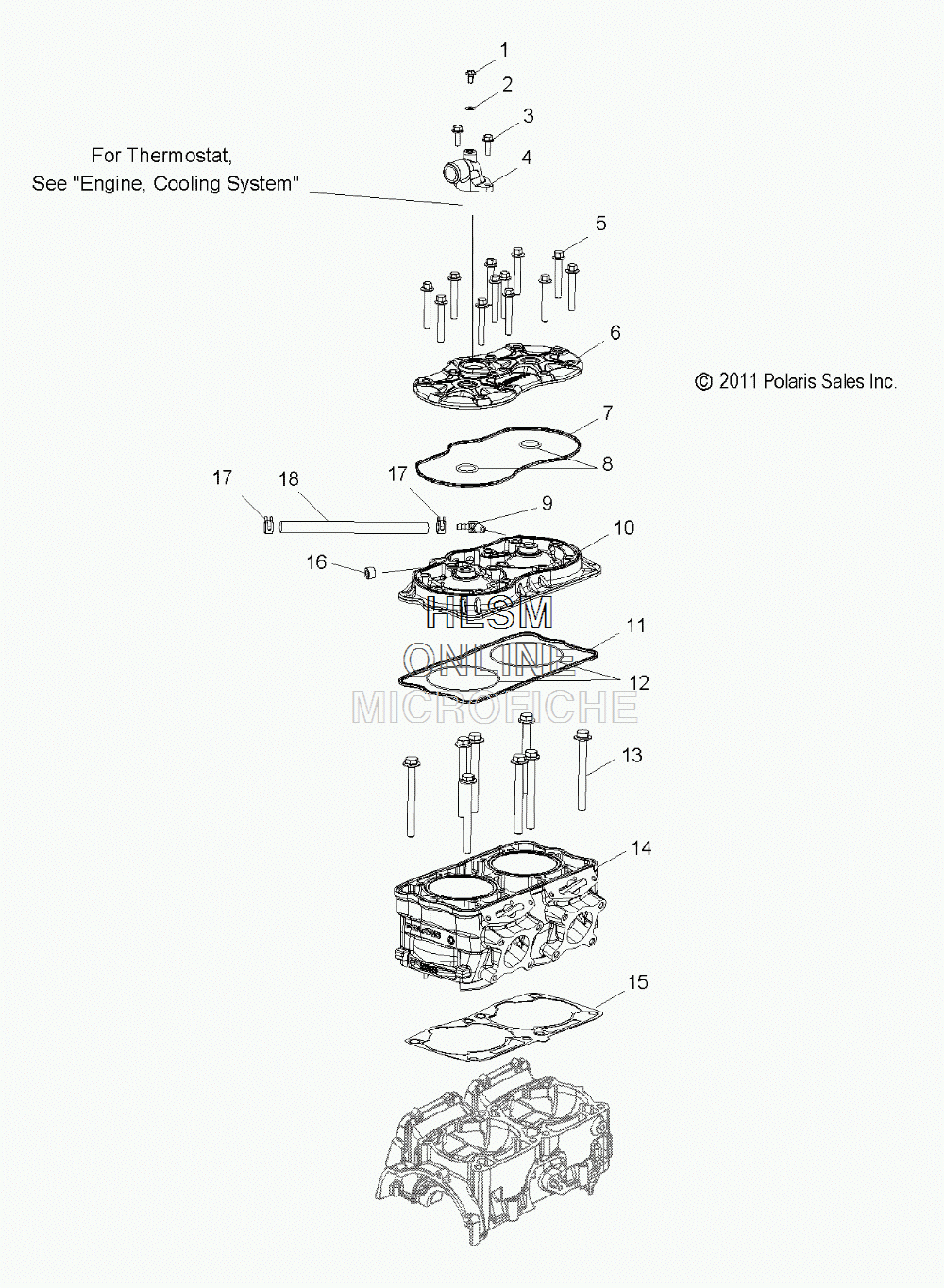

CYLINDER ASSEMBLY для Polaris 800 PRO RMK 155 ALL OPTIONS [S13CG8] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    7517679 SCREW
    SCREW
  • 2
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 3
    7516822 SCREW
    SCREW
  • 4
    5137850 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 5
    7517533 SCREW
    SCREW
  • 6
    5136071 COVER, HEAD
    COVER, HEAD
  • 7
    5413230 SEAL, GLAND HEAD
    SEAL, GLAND HEAD
  • 8
    5411411 O-RING
    O-RING
  • 9
    7052515 FITTING, 90 DEGREE
    FITTING, 90 DEGREE
  • 10
    3022214 HEAD, CYLINDER
    HEAD, CYLINDER
  • 11
    5413288 SEAL, GLAND CYLINDER
    SEAL, GLAND CYLINDER
  • 12
    5413319 O-RING
    O-RING
  • 13
    7518774 SCREW
    SCREW
  • 14
    3022449 CYLINDER, SDI MONO, OFFSET
    CYLINDER, SDI MONO, OFFSET
  • 15
    5813826 GASKET, CYLINDER BASE
    GASKET, CYLINDER BASE
  • 16
    7052413 PLUG
    PLUG
  • 17
    7081432 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    5414016 HOSE, COOLANT, THROTTLE BODY
    HOSE, COOLANT, THROTTLE BODY
