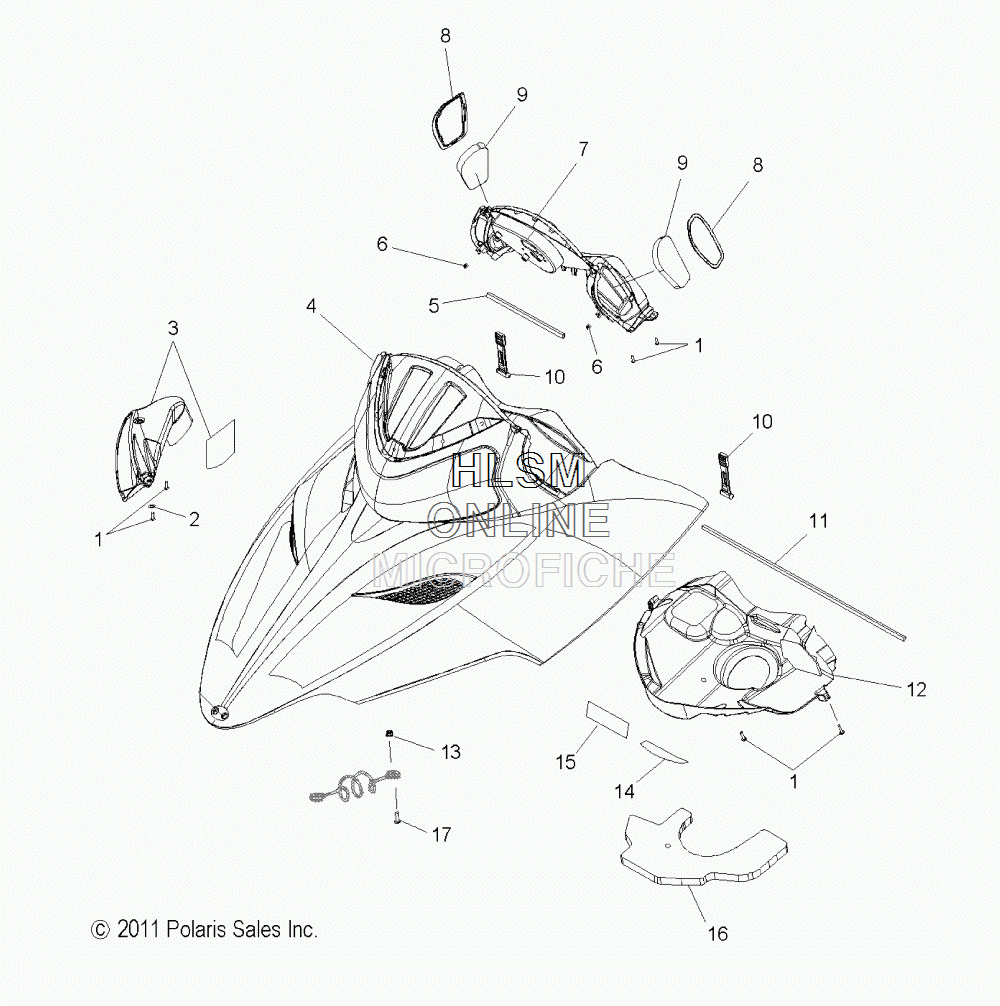

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 600 WIDETRAK IQ [S13PU6NSL] - 2013 года выпуска`
-
№АртикулНазвание
-
17518577 SCREWSCREW
-
27571602 WASHERWASHER
-
32634043 ASM., BRAKE DUCT (INCL. FOIL)ASM., BRAKE DUCT (INCL. FOIL)
-
35812758 FOILFOIL
-
42633966-620 ASM., HOOD (BLUE FIRE METALLIC) (INCL. FOAM/FOIL)ASM., HOOD (BLUE FIRE METALLIC) (INCL. FOAM/FOIL)
-
55521697-350 SEAL, BULB, 350 CMSEAL, BULB, 350 CM
-
67670112 NUT, U-TYPENUT, U-TYPE
-
75437049-070 POD, INSTRUMENT (BLACK)POD, INSTRUMENT (BLACK)
-
85437372 VENT, INTAKE, RIGHT HANDVENT, INTAKE, RIGHT HAND
-
85437371 VENT, INTAKE, LEFT HANDVENT, INTAKE, LEFT HAND
-
95813248 FOAM, FILTER, INLETFOAM, FILTER, INLET
-
105433150 STRAPSTRAP
-
115812782 SEAL-FOAM, 35 IN.SEAL-FOAM, 35 IN.
-
122633899 ASM., HEADLIGHT ACCESS COVER (INCL. 11,14-16)ASM., HEADLIGHT ACCESS COVER (INCL. 11,14-16)
-
137518287 NUTNUT
-
145812937 FOIL, HEADLIGHT ACCESS COVER, #1FOIL, HEADLIGHT ACCESS COVER, #1
-
155812938 FOIL, HEADLIGHT ACCESS COVER, #2FOIL, HEADLIGHT ACCESS COVER, #2
-
165813542 FOAM, HEADLIGHT ACCESS COVERFOAM, HEADLIGHT ACCESS COVER
-
177518281 SCREWSCREW
