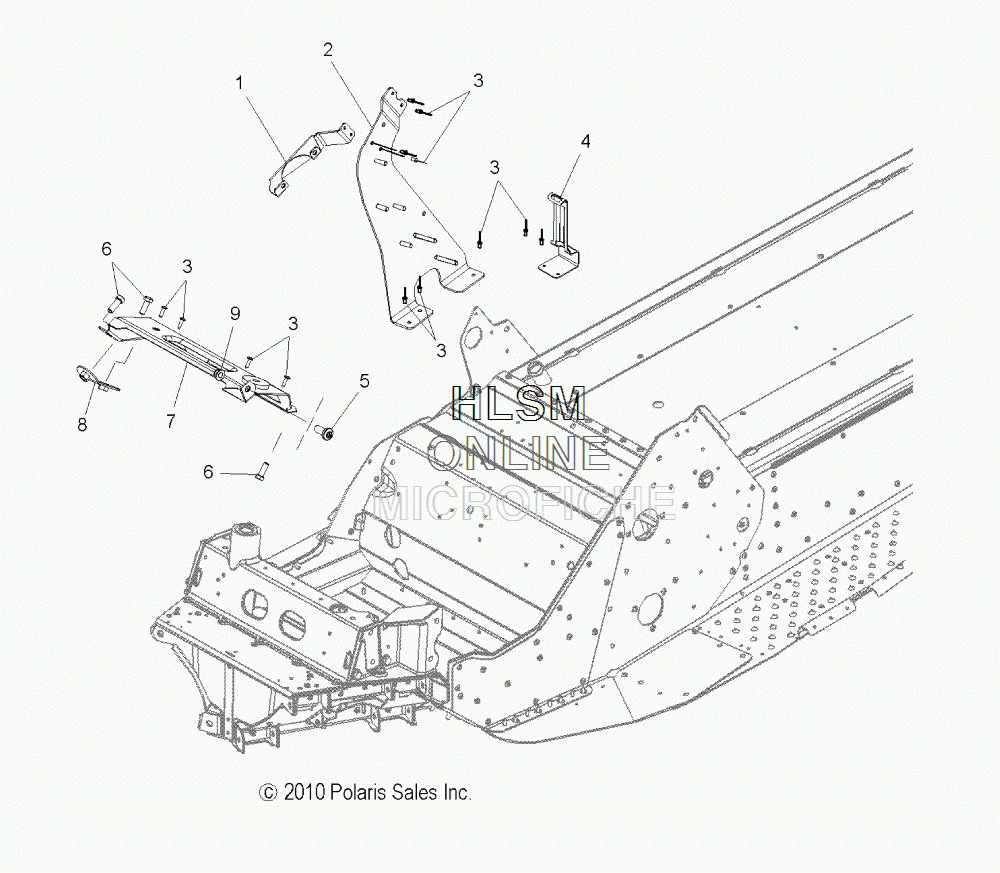

FRONT BRACKETS AND PLATES для Polaris 600 WIDETRAK IQ INTL [S13PU6NEL] - 2013 года выпуска
-
№АртикулНазвание
-
15253214 BRACKET, COOLANT BOTTLEBRACKET, COOLANT BOTTLE
-
21017133 ASM., ELECTRICAL PLATEASM., ELECTRICAL PLATE
-
37661637 RIVETRIVET
-
45253068 BRACKET, AIR BOXBRACKET, AIR BOX
-
57515440 SCREWSCREW
-
67512492 SCREWSCREW
-
71018768-329 BRACKET, ENGINE MOUNT SUPPORT (BLACK)BRACKET, ENGINE MOUNT SUPPORT (BLACK)
-
81016945 PLATE, NUT, FORMEDPLATE, NUT, FORMED
-
97547180 NUT, FLANGEDNUT, FLANGED
Все узлы модели:
- AIR INTAKE SYSTEM
- BACKREST W/GRAB HANDLE
- BATTERY BOX
- BRAKE CALIPER W/ DISC
- BUMPER - FRONT MOUNTING
- CHASSIS ASSEMBLY W/FOOTRESTS
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- DRIVESHAFT W/JACKSHAFT
- ELECTRICAL - IGNITION SYSTEM
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDERS
- • FRONT BRACKETS AND PLATES
- FUEL TANK
- GAUGE - MULTI FUNCTION
- GEARCASE ASSEMBLY (1 OF 2)
- GEARCASE ASSEMBLY (2 OF 2)
- GEARCASE MOUNTING
- HANDLEBAR ASSEMBLY
- HEADLIGHT
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD W/ FRONT HINGE ASSEMBLY
- NOSEPAN W/ TIE ROD BOOT
- OIL PUMP W/LINES
- OIL TANK
- REAR RACK W/ SNOWFLAP
- RECOIL STARTER
- REED VALVE W/THROTTLE BODY ADAPTOR
- SEAT ASSEMBLY
- SEAT RISER
- SENSORS - SWITCHES - COMPONENTS
- SHIFT LINKAGE
- SHOCK TOWERS
- SIDE PANELS
- SKI ASSEMBLY
- STARTER MOTOR
- STEERING - DRAG LINK
- STEERING POST - HOOP
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK
- SUSPENSION - RAILS
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR W/ TRACK
- SUSPENSION - SWAYBAR
- TAILLIGHT
- THROTTLE BODY ASSEMBLY W/RAIL AND LINES
- THROTTLE CONTROL ASSEMBLY
- TIE ROD ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- WATER PUMP
- WINDSHIELD W/ MIRRORS
- WIRING HARNESS
