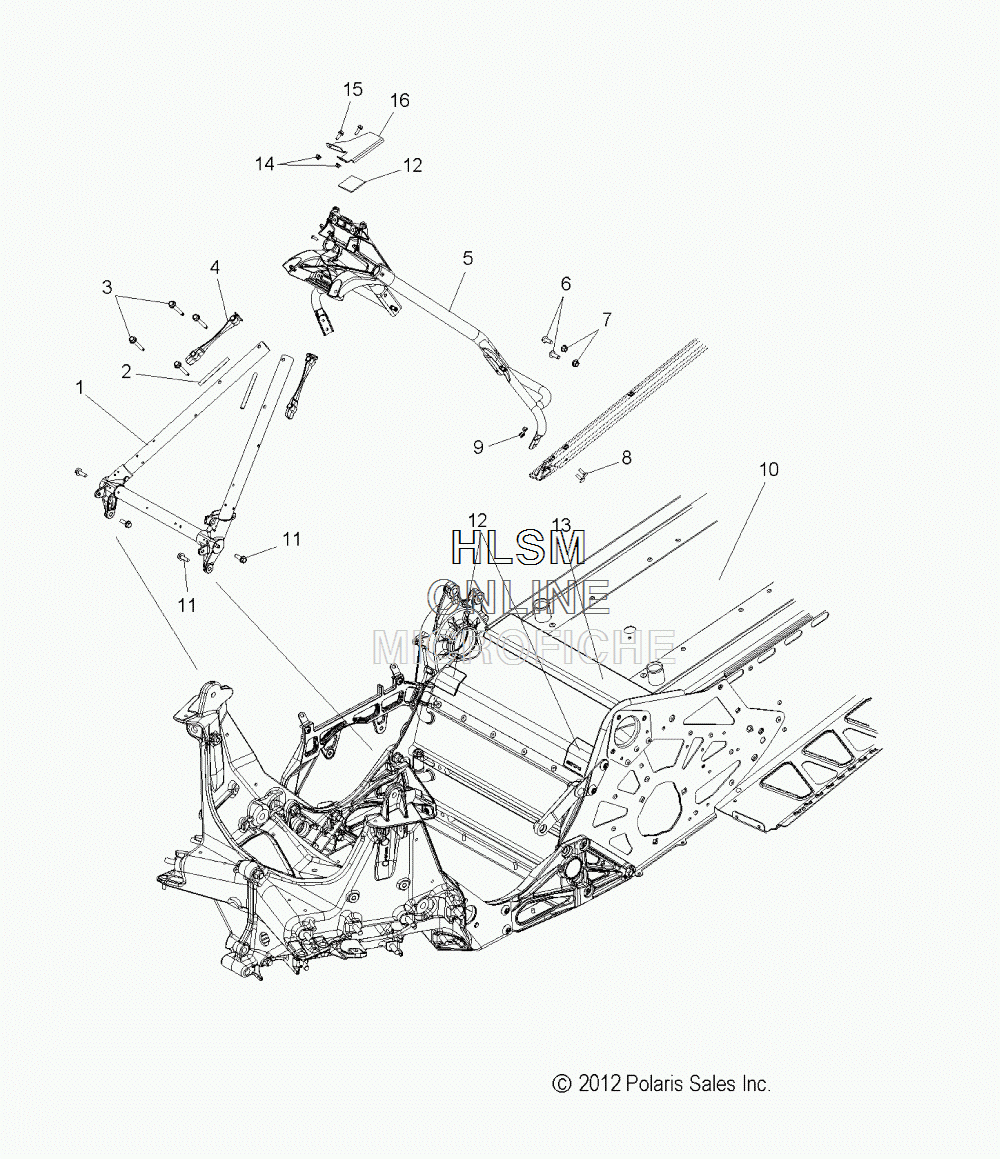

CHASSIS ASSEMBLY W/ OVER STRUCTURE для Polaris 600 RMK 144 ALL OPTIONS [S13CK6] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    1017744 ASM., FRAME, TUBULAR, FRONT
    ASM., FRAME, TUBULAR, FRONT
  • 2
    5521697-350 SEAL, BULB (BULK SVC)
    SEAL, BULB (BULK SVC)
  • 3
    7519245 SCREW
    SCREW
  • 4
    5632200 SPACER, TUBE CAST
    SPACER, TUBE CAST
  • 5
    1017701 ASM., FRAME, TUBULAR, REAR
    ASM., FRAME, TUBULAR, REAR
  • 6
    7518906 SCREW
    SCREW
  • 7
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 8
    7519338 SCREW
    SCREW
  • 9
    7547487 NUT
    NUT
  • 10
    2204871-1241 KIT, CHASSIS, 144 RMK (NAT/MATTE BLACK) (INCL. BULKHEAD)
    KIT, CHASSIS, 144 RMK (NAT/MATTE BLACK) (INCL. BULKHEAD)
  • 10
    1018043-1241 ASM., TUNNEL, 144 INCH, SVC (NAT/MATTE BLACK)
    ASM., TUNNEL, 144 INCH, SVC (NAT/MATTE BLACK)
  • 11
    7519243 SCREW
    SCREW
  • 12
    5813593 PAD
    PAD
  • 13
    5813752 PAD
    PAD
  • 14
    7547339 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 15
    7518613 BOLT
    BOLT
  • 16
    5254367 BRACKET, FUEL TANK
    BRACKET, FUEL TANK
