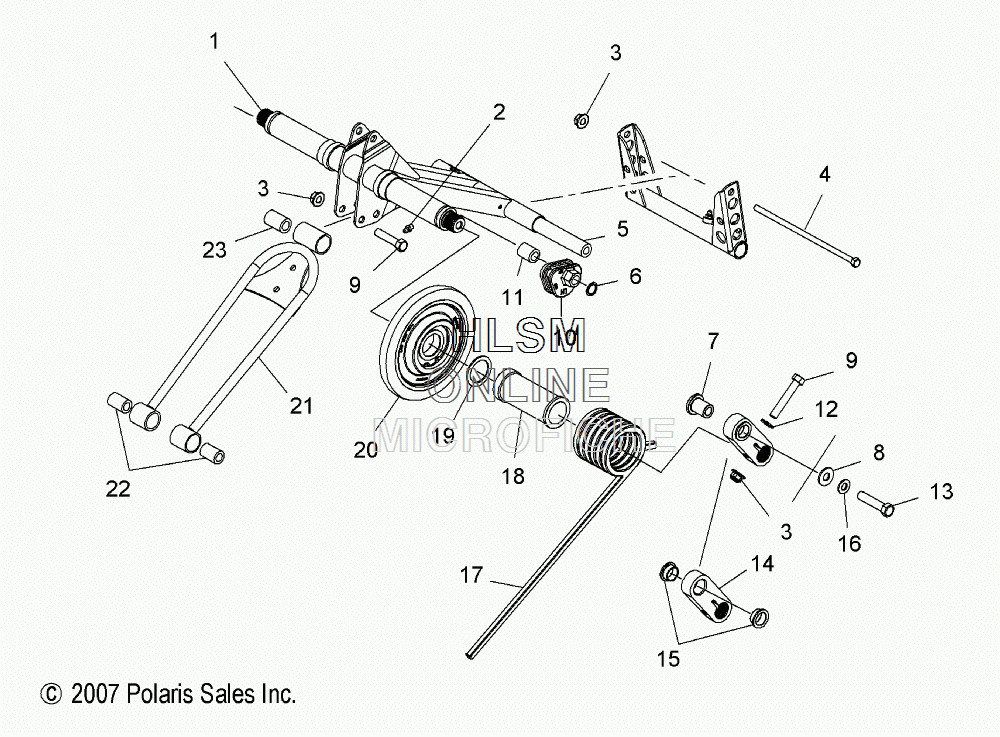

SUSPENSION - TORQUE ARM - REAR (CND- INTL) для Polaris 550 SHIFT 136 CND ES INTL [S13PS5BEL] - 2013 года выпуска`
-
№АртикулНазвание
-
11542429-329 ARM, TORQUE, REAR (BLACK)ARM, TORQUE, REAR (BLACK)
-
27080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
37547263 NUT, NYLOKNUT, NYLOK
-
47518241 SCREWSCREW
-
55133973 SHAFTSHAFT
-
67080394 CLIP, PUSH-ONCLIP, PUSH-ON
-
75136180 RETAINER, SHAFTRETAINER, SHAFT
-
87555984 WASHER, FLATWASHER, FLAT
-
97515415 SCREWSCREW
-
105434589 ROLLER, SPRING, LEFT HANDROLLER, SPRING, LEFT HAND
-
105434590 ROLLER, SPRING, RIGHT HANDROLLER, SPRING, RIGHT HAND
-
115334285 SPACERSPACER
-
127556188 WASHER, FLATWASHER, FLAT
-
137512589 SCREWSCREW
-
141541461 ASM. ARM (INCL. 15)ASM. ARM (INCL. 15)
-
153514331 BUSHINGBUSHING
-
167552614 WASHER, LOCKWASHER, LOCK
-
177043684-329 SPRING, TORSION, .405, 16#, LEFT HAND (BLACK) (STD)SPRING, TORSION, .405, 16#, LEFT HAND (BLACK) (STD)
-
177043685-329 SPRING, TORSION, .405, 16#, RIGHT HAND (BLACK) (STD)SPRING, TORSION, .405, 16#, RIGHT HAND (BLACK) (STD)
-
177043682-329 SPRING, TORSION, .359, 12.5#, LEFT HAND (BLACK) (OPT)SPRING, TORSION, .359, 12.5#, LEFT HAND (BLACK) (OPT)
-
177043683-329 SPRING, TORSION, .359, 12.5#, RIGHT HAND (BLACK) (OPT)SPRING, TORSION, .359, 12.5#, RIGHT HAND (BLACK) (OPT)
-
177043686-329 SPRING, TORSION, .421, 18#, LEFT HAND (BLACK) (OPT) (INTL STD)SPRING, TORSION, .421, 18#, LEFT HAND (BLACK) (OPT) (INTL STD)
-
177043687-329 SPRING, TORSION, .421, 18#, RIGHT HAND (BLACK) (OPT) (INTL STD)SPRING, TORSION, .421, 18#, RIGHT HAND (BLACK) (OPT) (INTL STD)
-
185434989 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
197555939 WASHERWASHER
-
201590001 ASM., WHEELASM., WHEEL
-
207710486 RING, RETAININGRING, RETAINING
-
203514445 BEARINGBEARING
-
211542330-329 ROD, SHOCK (BLACK)ROD, SHOCK (BLACK)
-
225135043 BUSHINGBUSHING
-
235134601 BUSHINGBUSHING
