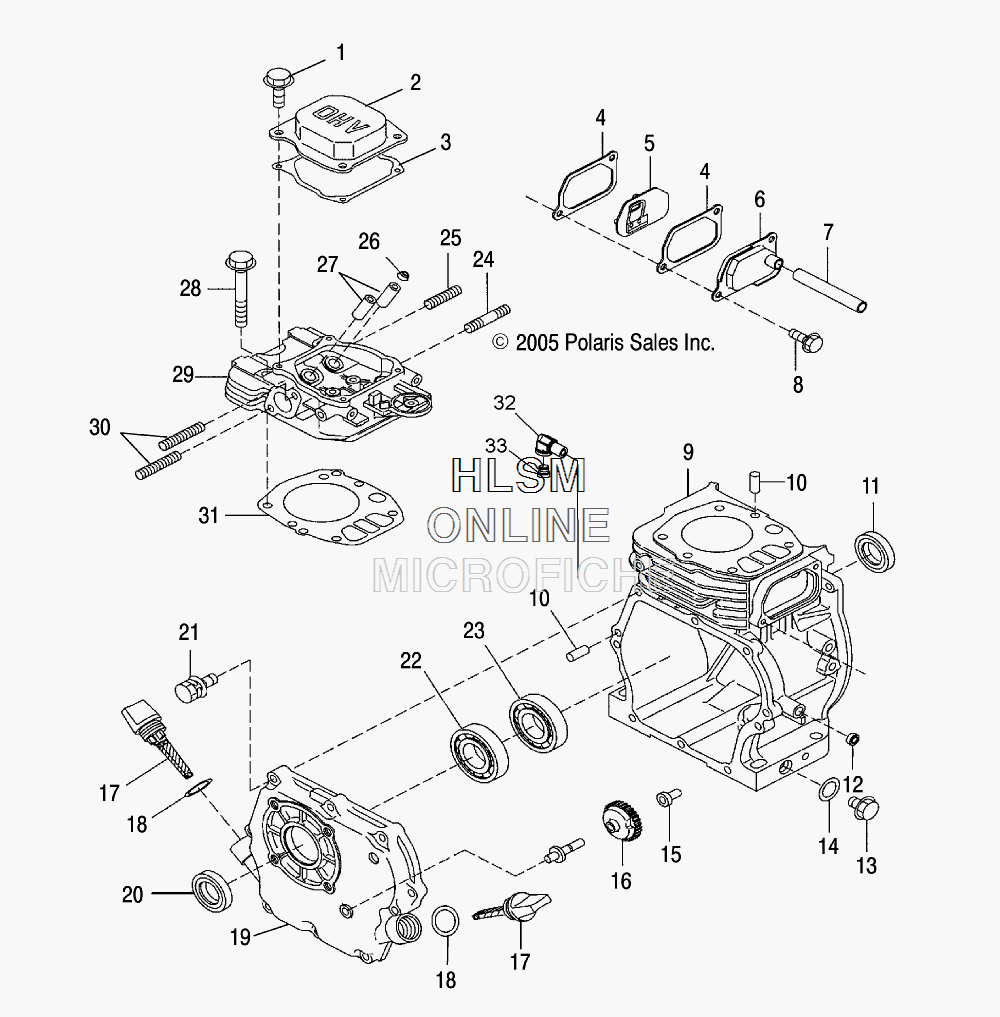

CRANKCASE ASSEMBLY для Polaris 120 PRO R [S13WB1ASA] - 2013 года выпуска`
-
№АртикулНазвание
-
13087256 BOLT, FLANGEBOLT, FLANGE
-
23086527 COVER, ROCKERCOVER, ROCKER
-
33089529 GASKET, ROCKER COVERGASKET, ROCKER COVER
-
43086531 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
53086530 ASM., PLATE, BREATHERASM., PLATE, BREATHER
-
63086529 ASM., COVER, BREATHERASM., COVER, BREATHER
-
73086532 PIPE, RUBBERPIPE, RUBBER
-
83086125 BOLT, FLANGEBOLT, FLANGE
-
93087143 ASM., CRANKCASE (INCL. 10-12,23)ASM., CRANKCASE (INCL. 10-12,23)
-
103086838 PIN, DOWELPIN, DOWEL
-
113086510 SEAL, OILSEAL, OIL
-
123087144 SEAL, OILSEAL, OIL
-
133086749 PLUGPLUG
-
143082956 GASKETGASKET
-
153086518 SLEEVE, GOVERNORSLEEVE, GOVERNOR
-
163086517 ASM., GEAR, GOVERNORASM., GEAR, GOVERNOR
-
173086519 GAUGE, OILGAUGE, OIL
-
183086520 GASKETGASKET
-
193086966 ASM., COVER, MAIN BEARING (INCL. 20,22)ASM., COVER, MAIN BEARING (INCL. 20,22)
-
203086516 SEAL, OILSEAL, OIL
-
213086522 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
223080108 BEARING, BALLBEARING, BALL
-
233086947 BEARING, BALLBEARING, BALL
-
243082934 STUDSTUD
-
253086513 STUDSTUD
-
263088202 SEAL, STEMSEAL, STEM
-
273086535 GUIDE, VALVEGUIDE, VALVE
-
283086526 BOLT, FLANGEBOLT, FLANGE
-
293089422 ASM., HEAD, CYLINDER (INCL. 24-27,30)ASM., HEAD, CYLINDER (INCL. 24-27,30)
-
303086512 STUDSTUD
-
313089528 GASKET, ROCKER COVERGASKET, ROCKER COVER
-
327052480 FITTINGFITTING
-
337052481 PLUG W/O-RINGPLUG W/O-RING
