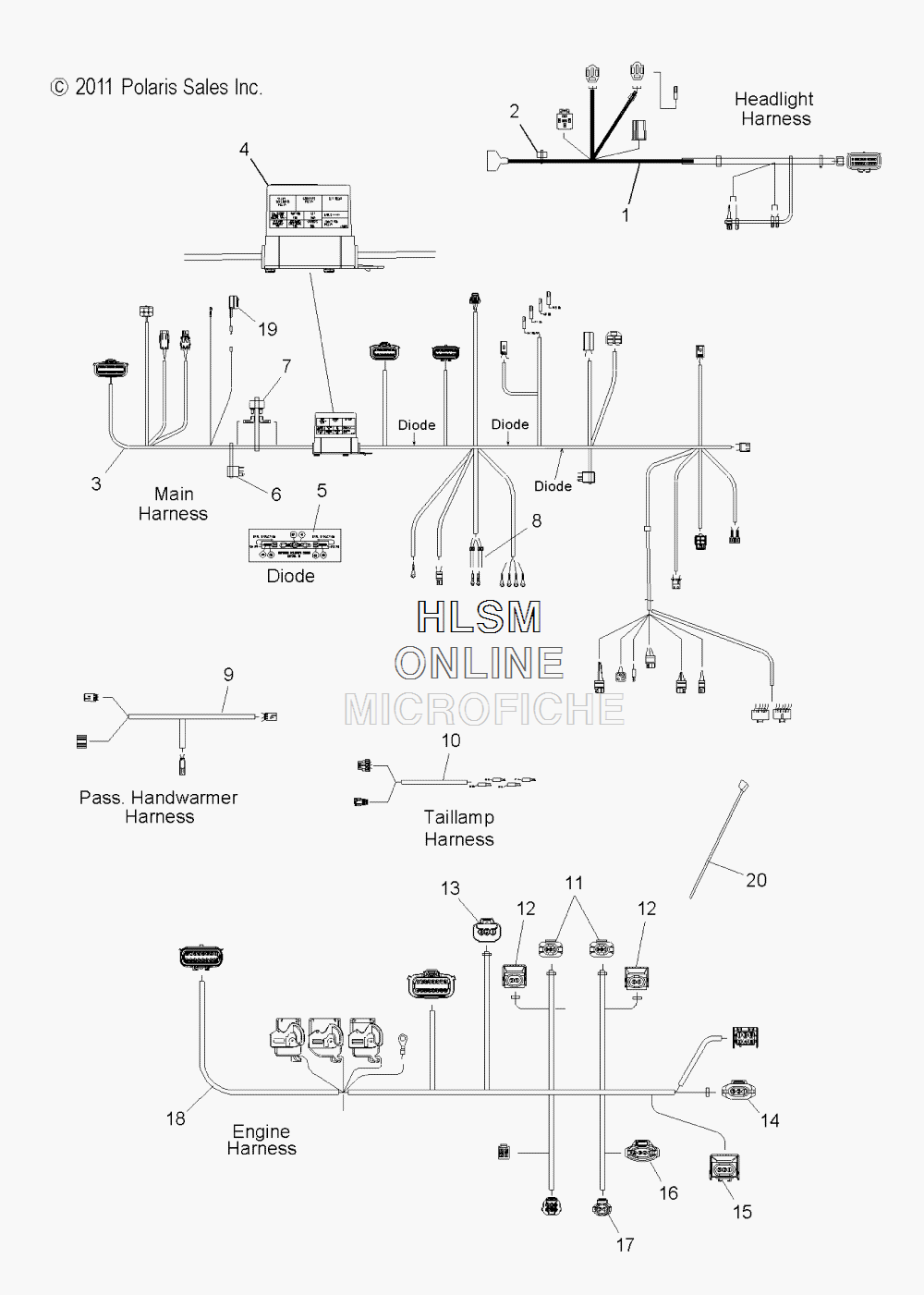

WIRE HARNESS W/ FUSE BOX для Polaris FS WIDETRAK IQ INTL [S12PU7EEL] - 2012 года выпуска`
-
№АртикулНазвание
-
12411549 HARNESS, HEADLIGHTHARNESS, HEADLIGHT
-
24011149 BATTERYBATTERY
-
32411722 HARNESS, MAIN WIRE (INCL. 4-8,19)HARNESS, MAIN WIRE (INCL. 4-8,19)
-
44012557 COVER, FUSE BOX W/DECALCOVER, FUSE BOX W/DECAL
-
47173525 DECAL, FUSE BOXDECAL, FUSE BOX
-
42434017 FUSE, PARK, 20 AMPFUSE, PARK, 20 AMP
-
42434015 FUSE, MAIN, 30 AMPFUSE, MAIN, 30 AMP
-
52411035 DIODEDIODE
-
64010948 RELAYRELAY
-
72410692 BREAKER, CIRCUITBREAKER, CIRCUIT
-
82202147 KIT, FUSIBLE LINK, .5MM (GRAY)KIT, FUSIBLE LINK, .5MM (GRAY)
-
82202607 KIT, FUSIBLE LINK, .8MM (BLUE)KIT, FUSIBLE LINK, .8MM (BLUE)
-
82202670 KIT, FUSIBLE LINK, 1.0MM (BLACK)KIT, FUSIBLE LINK, 1.0MM (BLACK)
-
92411542 HARNESS, PASSENGER HANDWARMERSHARNESS, PASSENGER HANDWARMERS
-
102411541 HARNESS, TAILLAMPHARNESS, TAILLAMP
-
112203164 KIT, HARNESS, IGNITION COILKIT, HARNESS, IGNITION COIL
-
122203166 KIT, HARNESS, INJECTORKIT, HARNESS, INJECTOR
-
132203165 KIT, HARNESS, TPSKIT, HARNESS, TPS
-
142203167 KIT, HARNESS, PHASE SENSORKIT, HARNESS, PHASE SENSOR
-
152203161 KIT, HARNESS, CRANK SENSORKIT, HARNESS, CRANK SENSOR
-
162203162 KIT, HARNESS, T-MAPKIT, HARNESS, T-MAP
-
172203748 KIT, HARNESS, COOLANT TEMPKIT, HARNESS, COOLANT TEMP
-
182411723 HARNESS, WIRE, ENGINEHARNESS, WIRE, ENGINE
-
192203920 KIT, HARNESS, ALTERNATORKIT, HARNESS, ALTERNATOR
-
207080138 CABLE TIECABLE TIE
