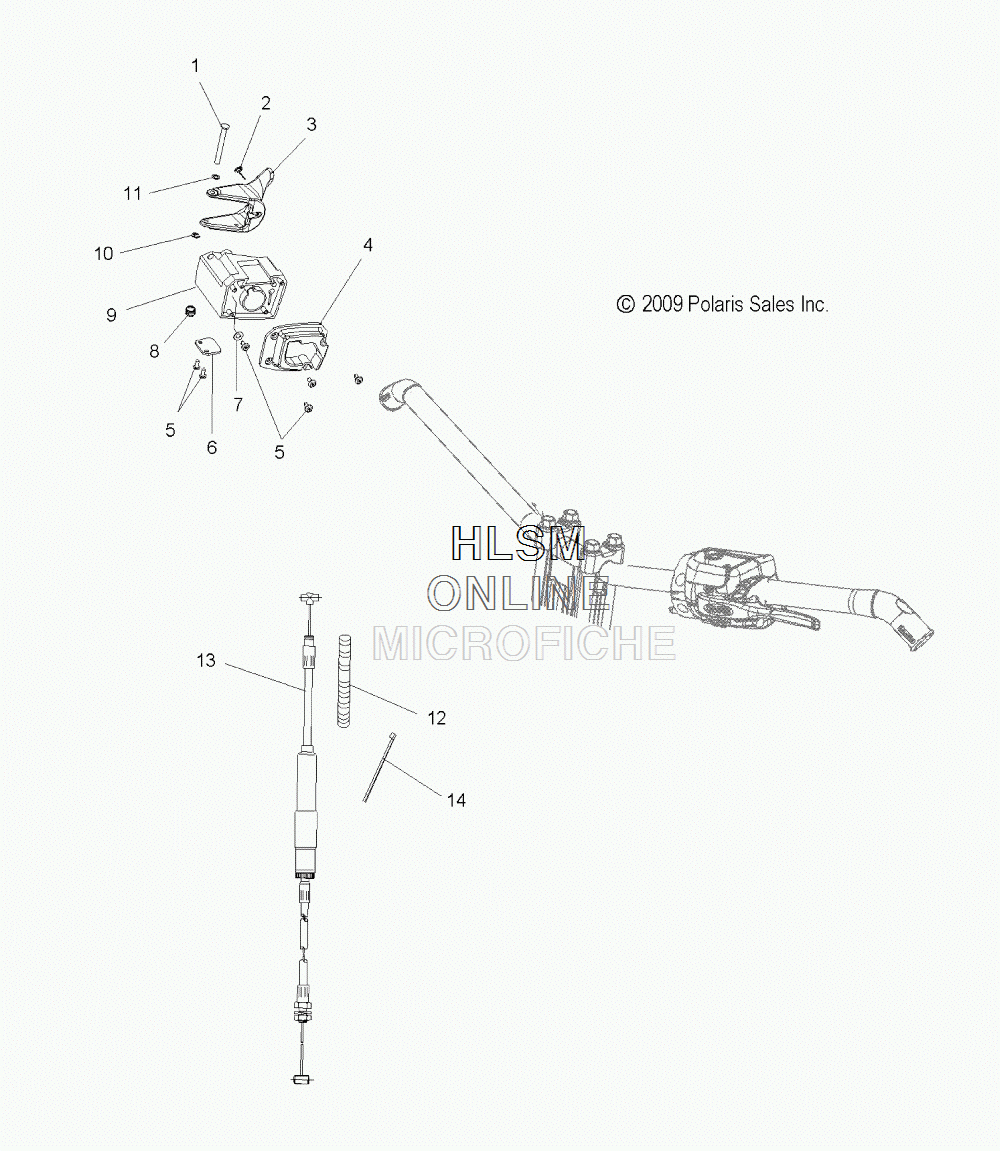

THROTTLE CONTROL ASSEMBLY для Polaris 800 SWITCHBACK [S12BR8GSA] - 2012 года выпуска`
-
№АртикулНазвание
-
17661624 PIN, RETAININGPIN, RETAINING
-
27710503 RING, RETAININGRING, RETAINING
-
35432970 LEVER, THROTTLELEVER, THROTTLE
-
32010271 ASM., LEVER W/HEATER, HI/LOASM., LEVER W/HEATER, HI/LO
-
45430604 BLOCK, ADAPTORBLOCK, ADAPTOR
-
57511848 SCREWSCREW
-
65432261 HOLDER, WIREHOLDER, WIRE
-
77555727 WASHERWASHER
-
87512465 SCREW, SETSCREW, SET
-
95431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
107710401 RING, RETAININGRING, RETAINING
-
117555730 WASHERWASHER
-
128360056-25 TUBING, CONVOLUTEDTUBING, CONVOLUTED
-
137081570 CABLE, THROTTLECABLE, THROTTLE
-
147080138 CABLE TIECABLE TIE
