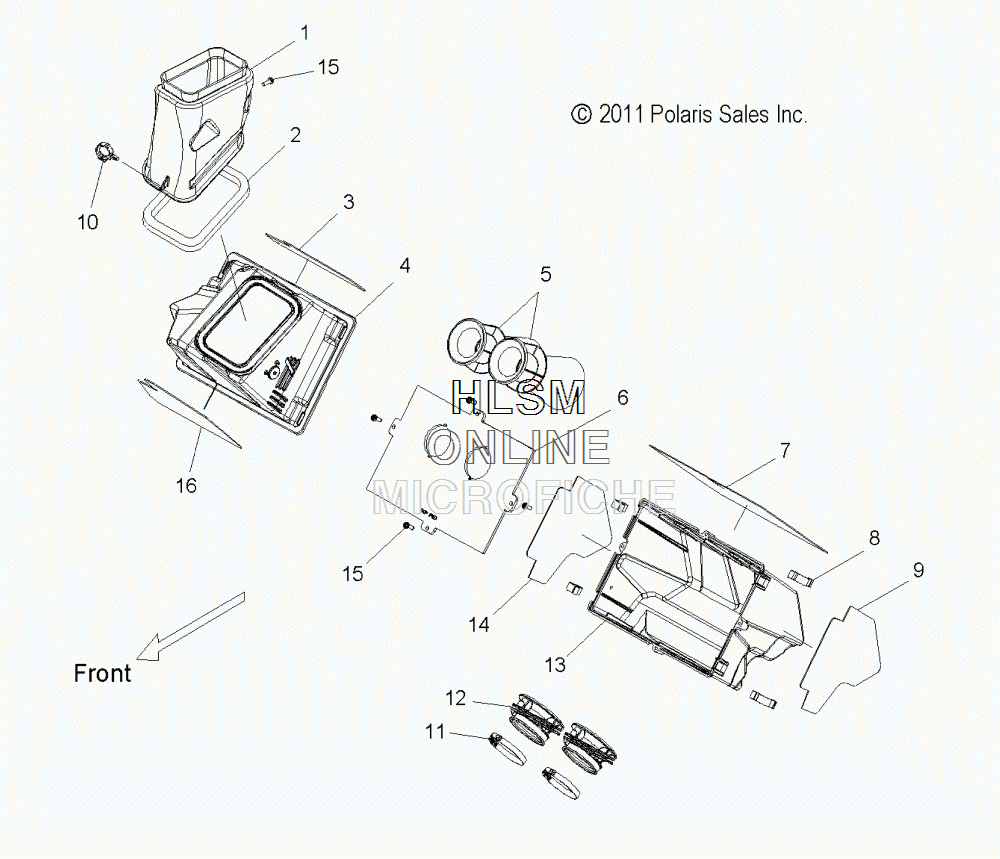

AIR INTAKE SYSTEM для Polaris 800 RMK 155 ES [S12CM8GSL] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    1204266 ASM., TUBE, INTAKE
    ASM., TUBE, INTAKE
  • 1
    7518577 SCREW
    SCREW
  • 2
    5813504 FOAM, AIRBOX SEAL
    FOAM, AIRBOX SEAL
  • 3
    5813546 BARRIER, AIRBOX, REAR, TOP
    BARRIER, AIRBOX, REAR, TOP
  • 4
    5438731 AIRBOX, UPPER
    AIRBOX, UPPER
  • 5
    5438303 TUBE, INTAKE
    TUBE, INTAKE
  • 6
    5813641 PLATE, INTAKE
    PLATE, INTAKE
  • 7
    5813544 BARRIER, AIRBOX, BACK
    BARRIER, AIRBOX, BACK
  • 8
    5242044 CLIP, AIRBOX
    CLIP, AIRBOX
  • 9
    5813547 BARRIER, AIRBOX, LEFT HAND
    BARRIER, AIRBOX, LEFT HAND
  • 10
    4020149 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 11
    7080909 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 12
    5413741 BOOT, THROTTLE BODY
    BOOT, THROTTLE BODY
  • 13
    1204440 ASM., AIR SILENCER (INCL. 8,12)
    ASM., AIR SILENCER (INCL. 8,12)
  • 14
    5813655 BARRIER, AIRBOX, RIGHT HAND
    BARRIER, AIRBOX, RIGHT HAND
  • 15
    7518577 SCREW
    SCREW
  • 16
    5813545 BARRIER, AIRBOX, FRONT, TOP
    BARRIER, AIRBOX, FRONT, TOP
