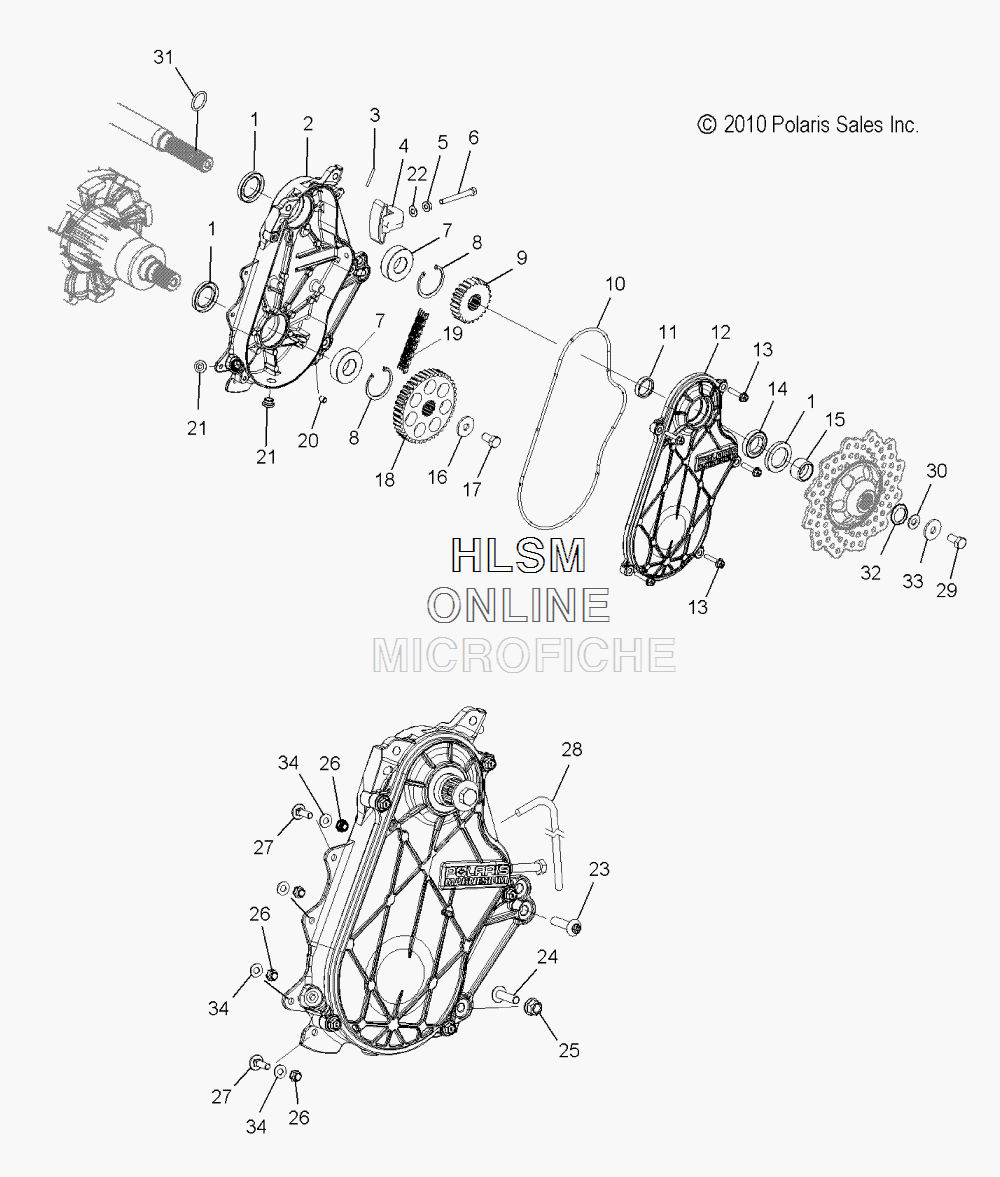

CHAINCASE ASSEMBLY для Polaris 600 SWITCHBACK PRO-R (ALL OPTIONS) [S12BS6NAS/NSB/NSC/NSL/NSM/NSP/NEL] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    3610030 SEAL, OIL
    SEAL, OIL
  • 2
    5136624 CHAINCASE
    CHAINCASE
  • 3
    5334764 TUBE, VENT
    TUBE, VENT
  • 4
    1332427 ASM., TIGHTENER, CHAIN
    ASM., TIGHTENER, CHAIN
  • 5
    7547017 NUT, HEX
    NUT, HEX
  • 6
    7519166 SCREW
    SCREW
  • 7
    3514309 BEARING, BALL
    BEARING, BALL
  • 8
    7718406 RING, RETAINING
    RING, RETAINING
  • 9
    3221099 SPROCKET, 23T, 3/4W
    SPROCKET, 23T, 3/4W
  • 10
    5813295 GASKET, CHAINCASE COVER
    GASKET, CHAINCASE COVER
  • 11
    5137587 SLEEVE, CHAINCASE
    SLEEVE, CHAINCASE
  • 12
    1332659 ASM., CHAINCASE COVER
    ASM., CHAINCASE COVER
  • 13
    7518993 SCREW
    SCREW
  • 14
    3514643 BEARING, BALL
    BEARING, BALL
  • 15
    5136533 SLEEVE, SEAL
    SLEEVE, SEAL
  • 16
    7556130 WASHER, BELLE
    WASHER, BELLE
  • 17
    7519004 SCREW
    SCREW
  • 18
    3222108 SPROCKET, 39T
    SPROCKET, 39T
  • 19
    3221110 CHAIN, 72P, 3/4W
    CHAIN, 72P, 3/4W
  • 20
    7663007 DOWEL, HOLLOW
    DOWEL, HOLLOW
  • 21
    7052458 PLUG, MAGNETIC
    PLUG, MAGNETIC
  • 22
    7556340 WASHER, THREAD SEAL
    WASHER, THREAD SEAL
  • 23
    7519049 SCREW M8X1.25X35
    SCREW M8X1.25X35
  • 24
    7518953 SCREW M8X1.25X30
    SCREW M8X1.25X30
  • 25
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 26
    7547505 NUT, ZOD, NYLOK
    NUT, ZOD, NYLOK
  • 27
    7519338 SCREW
    SCREW
  • 28
    8450061-600 LINE, OIL, 600 CM, SERVICE
    LINE, OIL, 600 CM, SERVICE
  • 29
    7518760 BOLT
    BOLT
  • 30
    7556556 WASHER, FLAT
    WASHER, FLAT
  • 31
    5413563 O-RING
    O-RING
  • 32
    7556063 WASHER, WAVE
    WASHER, WAVE
  • 33
    7556563 WASHER 10.4X28.58X2.4
    WASHER 10.4X28.58X2.4
  • 34
    7556588 WASHER 6.2X14.25X2
    WASHER 6.2X14.25X2
