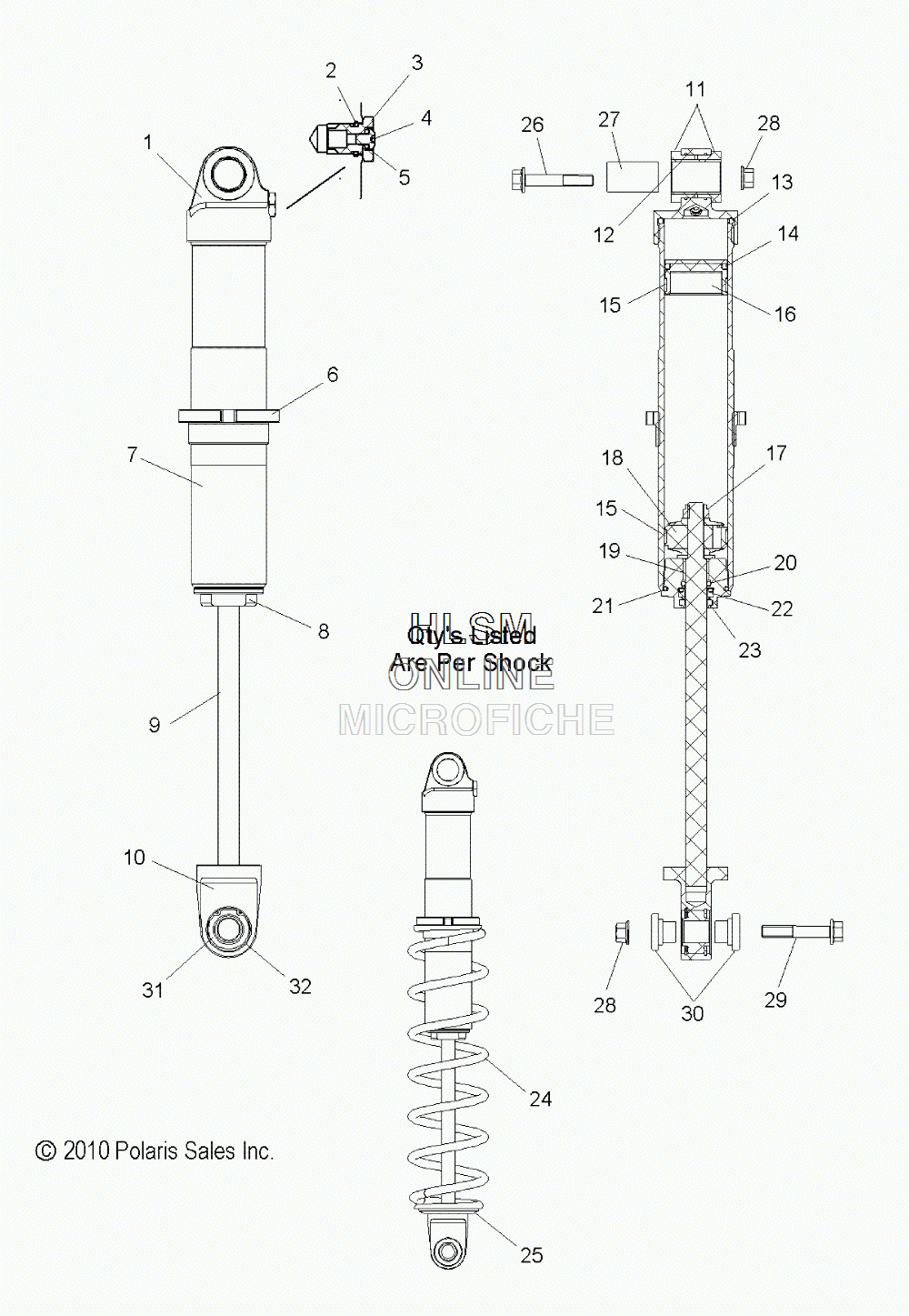

SUSPENSION - IFS SHOCK для Polaris 600 PRO RMK 155 ES [S12CG6GSL] - 2012 года выпуска`
-
№АртикулНазвание
-
-7043429 SHOCK, WALKER EVANS, IFSSHOCK, WALKER EVANS, IFS
-
11800407 LOOP, BODYLOOP, BODY
-
21800215 O-RINGO-RING
-
31800329 NEEDLE VALVENEEDLE VALVE
-
41800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
51800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
61800046 RETAINER, SPRINGRETAINER, SPRING
-
71800410 BODYBODY
-
81800403 ASM., SEAL HEADASM., SEAL HEAD
-
91800411 SHAFTSHAFT
-
101800421 LOOP, SHAFTLOOP, SHAFT
-
111800406 BUSHINGBUSHING
-
121800405 SLEEVESLEEVE
-
131800030 O-RING, BODYO-RING, BODY
-
141800028 O-RING, RESERVOIRO-RING, RESERVOIR
-
151800297 WEAR BAND, TEFLONWEAR BAND, TEFLON
-
161800348 PISTON, RES. IFPPISTON, RES. IFP
-
171800031 NUT, CRIMPNUT, CRIMP
-
181800001 PISTONPISTON
-
191800292 BUSHING, SHAFTBUSHING, SHAFT
-
201800095 O-RINGO-RING
-
211800027 O-RING, BODYO-RING, BODY
-
221800294 SEAL, U-CUPSEAL, U-CUP
-
231800295 SEAL, WIPERSEAL, WIPER
-
247043460-133 SPRING, COMPRESSION, 100# (BRIGHT WHITE)SPRING, COMPRESSION, 100# (BRIGHT WHITE)
-
251800116 RING, SPRING RETAINERRING, SPRING RETAINER
-
267518941 SCREWSCREW
-
275137360 BUSHINGBUSHING
-
287547423 NUTNUT
-
297518971 SCREWSCREW
-
305136530 SPACERSPACER
-
311800040 BEARING, ENDBEARING, END
-
321800041 SNAP RING, END BEARINGSNAP RING, END BEARING
