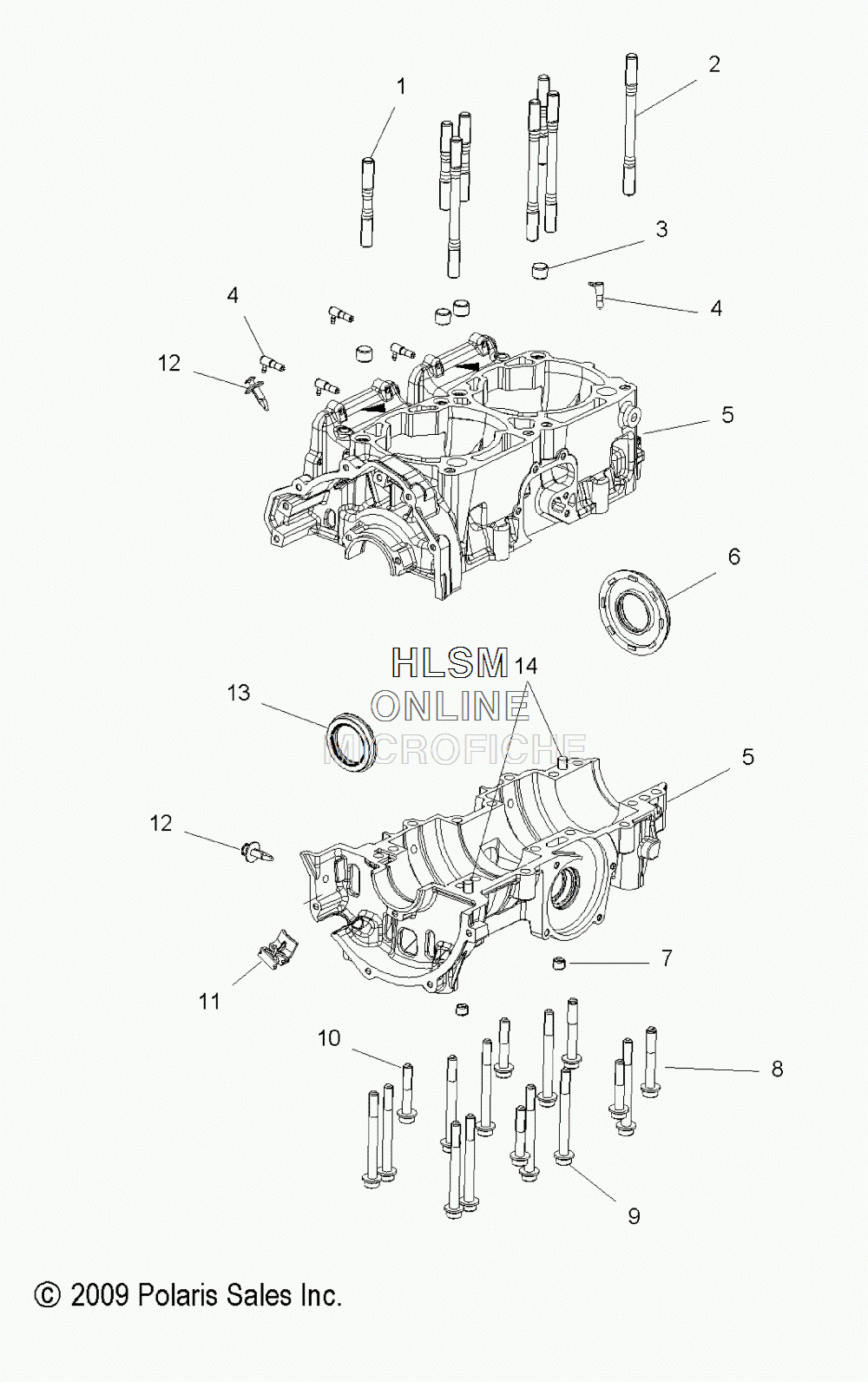

CRANKCASE ASSEMBLY для Polaris 600 IQ LXT [S12PT6HSL] - 2012 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    5135956 STUD, CYLINDER (81MM)
    STUD, CYLINDER (81MM)
  • 2
    5135955 STUD, CYLINDER (130MM)
    STUD, CYLINDER (130MM)
  • 3
    7663008 DOWEL, HOLLOW (M13X10)
    DOWEL, HOLLOW (M13X10)
  • 4
    7051020 VALVE, CHECK (90 DEG.)
    VALVE, CHECK (90 DEG.)
  • 5
    2203321 KIT, CRANKCASE (INCL. 1,2,4,7-12,14)
    KIT, CRANKCASE (INCL. 1,2,4,7-12,14)
  • 6
    5411394 SEAL, FLANGE
    SEAL, FLANGE
  • 7
    7052337 PLUG
    PLUG
  • 8
    7517785 BOLT (M8X1.25X55)
    BOLT (M8X1.25X55)
  • 9
    7517784 BOLT (M8X1.25X80)
    BOLT (M8X1.25X80)
  • 10
    7517786 BOLT (M8X1.25X45)
    BOLT (M8X1.25X45)
  • 11
    5436640 SHIELD, WIRE STATOR
    SHIELD, WIRE STATOR
  • 12
    7621509 RIVET, PLASTI-LOCK (50)
    RIVET, PLASTI-LOCK (50)
  • 13
    5414096 SEAL, FLANGED
    SEAL, FLANGED
  • 14
    7663001 PIN, DOWEL
    PIN, DOWEL
