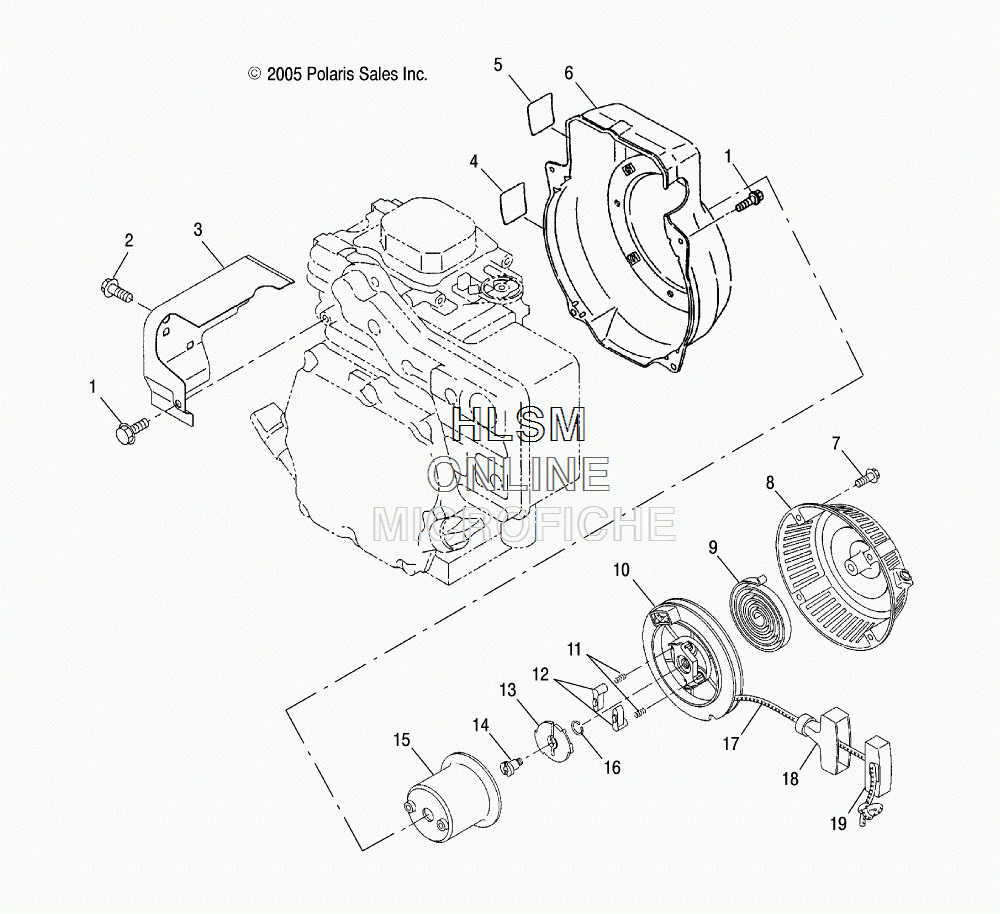

RECOIL STARTER W/ BLOWER HOUSING для Polaris 120 PRO INTL [S12WB1ASA] - 2012 года выпуска`
-
№АртикулНазвание
-
13087256 BOLT, FLANGEBOLT, FLANGE
-
23086125 BOLT, FLANGEBOLT, FLANGE
-
33086622 COVER, HEADCOVER, HEAD
-
43086638 LABEL, WARNINGLABEL, WARNING
-
63086957 ASM., HOUSING 2, BLOWERASM., HOUSING 2, BLOWER
-
73085359 BOLT, FLANGEBOLT, FLANGE
-
83086958 ASM., RECOIL STARTER (INCL. 9-17)ASM., RECOIL STARTER (INCL. 9-17)
-
93086625 SPRING, SPIRALSPRING, SPIRAL
-
103086626 REELREEL
-
113086865 SPRING, RETURNSPRING, RETURN
-
123086629 RATCHETRATCHET
-
133086632 GUIDE, RATCHETGUIDE, RATCHET
-
143086634 SCREW, SETSCREW, SET
-
153086959 PULLEY, STARTERPULLEY, STARTER
-
163086630 SPRING, FRICTIONSPRING, FRICTION
-
172870621 ROPE, STARTERROPE, STARTER
-
183086628 KNOB, STARTERKNOB, STARTER
-
193086866 CAP, KNOBCAP, KNOB
Все узлы модели:
- AIR INTAKE SYSTEM
- BUMPER - FRONT W/ NOSEPAN
- CARBURETOR W/CHOKE
- CLUTCH ASSEMBLY
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- DECALS
- DRIVE SHAFT ASSY.
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - INSTRUMENTS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- GOVERNOR
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD ASSEMBLY W/ WINDSHIELD
- OWNER'S MANUAL W/ TOOL KIT
- • RECOIL STARTER W/ BLOWER HOUSING
- SEAT W/ FUEL TANK & CONSOLE
- SKI ASSEMBLY
- STEERING - LOWER
- SUSPENSION - FRONT
- SUSPENSION - REAR
- TUNNEL W/BULKHEAD
