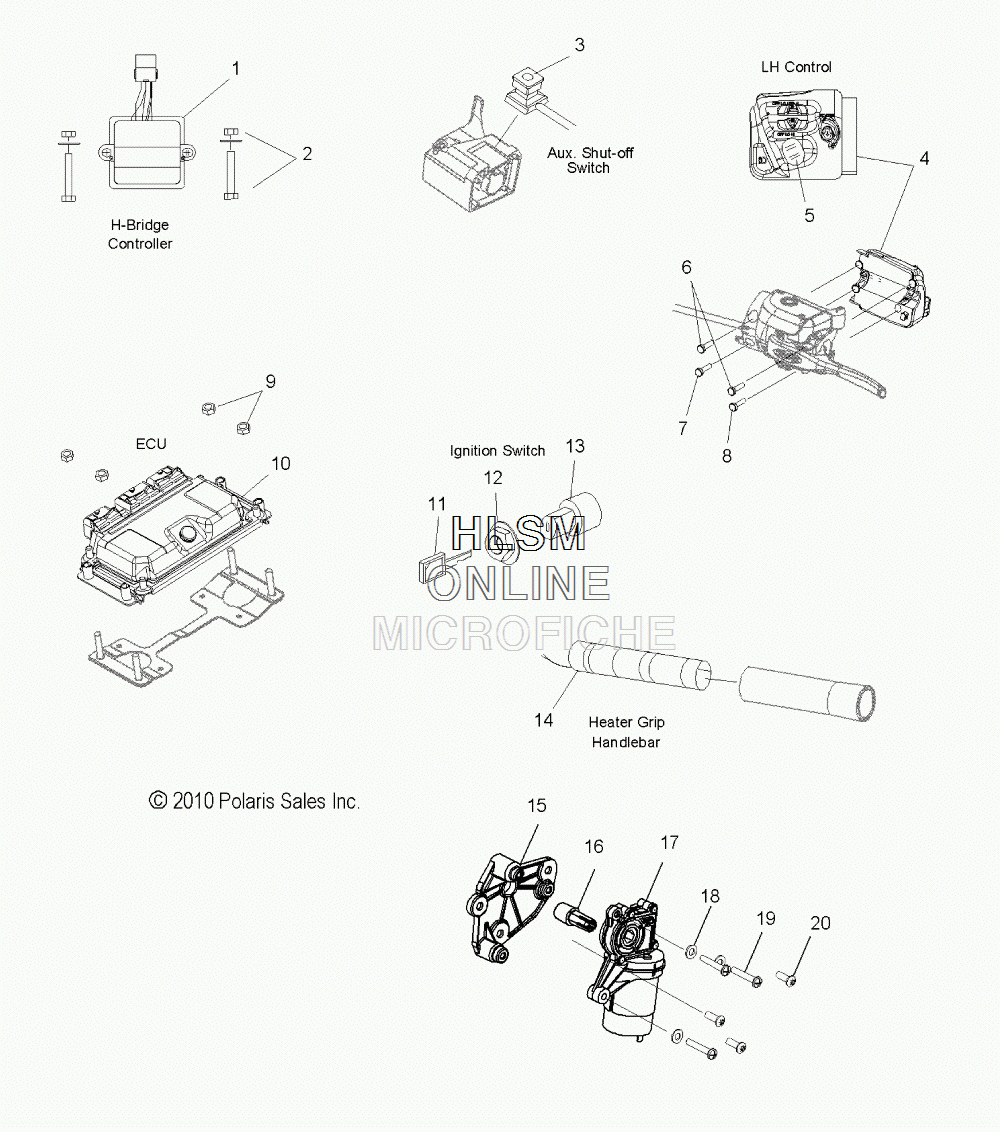

ELECTRICAL - SWITCHES AND CONTROLS для Polaris TURBO IQ [S11PP7FSL] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    2203639 KIT, H-BRIDGE CONTROLLER
    KIT, H-BRIDGE CONTROLLER
  • 2
    7517263 SCREW
    SCREW
  • 2
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 2
    7555746 WASHER
    WASHER
  • 3
    4011280 SWITCH, AUXILLARY SHUT-OFF/POWER
    SWITCH, AUXILLARY SHUT-OFF/POWER
  • 4
    2010290 ASM., CONTROL, LEFT HAND
    ASM., CONTROL, LEFT HAND
  • 5
    5433291 BUTTON, SWITCH, HI/LO, LEFT HAND CONTROL
    BUTTON, SWITCH, HI/LO, LEFT HAND CONTROL
  • 6
    7517441 SCREW
    SCREW
  • 7
    7512078 SCREW
    SCREW
  • 8
    7517566 SCREW
    SCREW
  • 9
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 10
    4012259 ECU
    ECU
  • 11
    5410611 KEY W/CAP
    KEY W/CAP
  • 12
    7547035 NUT, IGNITION
    NUT, IGNITION
  • 13
    2200358 KIT, IGNITION SWITCH
    KIT, IGNITION SWITCH
  • 14
    2410836 HEATER, GRIP, LO/MED/HI, SHORT
    HEATER, GRIP, LO/MED/HI, SHORT
  • 15
    5436152 BRACKET, REVERSE ACTUATOR MOUNT
    BRACKET, REVERSE ACTUATOR MOUNT
  • 16
    5436807 COUPLER, REVERSE ACTUATOR
    COUPLER, REVERSE ACTUATOR
  • 17
    1332477 ASM., ACTUATOR (INCL. 15,16)
    ASM., ACTUATOR (INCL. 15,16)
  • 18
    7555727 WASHER
    WASHER
  • 19
    7518046 SCREW
    SCREW
  • 20
    7512024 SCREW
    SCREW
