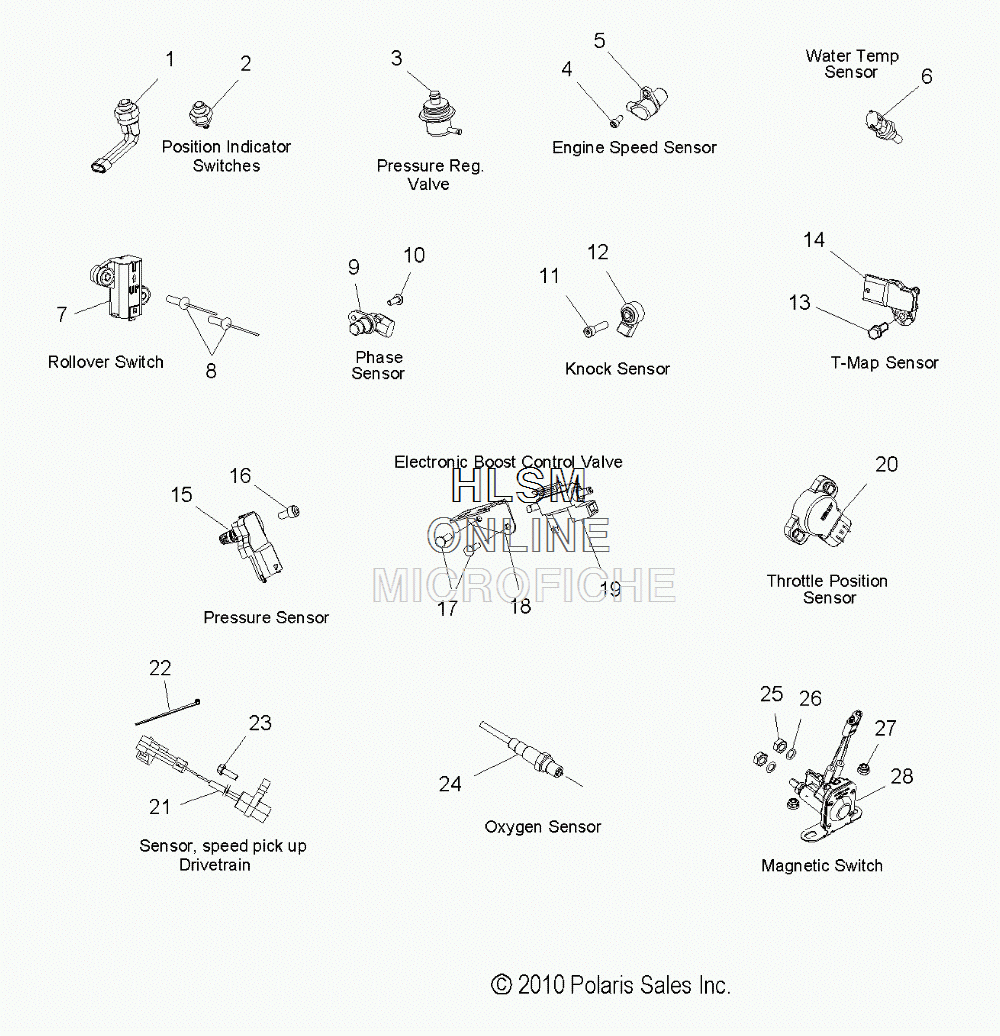

ELECTRICAL - SENSORS AND SWITCHES для Polaris TURBO IQ LXT [S11PT7FSL] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    4011340 SWITCH, POSITION
    SWITCH, POSITION
  • 2
    4011005 SWITCH, POSITION INDICATOR
    SWITCH, POSITION INDICATOR
  • 3
    0451351 VALVE, PRESSURE REGULATOR
    VALVE, PRESSURE REGULATOR
  • 4
    0452957 BOLT
    BOLT
  • 5
    0452956 SENSOR, SPEED
    SENSOR, SPEED
  • 6
    0451350 SENSOR, WATER TEMPERATURE
    SENSOR, WATER TEMPERATURE
  • 7
    4011026 SWITCH, ROLLOVER
    SWITCH, ROLLOVER
  • 8
    7661146 RIVET
    RIVET
  • 9
    0451354 SENSOR, PHASE
    SENSOR, PHASE
  • 10
    0451998 BOLT
    BOLT
  • 11
    0451565 SCREW
    SCREW
  • 12
    0451509 SENSOR, KNOCK
    SENSOR, KNOCK
  • 13
    7512095 SCREW (PLENUM)
    SCREW (PLENUM)
  • 13
    7517431 SCREW (AIRBOX)
    SCREW (AIRBOX)
  • 14
    2410422 SENSOR, T-MAP (PLENUM)
    SENSOR, T-MAP (PLENUM)
  • 14
    2410605 SENSOR, T-MAP (AIRBOX)
    SENSOR, T-MAP (AIRBOX)
  • 15
    0451352 SENSOR, PRESSURE
    SENSOR, PRESSURE
  • 16
    0452957 BOLT
    BOLT
  • 17
    7512026 SCREW
    SCREW
  • 18
    5249291 BRACKET, MOUNT, WASTEGATE VALVE
    BRACKET, MOUNT, WASTEGATE VALVE
  • 19
    4011285 VALVE, ELECTRONIC BOOST CONTROL
    VALVE, ELECTRONIC BOOST CONTROL
  • 20
    3131591 SENSOR, THROTTLE POSITION
    SENSOR, THROTTLE POSITION
  • 21
    2410376 SENSOR, SPEED PICK UP
    SENSOR, SPEED PICK UP
  • 22
    7080138 CABLE TIE
    CABLE TIE
  • 23
    7512232 SCREW
    SCREW
  • 24
    4011040 SENSOR, OXYGEN
    SENSOR, OXYGEN
  • 25
    7542105 NUT
    NUT
  • 26
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 27
    7518287 NUT, NYLON INSERT, FLANGE
    NUT, NYLON INSERT, FLANGE
  • 28
    4012358 SWITCH, MAGNETIC
    SWITCH, MAGNETIC
