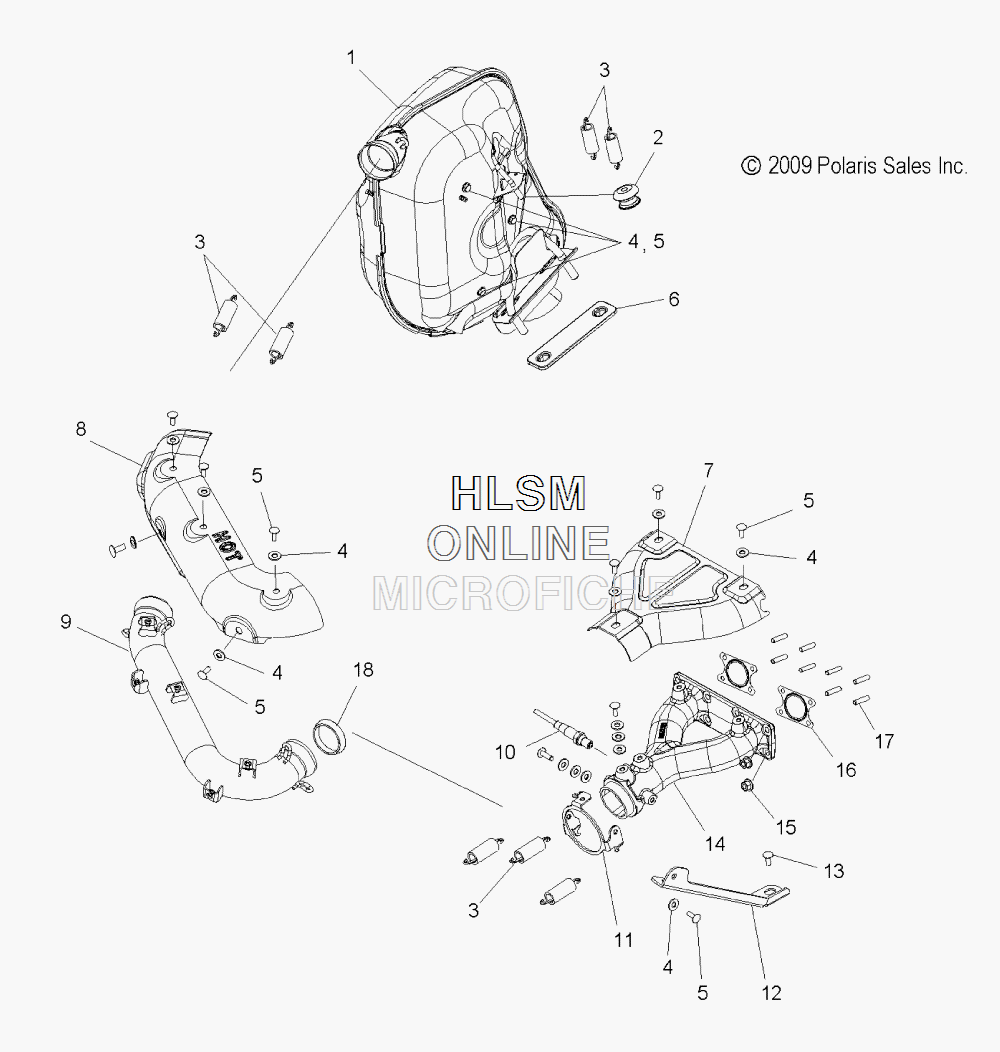

EXHAUST SYSTEM для Polaris FS WIDETRAK IQ [S11PU7ESL] - 2011 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    1261924 ASM., RESONATOR
    ASM., RESONATOR
  • 2
    5413377 GROMMET, SILENCER MOUNT
    GROMMET, SILENCER MOUNT
  • 3
    7042332 SPRING, EXHAUST
    SPRING, EXHAUST
  • 4
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 5
    7518583 SCREW
    SCREW
  • 6
    5413565 GROMMET, RESONATOR/CHASSIS, SILICONE
    GROMMET, RESONATOR/CHASSIS, SILICONE
  • 7
    5249494 SHIELD, HEAT, MANIFOLD
    SHIELD, HEAT, MANIFOLD
  • 8
    5249492-029 SHIELD, HEAT, HEAD PIPE, BLACK
    SHIELD, HEAT, HEAD PIPE, BLACK
  • 9
    1262001 PIPE, EXHAUST, SS
    PIPE, EXHAUST, SS
  • 10
    4011040 SENSOR, OXYGEN
    SENSOR, OXYGEN
  • 11
    5253669 BRACKET, SPRING HOOK
    BRACKET, SPRING HOOK
  • 12
    5253324 SUPPORT, MANIFOLD
    SUPPORT, MANIFOLD
  • 13
    7516730 SCREW, SEMS
    SCREW, SEMS
  • 14
    5136565 MANIFOLD, MACH.
    MANIFOLD, MACH.
  • 15
    0451503 NUT
    NUT
  • 16
    0451515 GASKET, EXHAUST
    GASKET, EXHAUST
  • 17
    0452933 PIN, THREADED
    PIN, THREADED
  • 18
    3610155 SEAL, EXHAUST
    SEAL, EXHAUST
