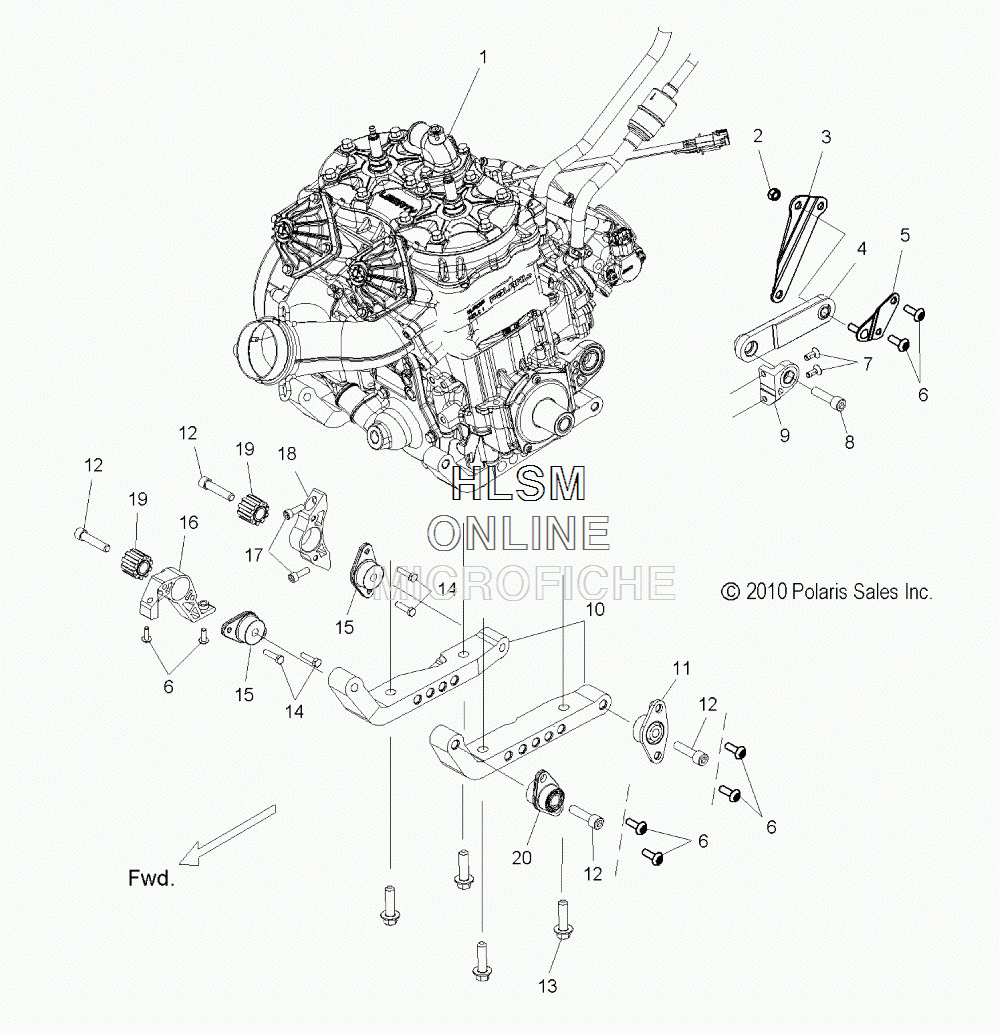

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 800 PRO RMK 155/163/ES ALL OPTIONS [S11CG8] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    2204381 KIT, SHORT BLOCK, 800 LE
    KIT, SHORT BLOCK, 800 LE
  • 2
    7547144 NUT, NYLOK
    NUT, NYLOK
  • 3
    1017131 LIMITER, TORQUE, INNER
    LIMITER, TORQUE, INNER
  • 4
    1017717 ASM., LINK, TORQUE, FIXED
    ASM., LINK, TORQUE, FIXED
  • 5
    1017118 ASM., BRACKET LINK W/STUD
    ASM., BRACKET LINK W/STUD
  • 6
    7519070 SCREW
    SCREW
  • 7
    7519229 SCREW
    SCREW
  • 8
    7519119 SCREW
    SCREW
  • 9
    3022281 LIMITER, TORQUE, ENGINE
    LIMITER, TORQUE, ENGINE
  • 10
    5137374 STRAP, ENGINE, LEFT HAND
    STRAP, ENGINE, LEFT HAND
  • 10
    5137183 STRAP, ENGINE, RIGHT HAND
    STRAP, ENGINE, RIGHT HAND
  • 11
    3022286 MOUNT, ENGINE, PTO, REAR
    MOUNT, ENGINE, PTO, REAR
  • 12
    7519282 SCREW
    SCREW
  • 13
    7518644 SCREW
    SCREW
  • 14
    7516823 SCREW
    SCREW
  • 15
    3022236 MOUNT, ENGINE
    MOUNT, ENGINE
  • 16
    1017778 ASM., ENGINE MOUNT, FRONT W/CLINCH NUT
    ASM., ENGINE MOUNT, FRONT W/CLINCH NUT
  • 17
    7519010 SCREW
    SCREW
  • 18
    5137116 MOUNT, ENGINE, REAR
    MOUNT, ENGINE, REAR
  • 19
    3022237 MOUNT, ENGINE INSERT RAD
    MOUNT, ENGINE INSERT RAD
  • 20
    1017384 MOUNT, ENGINE W/CLINCH NUT
    MOUNT, ENGINE W/CLINCH NUT
