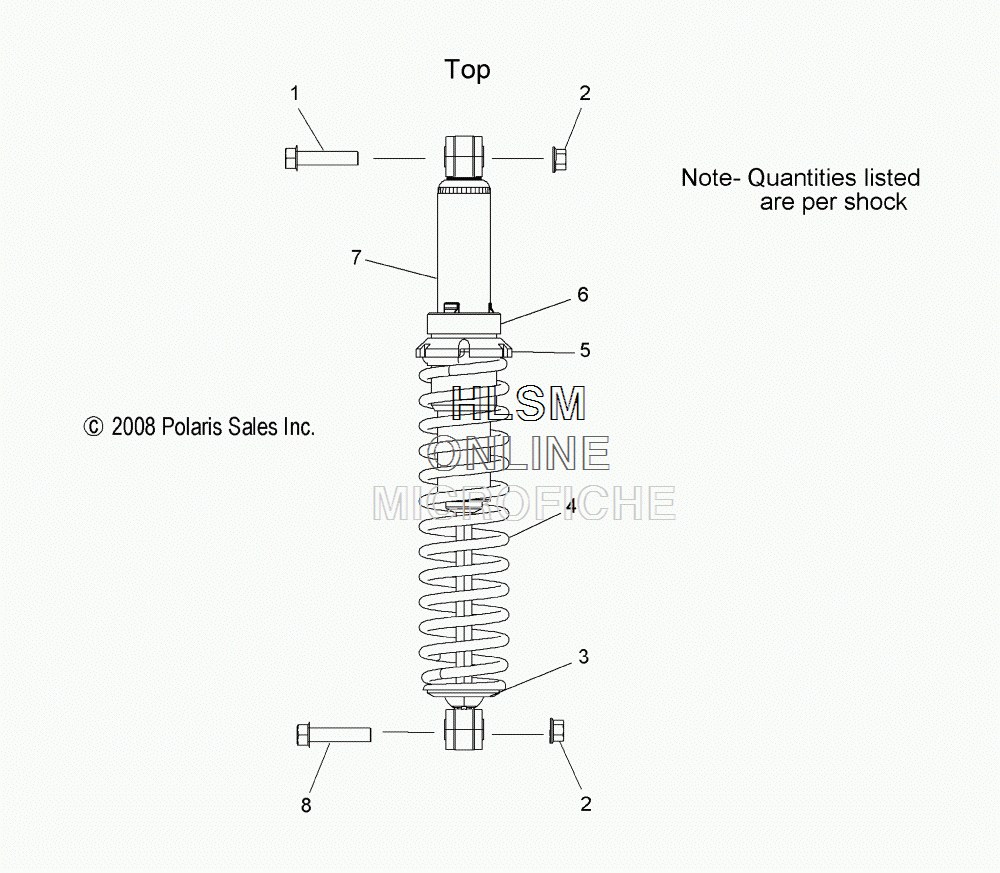

SUSPENSION - IFS SHOCK для Polaris 600 WIDETRAK IQ [S11PU6MSL] - 2011 года выпуска`
-
№АртикулНазвание
-
17518554 SCREWSCREW
-
27547180 NUT, FLANGEDNUT, FLANGED
-
35630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
47041549-133 SPRING, COMPRESSION, WHITESPRING, COMPRESSION, WHITE
-
55431734 RING, SPRING PRELOAD, ADJ.RING, SPRING PRELOAD, ADJ.
-
61500063 RETAINER, SPRING BODY, THREADEDRETAINER, SPRING BODY, THREADED
-
77043289 SHOCK, IFS, MPVSHOCK, IFS, MPV
-
87518278 SCREWSCREW
