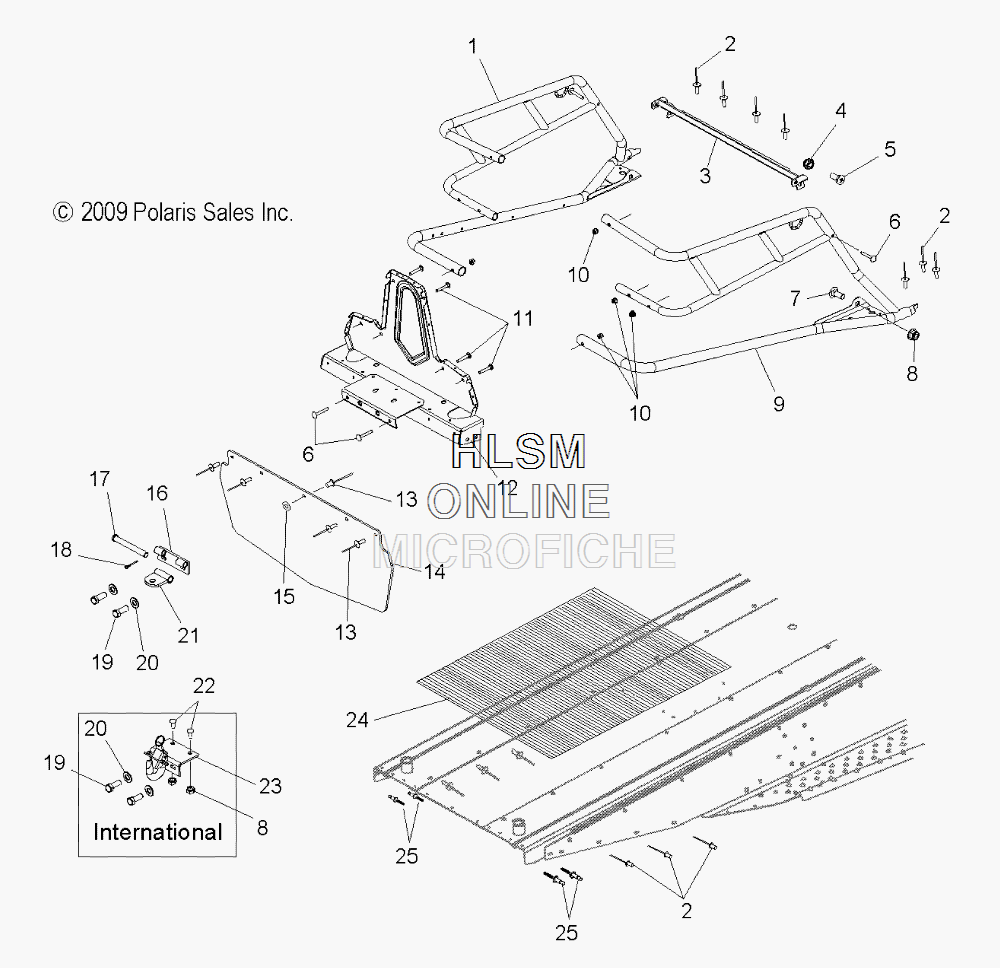

REAR RACK W/ SNOWFLAP для Polaris 600 WIDETRAK IQ INTL [S11PU6MEL] - 2011 года выпуска
-
№АртикулНазвание
-
11017105-458 RACK, SIDE, LEFT HAND, BLACKRACK, SIDE, LEFT HAND, BLACK
-
27661637 RIVETRIVET
-
31017107-458 CROSS MEMBER, FRONT RACK, FLAT BLACKCROSS MEMBER, FRONT RACK, FLAT BLACK
-
47542324 NUT, NYLOKNUT, NYLOK
-
57518216 SCREWSCREW
-
67518632 SCREWSCREW
-
77518494 BOLT, CARRIAGEBOLT, CARRIAGE
-
87547180 NUT, NYLON, FLANGE (QTY. 4 FOR INT'L)NUT, NYLON, FLANGE (QTY. 4 FOR INT'L)
-
91017106-458 RACK, SIDE, RIGHT HAND, FLAT BLACKRACK, SIDE, RIGHT HAND, FLAT BLACK
-
107542153 NUTNUT
-
117517931 BOLT, CARRIAGEBOLT, CARRIAGE
-
121017108-458 PLATE, BACKET, TAILLIGHT, FLAT BLACKPLATE, BACKET, TAILLIGHT, FLAT BLACK
-
137621418 RIVETRIVET
-
145813274 FLAP, SNOWFLAP, SNOW
-
157556034 WASHERWASHER
-
161011624-458 HITCH, BLACKHITCH, BLACK
-
177662209 PIN, CLEVISPIN, CLEVIS
-
187661401 PIN, COTTERPIN, COTTER
-
197512490 SCREWSCREW
-
207552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
211011518-458 HITCH, US, BLACKHITCH, US, BLACK
-
227512490 SCREWSCREW
-
231016543 ASM., HITCH, JASM., HITCH, J
-
245413483 PROTECTOR, BEDPROTECTOR, BED
-
257661846 RIVETRIVET
