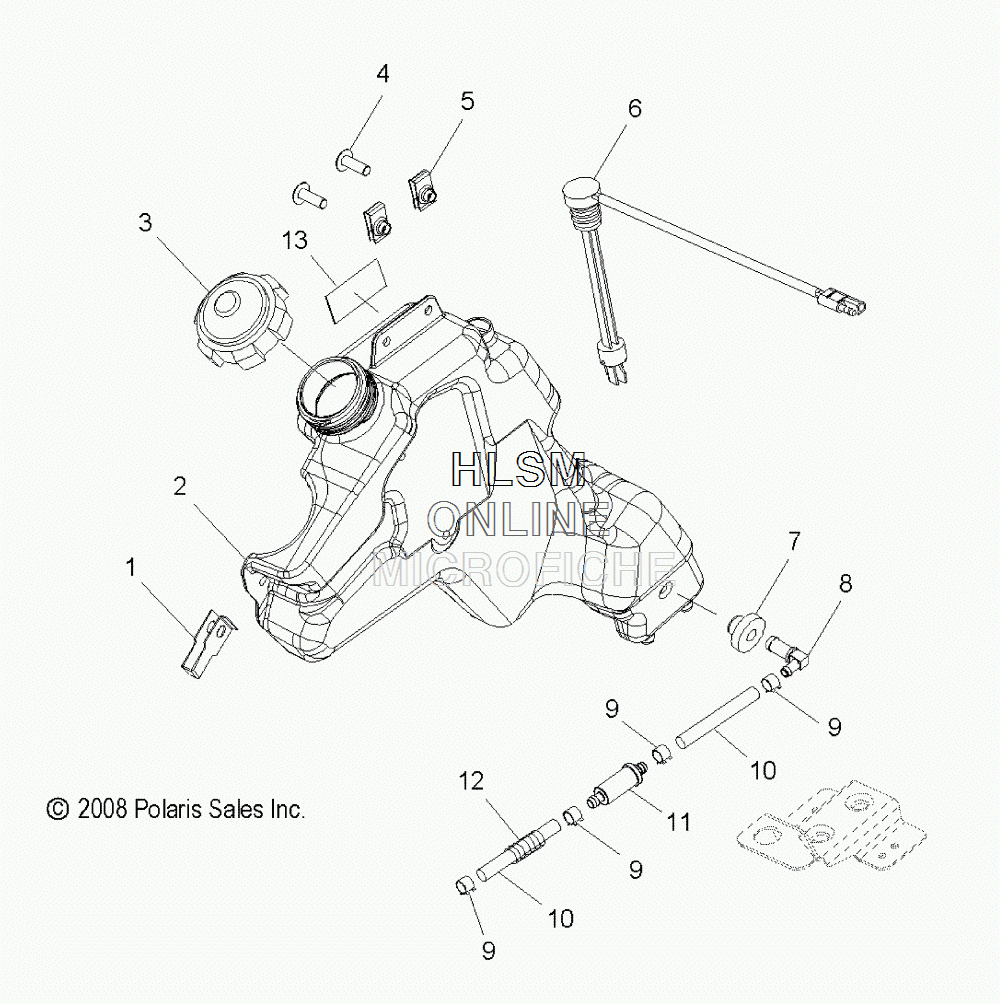

OIL TANK ASSEMBLY для Polaris 600 SHIFT 136 [S11PR6HSA] - 2011 года выпуска`
-
№АртикулНазвание
-
17670145 NUT, U-TYPENUT, U-TYPE
-
22520650 ASM., OIL TANK (INCL. 1,6,7,8)ASM., OIL TANK (INCL. 1,6,7,8)
-
31240094 CAP, OIL, VENTEDCAP, OIL, VENTED
-
47515199 SCREWSCREW
-
57670096 NUT, CHIMNEYNUT, CHIMNEY
-
64110134 SENSOR, OIL LEVELSENSOR, OIL LEVEL
-
77052362 GROMMET, FLANGEDGROMMET, FLANGED
-
87052208 FITTINGFITTING
-
97080307 CLAMP, HOSECLAMP, HOSE
-
108450003-1525 LINE, FUELLINE, FUEL
-
112530009 FILTERFILTER
-
124010051-100 CONDUIT, CONVOLUTED (SVC)CONDUIT, CONVOLUTED (SVC)
-
137173616 DECAL, OIL, VES, GOLDDECAL, OIL, VES, GOLD
