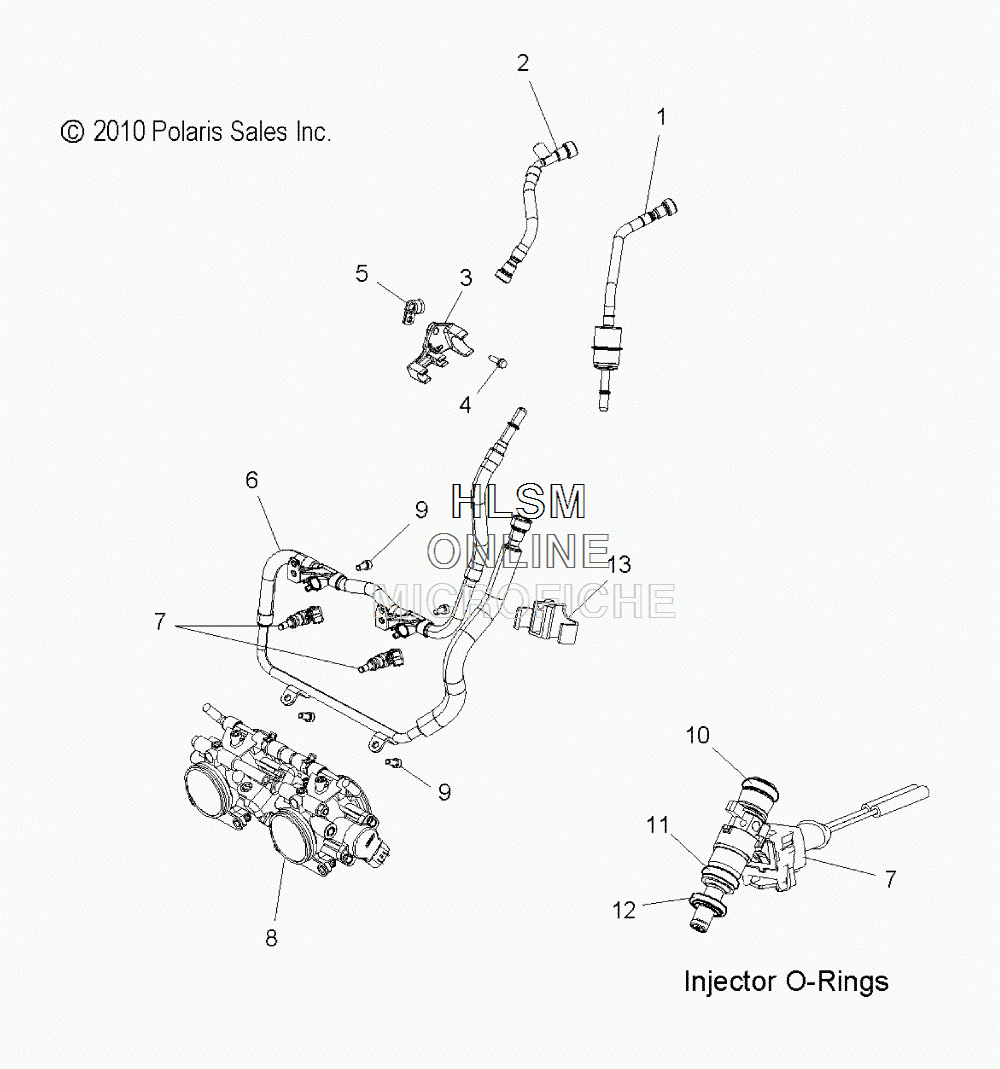

THROTTLE BODY ASSEMBLY W/RAIL AND LINES для Polaris 600 RUSH [S11BF6NSA] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    2520918 ASM., FUEL LINE W/FILTER
    ASM., FUEL LINE W/FILTER
  • 2
    2521065 ASM., FUEL LINE, RETURN
    ASM., FUEL LINE, RETURN
  • 3
    1203256 ASM., FUEL FILTER RETAINER
    ASM., FUEL FILTER RETAINER
  • 3
    5812996 PAD, FUEL FILTER
    PAD, FUEL FILTER
  • 4
    7512098 SCREW
    SCREW
  • 5
    7080573 CLAMP, RUBBER COATED
    CLAMP, RUBBER COATED
  • 6
    2521075 ASM., FUEL RAIL
    ASM., FUEL RAIL
  • 7
    2203894-053 KIT, INJECTOR, YELLOW
    KIT, INJECTOR, YELLOW
  • 7
    2203894-015 KIT, INJECTOR, RED
    KIT, INJECTOR, RED
  • 7
    2203894-027 KIT, INJECTOR, BLUE
    KIT, INJECTOR, BLUE
  • 8
    1203978 ASM., THROTTLE BODY
    ASM., THROTTLE BODY
  • 9
    7517431 SCREW
    SCREW
  • 10
    1500198 O-RING (BLACK)
    O-RING (BLACK)
  • 11
    5412891 O-RING (BROWN)
    O-RING (BROWN)
  • 12
    5436287 BUSHING, RUBBER (GREEN)
    BUSHING, RUBBER (GREEN)
  • 13
    7081635 CLIP, HOSE
    CLIP, HOSE
