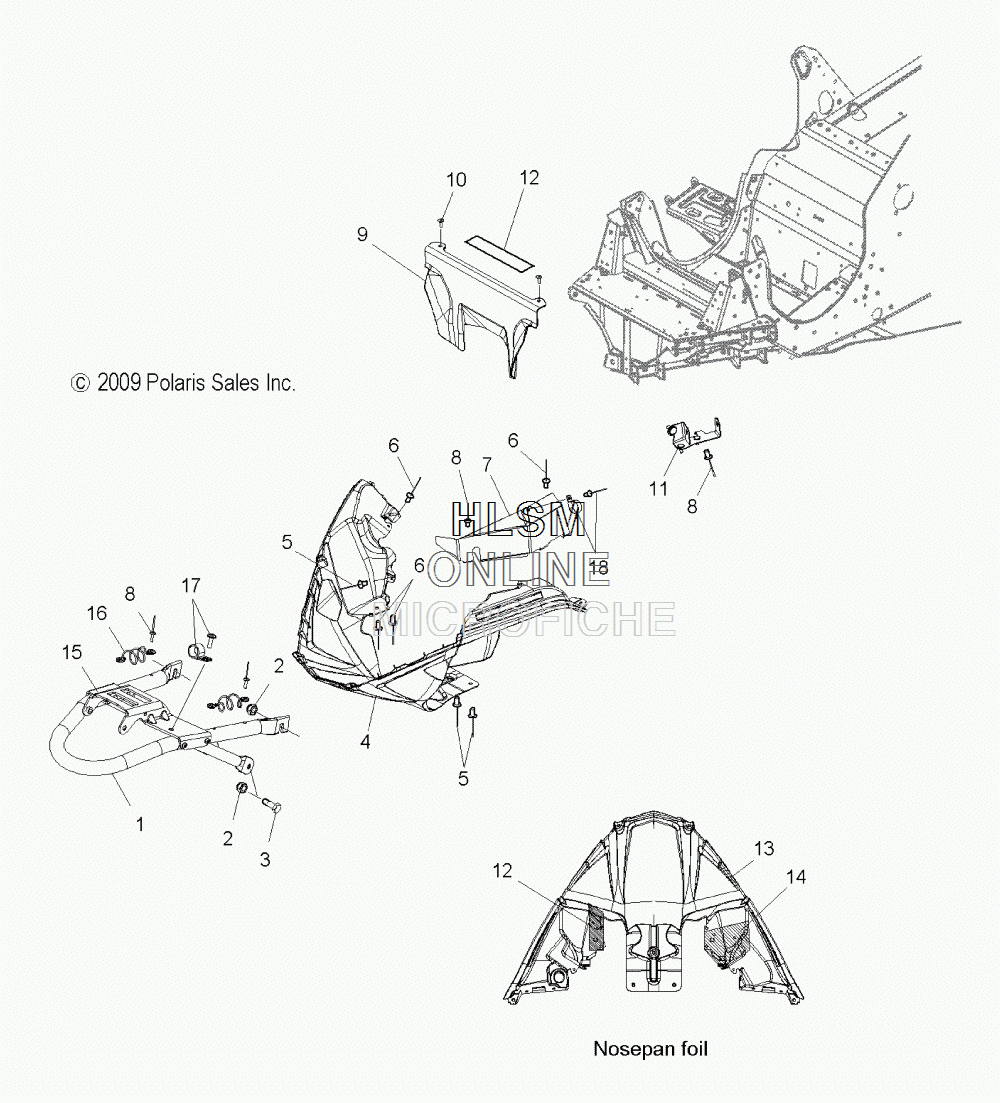

BUMPER - FRONT W/ NOSEPAN- FOAM- AND FOIL для Polaris 600 RMK 144 ES [S11PK6HSL] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    1016481 ASM., BUMPER, FRONT, TUBULAR (INCL. 15, 16)
    ASM., BUMPER, FRONT, TUBULAR (INCL. 15, 16)
  • 2
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 3
    7512371 BOLT
    BOLT
  • 4
    2633970 ASM., NOSEPAN W/FOIL (INCL. 12,13,14, REFLECTORS)
    ASM., NOSEPAN W/FOIL (INCL. 12,13,14, REFLECTORS)
  • 5
    7621467 RIVET
    RIVET
  • 6
    7621418 RIVET
    RIVET
  • 7
    5252638 SHIELD, HEAD PIPE/WIRE HARNESS
    SHIELD, HEAD PIPE/WIRE HARNESS
  • 8
    7661637 RIVET
    RIVET
  • 9
    5437827-070 CLOSEOFF, NOSEPAN, REAR, BLACK
    CLOSEOFF, NOSEPAN, REAR, BLACK
  • 10
    7518284 SCREW
    SCREW
  • 11
    1823450 MOUNT, SWAYBAR, LEFT HAND
    MOUNT, SWAYBAR, LEFT HAND
  • 11
    1823451 MOUNT, SWAYBAR, RIGHT HAND
    MOUNT, SWAYBAR, RIGHT HAND
  • 12
    5812772 FOIL, SIDE PANEL
    FOIL, SIDE PANEL
  • 13
    5813435 FIBER
    FIBER
  • 14
    5813522 FOIL, NOSEPAN, RIGHT HAND
    FOIL, NOSEPAN, RIGHT HAND
  • 15
    1017254 ASM., HINGE BRACKET
    ASM., HINGE BRACKET
  • 15
    7661637 RIVET
    RIVET
  • 16
    7081133 CABLE, HOOD RETAINER
    CABLE, HOOD RETAINER
  • 17
    7080880 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    7518912 SCREW
    SCREW
  • 18
    7080807 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    7621431 RIVET
    RIVET
