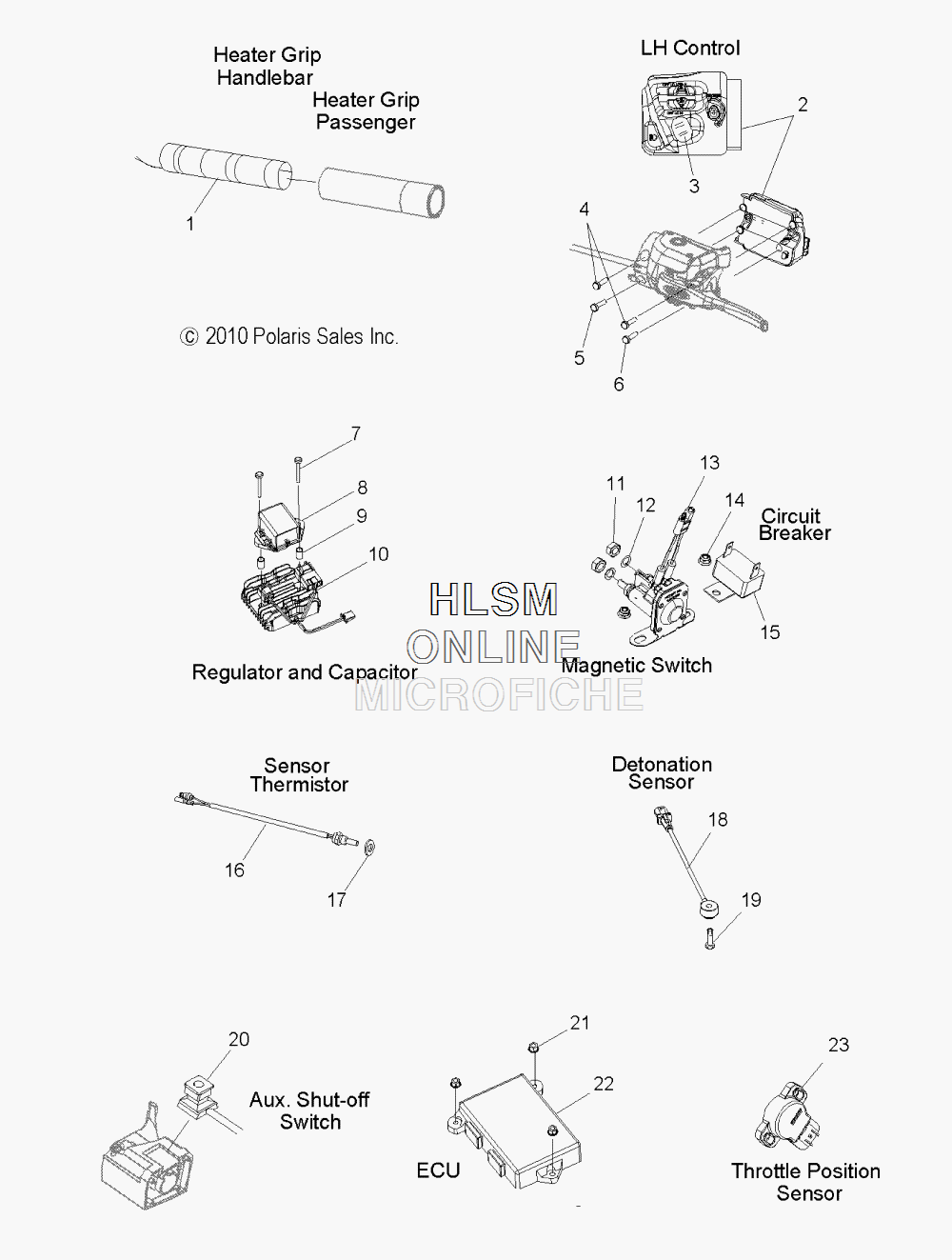

ELECTRICAL - SENSORS AND SWITCHES для Polaris 600 IQ LXT [S11PT6HSL] - 2011 года выпуска`
-
№АртикулНазвание
-
12410778 HEATER, GRIP, LO/MED/HIHEATER, GRIP, LO/MED/HI
-
12410548 HEATER, GRIP, PASSENGERHEATER, GRIP, PASSENGER
-
22010290 ASM., LEFT HAND CONTROL (INCL. 3)ASM., LEFT HAND CONTROL (INCL. 3)
-
35433291 BUTTON, SWITCH, HI/LO, LEFT HAND CONTROLBUTTON, SWITCH, HI/LO, LEFT HAND CONTROL
-
47517441 SCREW, .75SCREW, .75
-
57512078 SCREW, 1.12SCREW, 1.12
-
67517566 SCREW, 1.50SCREW, 1.50
-
77518157 SCREWSCREW
-
84011114 CAPACITORCAPACITOR
-
95010339 SPACERSPACER
-
104012930 REGULATOR, V7, SDI AAAREGULATOR, V7, SDI AAA
-
117542105 NUTNUT
-
127552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
134012358 SWITCH, MAGNETICSWITCH, MAGNETIC
-
147518287 NUTNUT
-
152434009 BREAKER, CIRCUITBREAKER, CIRCUIT
-
164010868 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
177556357 WASHERWASHER
-
182410369 SENSOR, DETONATIONSENSOR, DETONATION
-
197517262 SCREWSCREW
-
204011540 SWITCH, AUXILLARY SHUT-OFFSWITCH, AUXILLARY SHUT-OFF
-
217547274 NUT, FLANGE NYLOKNUT, FLANGE NYLOK
-
224011518 ECUECU
-
233131591 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
