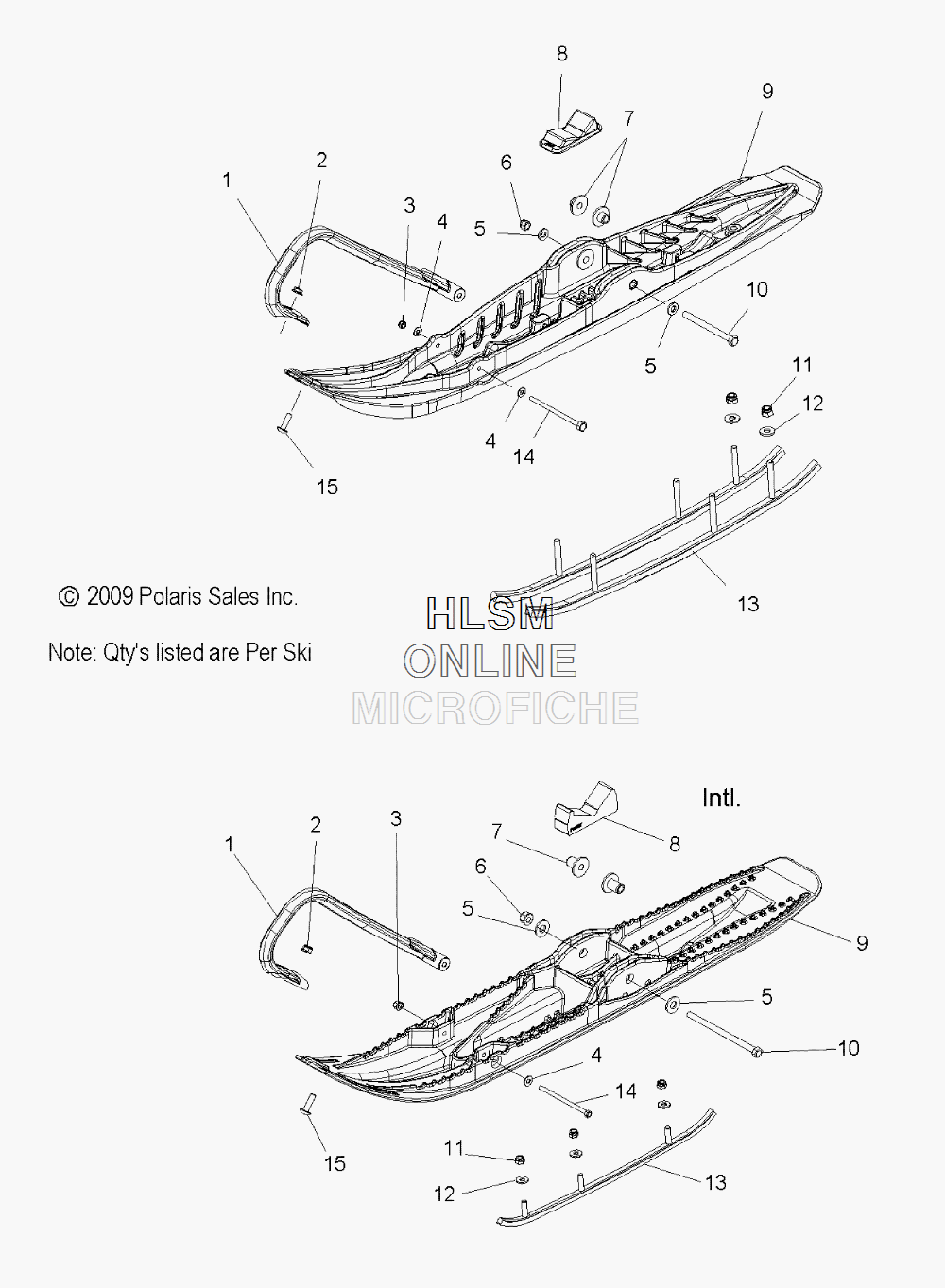

SKI ASSEMBLY для Polaris 600 IQ LXT INTL [S11PT6HEL] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    5435681-070 TOE, PLASTIC SKI, BLACK
    TOE, PLASTIC SKI, BLACK
  • 2
    7542343 NUT, FLANGE (INT'L)
    NUT, FLANGE (INT'L)
  • 3
    7542153 NUT, NYLOK, FLANGE (INT'L)
    NUT, NYLOK, FLANGE (INT'L)
  • 4
    7558301 WASHER, FLAT (QTY. 1 INT'L)
    WASHER, FLAT (QTY. 1 INT'L)
  • 5
    7556130 WASHER
    WASHER
  • 6
    7547263 NUT, NYLOK
    NUT, NYLOK
  • 7
    5134797 BUSHING
    BUSHING
  • 8
    5412794 STOP, SKI RUBBER (INT'L)
    STOP, SKI RUBBER (INT'L)
  • 9
    1822889-070 ASM., SKI, WIDE, BLACK (INCL. 6) (INT'L)
    ASM., SKI, WIDE, BLACK (INCL. 6) (INT'L)
  • 10
    7518481 SCREW
    SCREW
  • 11
    7542324 NUT, NYLOK (QTY. 3 INT'L)
    NUT, NYLOK (QTY. 3 INT'L)
  • 12
    7555843 WASHER, FLAT (QTY. 3 INT'L)
    WASHER, FLAT (QTY. 3 INT'L)
  • 13
    2875723 KIT, SKAG, SINGLE, 3 INCH, 60 DEGREE (PAIR) (INT'L)
    KIT, SKAG, SINGLE, 3 INCH, 60 DEGREE (PAIR) (INT'L)
  • 14
    7518655 SCREW (INT'L)
    SCREW (INT'L)
  • 15
    7518070 SCREW (INT'L)
    SCREW (INT'L)
