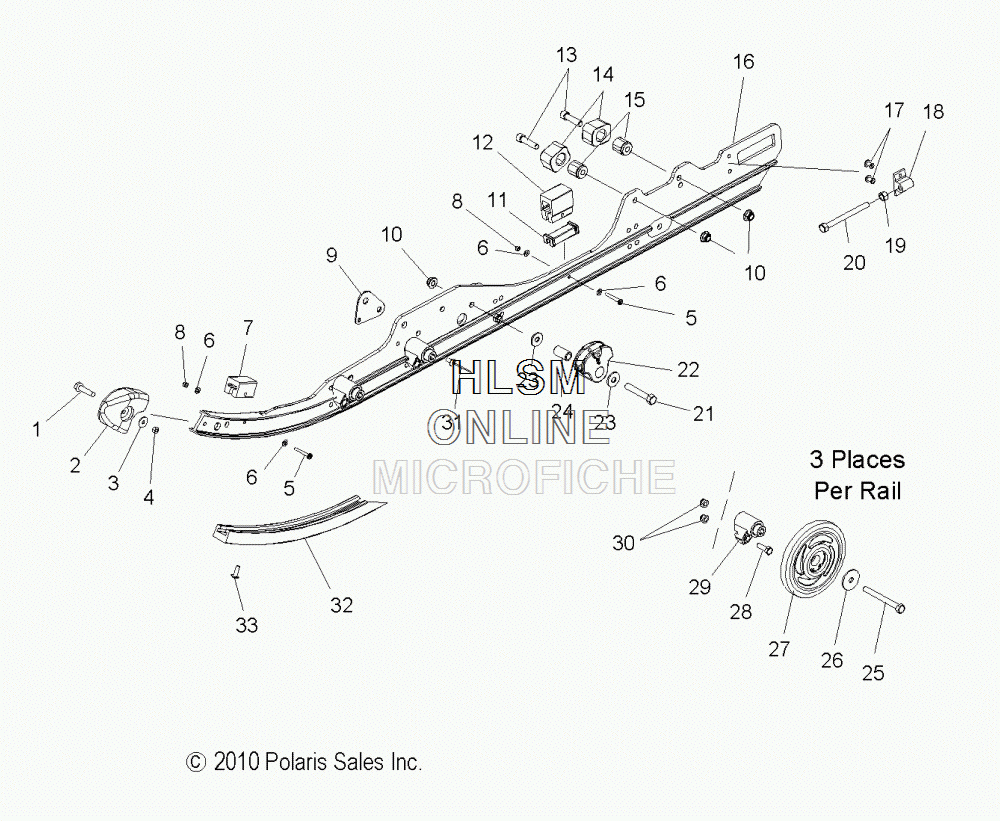

SUSPENSION - RAIL MOUNTING для Polaris 550 TOURING INTL [S11PT5BEL] - 2011 года выпуска
-
№АртикулНазвание
-
17518993 SCREWSCREW
-
25438374 CAP, RAIL TIPCAP, RAIL TIP
-
37556064 WASHER, FLATWASHER, FLAT
-
47547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
57510504 SCREWSCREW
-
67555783 WASHER, FLATWASHER, FLAT
-
75521499 BUMPER, JOUNCE, FRONTBUMPER, JOUNCE, FRONT
-
87541925 NUT, NYLOKNUT, NYLOK
-
95248414 BRACKET, RAIL REINFORCEMENTBRACKET, RAIL REINFORCEMENT
-
107547263 NUT, NYLOKNUT, NYLOK
-
115432946 LINER, BUMPERLINER, BUMPER
-
125521498 BUMPER, JOUNCE, REARBUMPER, JOUNCE, REAR
-
137515537 BOLTBOLT
-
145410925 BUMPER, PIVOT ARMBUMPER, PIVOT ARM
-
155131113 MOUNT, BUMPERMOUNT, BUMPER
-
161542782 ASM., RAIL, LEFT HAND (INCL. 5-8,11,12,17,18)ASM., RAIL, LEFT HAND (INCL. 5-8,11,12,17,18)
-
161542783 ASM., RAIL, RIGHT HAND (INCL. 5-8,11,12,17,18)ASM., RAIL, RIGHT HAND (INCL. 5-8,11,12,17,18)
-
177621501 RIVETRIVET
-
185130530 BLOCK, IDLER BOLT ADJUSTINGBLOCK, IDLER BOLT ADJUSTING
-
197542404 NUTNUT
-
207517227 SCREWSCREW
-
217515415 SCREWSCREW
-
225434334 GUIDE, SPRING, SQUAREGUIDE, SPRING, SQUARE
-
237555983 WASHERWASHER
-
245333948 SPACERSPACER
-
257515346 SCREWSCREW
-
267556387 WASHER, SPRINGWASHER, SPRING
-
271590387-070 ASM., WHEEL, SCROLLED, BLACKASM., WHEEL, SCROLLED, BLACK
-
277710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
273514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
287515317 BOLTBOLT
-
295631446 BLOCK, MOUNT, WHEELBLOCK, MOUNT, WHEEL
-
307542324 NUT, NYLOKNUT, NYLOK
-
317661845 RIVETRIVET
-
325521633 SLIDERSLIDER
-
337515199 SCREWSCREW
