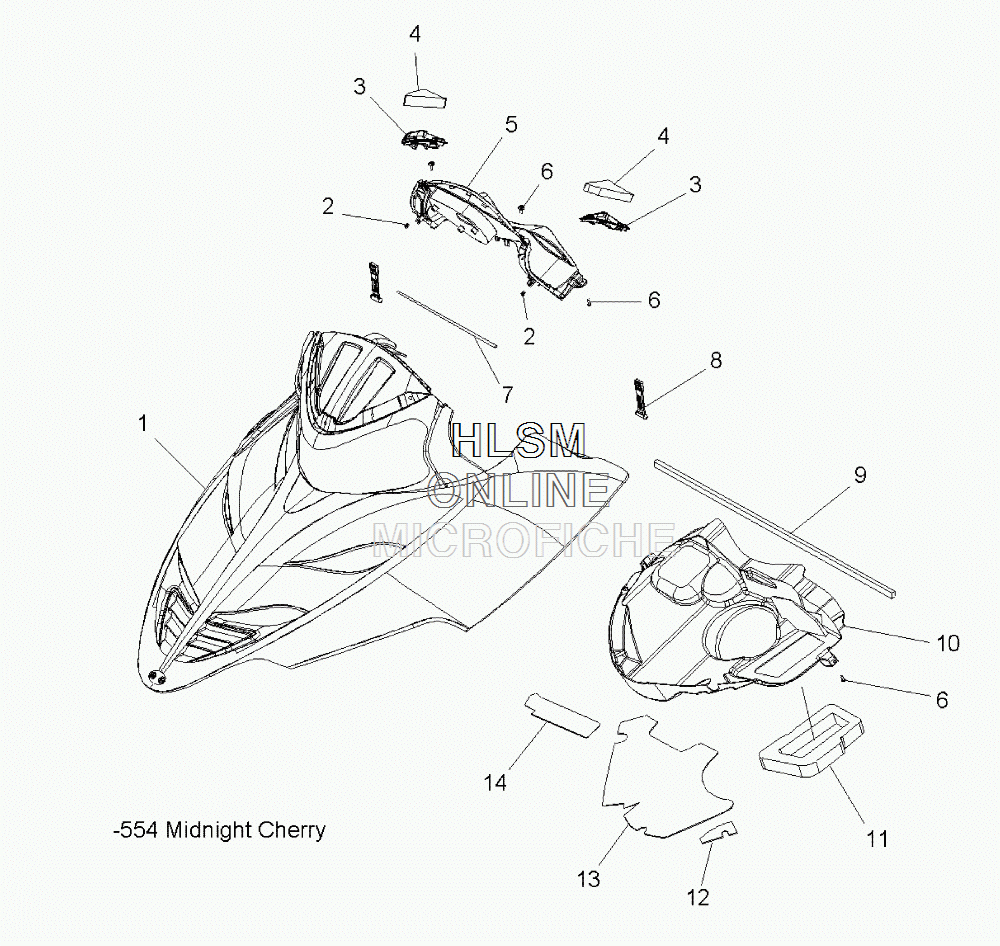

BODY- HOOD ASM. для Polaris IQ TURBO DRAGON (2010) [S10PP7FSL] - 2010 года выпуска`
-
№АртикулНазвание
-
15437016-571 HOOD, IQ FS (MATTE RED) (NO FOAM/FOIL/DECALS)HOOD, IQ FS (MATTE RED) (NO FOAM/FOIL/DECALS)
-
12633318 KIT, FS/FST, FOIL/FOAM, HOOD (SEE BODY, HOOD FOAM AND FOIL PAGE)KIT, FS/FST, FOIL/FOAM, HOOD (SEE BODY, HOOD FOAM AND FOIL PAGE)
-
27670112 NUT, U-TYPENUT, U-TYPE
-
35435776 FILTER, CARTRIDGE, RIGHT HANDFILTER, CARTRIDGE, RIGHT HAND
-
35435777 FILTER, CARTRIDGE, LEFT HANDFILTER, CARTRIDGE, LEFT HAND
-
45812688 FILTER, FOAMFILTER, FOAM
-
55435789-070 POD, INSTRUMENTPOD, INSTRUMENT
-
67518577 SCREWSCREW
-
75521697-350 SEAL, BULBSEAL, BULB
-
85433150 STRAPSTRAP
-
95812782 FOAM, SEALFOAM, SEAL
-
102633209 ASM., COVER, HEADLIGHT ACCESS (INCL. 9,11-14)ASM., COVER, HEADLIGHT ACCESS (INCL. 9,11-14)
-
115812777 FOAM, INTAKE COVERFOAM, INTAKE COVER
-
125813051 FABRIC, HEAT, HEADLIGHT, ACCESS #3FABRIC, HEAT, HEADLIGHT, ACCESS #3
-
135812993 FABRIC, HEADLIGHT ACCESS COVERFABRIC, HEADLIGHT ACCESS COVER
-
145813013 FABRIC, HEAT HEADLIGHT ACCESS #2FABRIC, HEAT HEADLIGHT ACCESS #2
