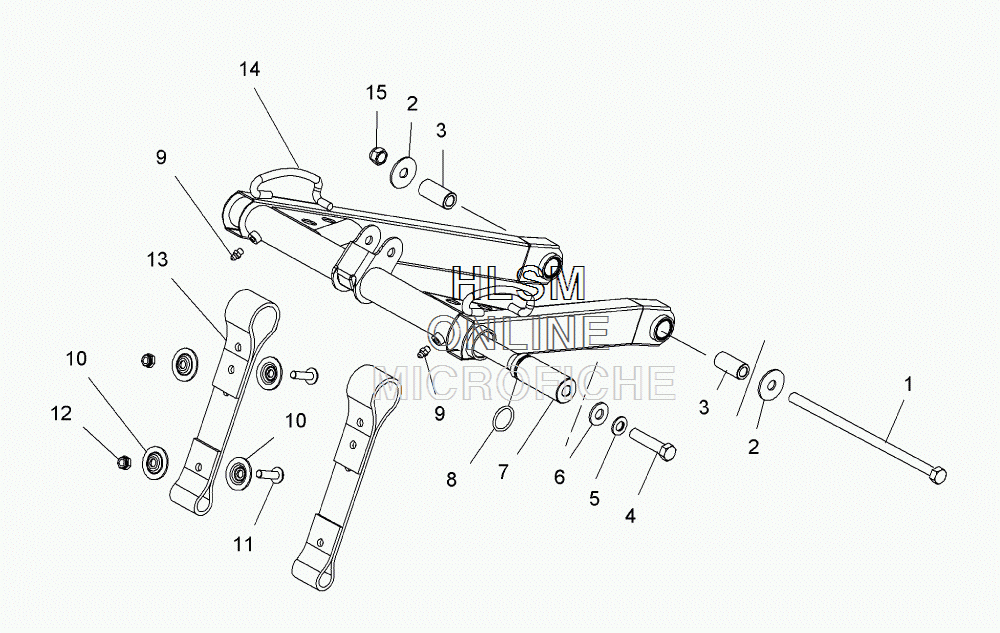

SUSPENSION- TORQUE ARM- FRONT для Polaris FST IQ TOURING - BLUE (2010) [S10PT7FSL] - 2010 года выпуска`
-
№АртикулНазвание
-
17518339 SCREWSCREW
-
27556156 WASHERWASHER
-
35133365 SHAFTSHAFT
-
47518261 SCREWSCREW
-
57552614 WASHER, LOCKWASHER, LOCK
-
67555984 WASHER, FLATWASHER, FLAT
-
75133892 SHAFT, UPPERSHAFT, UPPER
-
85411411 O-RINGO-RING
-
97080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
105220646 WASHER, DOMEDWASHER, DOMED
-
117518070 SCREWSCREW
-
127542344 NUT, NYLOKNUT, NYLOK
-
135412818 STRAP, LIMITERSTRAP, LIMITER
-
141542579-067 ASM., ARM, TORQUE, FRONT (BLACK)ASM., ARM, TORQUE, FRONT (BLACK)
-
157542503 NUT, FLEXLOCNUT, FLEXLOC
