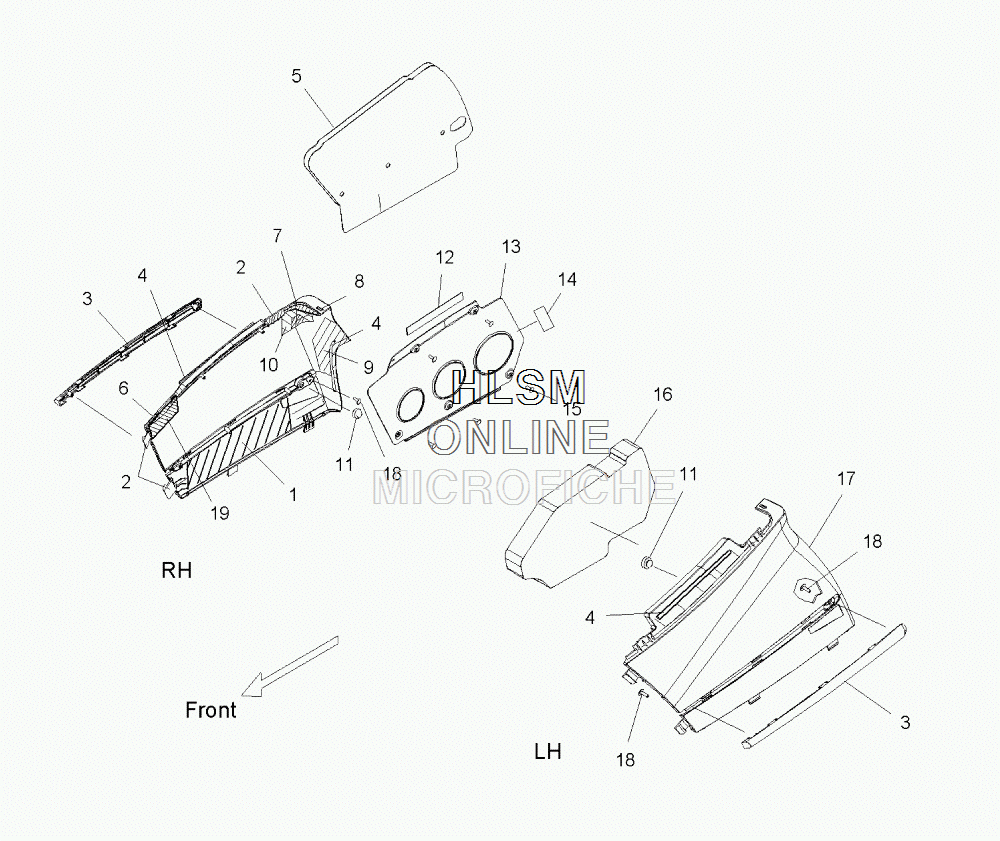

BODY- SIDE PANELS для Polaris 800 SWITCHBACK (2010) [S10PR8ESA] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    5812942 FOIL, SIDE PANEL
    FOIL, SIDE PANEL
  • 2
    5812833 TAB, FOIL, SIDE PANEL
    TAB, FOIL, SIDE PANEL
  • 3
    5435787-070 BUMPER, SIDE (BLACK) LEFT HAND
    BUMPER, SIDE (BLACK) LEFT HAND
  • 3
    5435788-070 BUMPER, SIDE (BLACK) RIGHT HAND
    BUMPER, SIDE (BLACK) RIGHT HAND
  • 4
    5521697-350 SEAL, BULB 350 CM
    SEAL, BULB 350 CM
  • 5
    2633726 ASM., FOAM FIBER, HI TEMP W/SLIT, RIGHT HAND
    ASM., FOAM FIBER, HI TEMP W/SLIT, RIGHT HAND
  • 6
    2633972-070 ASM., SIDE PANEL, BLACK, RIGHT HAND (INCL. 1,2,4,7-10)
    ASM., SIDE PANEL, BLACK, RIGHT HAND (INCL. 1,2,4,7-10)
  • 7
    5812834 FOIL, RIB, SIDE PANEL
    FOIL, RIB, SIDE PANEL
  • 8
    5812835 FOIL, SIDE, SIDE PANEL
    FOIL, SIDE, SIDE PANEL
  • 9
    5812744 FOIL, FENDER, RIGHT HAND
    FOIL, FENDER, RIGHT HAND
  • 10
    5812832 FOIL, SIDE PANEL, REAR
    FOIL, SIDE PANEL, REAR
  • 11
    5410414 BUMPER, RUBBER
    BUMPER, RUBBER
  • 12
    5813206 FOAM/FIBER
    FOAM/FIBER
  • 13
    5250214 SHIELD, HEAT, PANEL, RIGHT HAND
    SHIELD, HEAT, PANEL, RIGHT HAND
  • 14
    5810947 FOAM, SEAL
    FOAM, SEAL
  • 15
    7517441 SCREW
    SCREW
  • 16
    5813085 FOAM, SIDE PANEL, LEFT HAND
    FOAM, SIDE PANEL, LEFT HAND
  • 17
    2633971-070 ASM., SIDE PANEL (BLACK) LEFT HAND (INCL. 4,16)
    ASM., SIDE PANEL (BLACK) LEFT HAND (INCL. 4,16)
  • 18
    7518238 SCREW
    SCREW
  • 19
    5813435 FIBER
    FIBER
