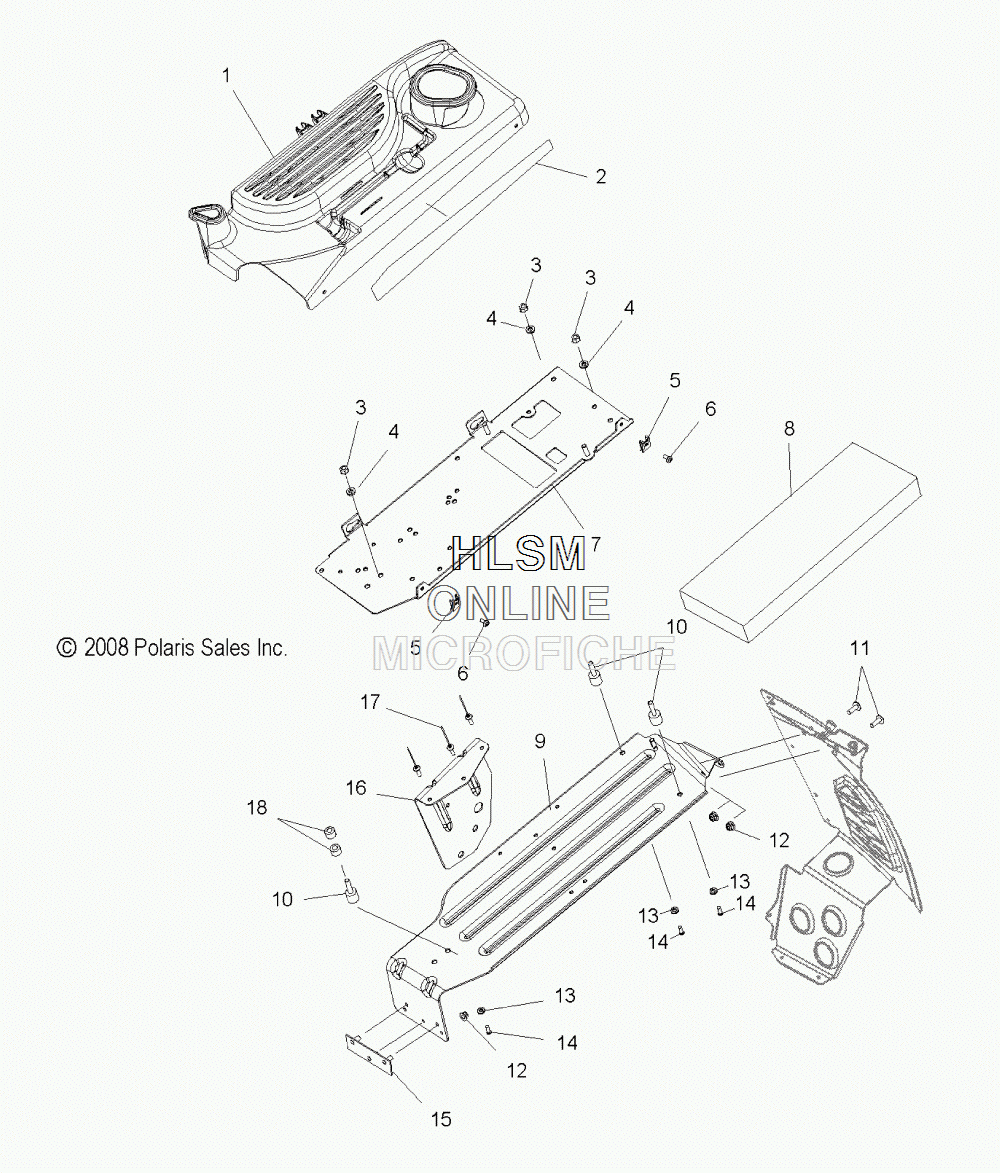

CHASSIS- CLUTCH GUARD AND COVER для Polaris 800 RMK 144 INTERNATIONAL (2010) [S10PM8ESA] - 2010 года выпуска`
-
№АртикулНазвание
-
15436633 COVER, CENTER ELECTRICALCOVER, CENTER ELECTRICAL
-
27174658 DECAL, CLUTCH WARNING/BELT REMOVALDECAL, CLUTCH WARNING/BELT REMOVAL
-
37546701 NUTNUT
-
47552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
57670157 NUT, U-TYPENUT, U-TYPE
-
67517561 SCREWSCREW
-
71015761 ASM., PLATE, ELECTRIC CENTER W/STUDSASM., PLATE, ELECTRIC CENTER W/STUDS
-
85813136 FOAMFOAM
-
91016030 ASM., CLUTCH GUARD W/STUDASM., CLUTCH GUARD W/STUD
-
103021964 MOUNT, RUBBERMOUNT, RUBBER
-
117518281 SCREWSCREW
-
127518287 NUT, NYLON, FLANGENUT, NYLON, FLANGE
-
137556250 WASHERWASHER
-
147518430 SCREWSCREW
-
151015587 ASM., BACKER, CLUTCH GUARD W/STUDASM., BACKER, CLUTCH GUARD W/STUD
-
165252581 SHIELD, TPS ELECTRICAL CENTERSHIELD, TPS ELECTRICAL CENTER
-
177661637 RIVETRIVET
-
187555932 WASHER, NYLON (BLACK)WASHER, NYLON (BLACK)
