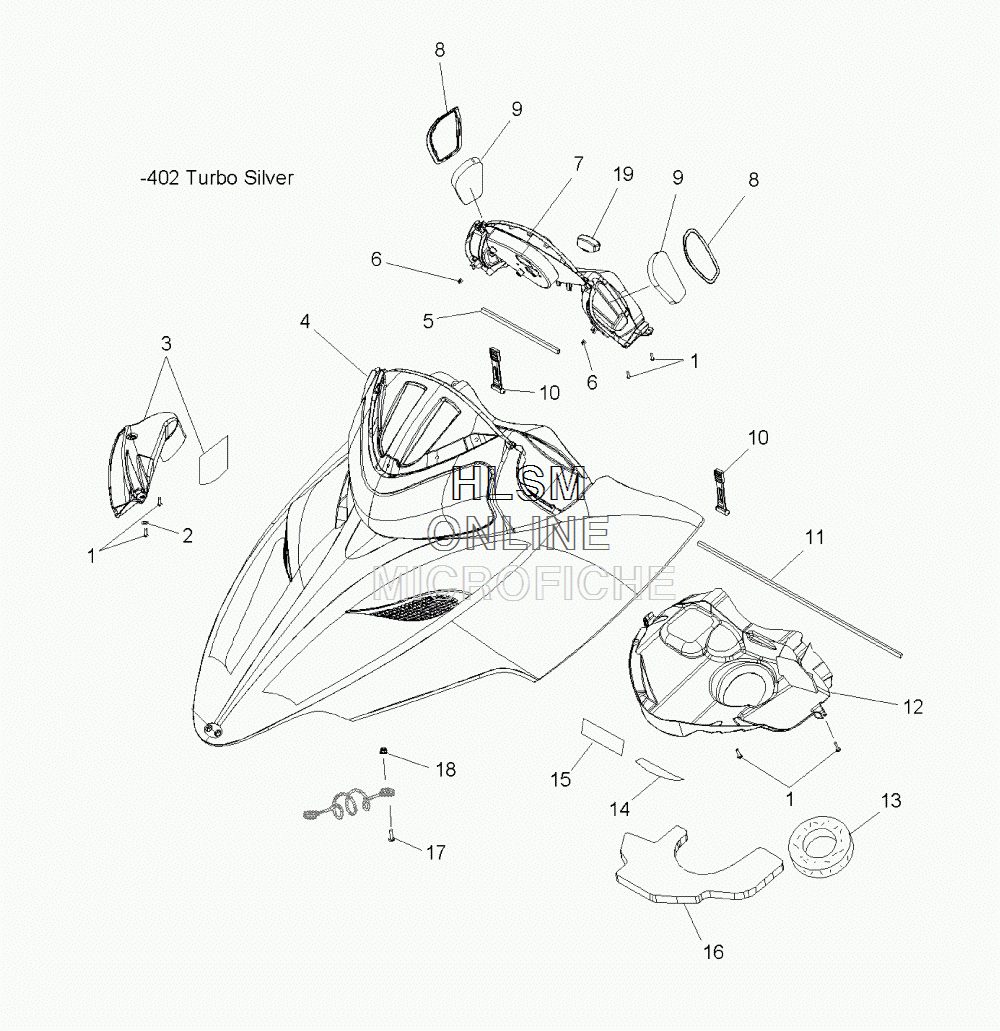

BODY- HOOD ASM. для Polaris 800 IQ (2010) [S10PB8ESA] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    7518577 SCREW
    SCREW
  • 2
    7571602 WASHER
    WASHER
  • 3
    2633060 ASM., BRAKE DUCT
    ASM., BRAKE DUCT
  • 3
    5812758 FOIL
    FOIL
  • 4
    2633728-402 ASM., HOOD, TURBO SILVER (INCL. FOAM/FOIL)
    ASM., HOOD, TURBO SILVER (INCL. FOAM/FOIL)
  • 5
    5521697-350 SEAL, BULB, 350 CM
    SEAL, BULB, 350 CM
  • 6
    7670112 NUT, U-TYPE
    NUT, U-TYPE
  • 7
    5437049-070 POD, INSTRUMENT (BLACK)
    POD, INSTRUMENT (BLACK)
  • 8
    5437372 VENT, INTAKE, RIGHT HAND
    VENT, INTAKE, RIGHT HAND
  • 8
    5437371 VENT, INTAKE, LEFT HAND
    VENT, INTAKE, LEFT HAND
  • 9
    5813248 FOAM, FILTER, INLET
    FOAM, FILTER, INLET
  • 10
    5433150 STRAP
    STRAP
  • 11
    5812782 SEAL-FOAM, 35 IN.
    SEAL-FOAM, 35 IN.
  • 12
    2634005 ASM., HEADLIGHT ACCESS COVER (INCL. 11,13-16)
    ASM., HEADLIGHT ACCESS COVER (INCL. 11,13-16)
  • 13
    5813186 FOAM, CHIMNEY
    FOAM, CHIMNEY
  • 14
    5812937 FOIL, HEADLIGHT ACCESS COVER, #1
    FOIL, HEADLIGHT ACCESS COVER, #1
  • 15
    5812938 FOIL, HEADLIGHT ACCESS COVER, #2
    FOIL, HEADLIGHT ACCESS COVER, #2
  • 16
    5813542 FOAM, HEADLIGHT ACCESS COVER
    FOAM, HEADLIGHT ACCESS COVER
  • 17
    7518281 SCREW
    SCREW
  • 18
    7518287 NUT
    NUT
  • 19
    5438301 COVER, HEADLIGHT ADJUSTER
    COVER, HEADLIGHT ADJUSTER
