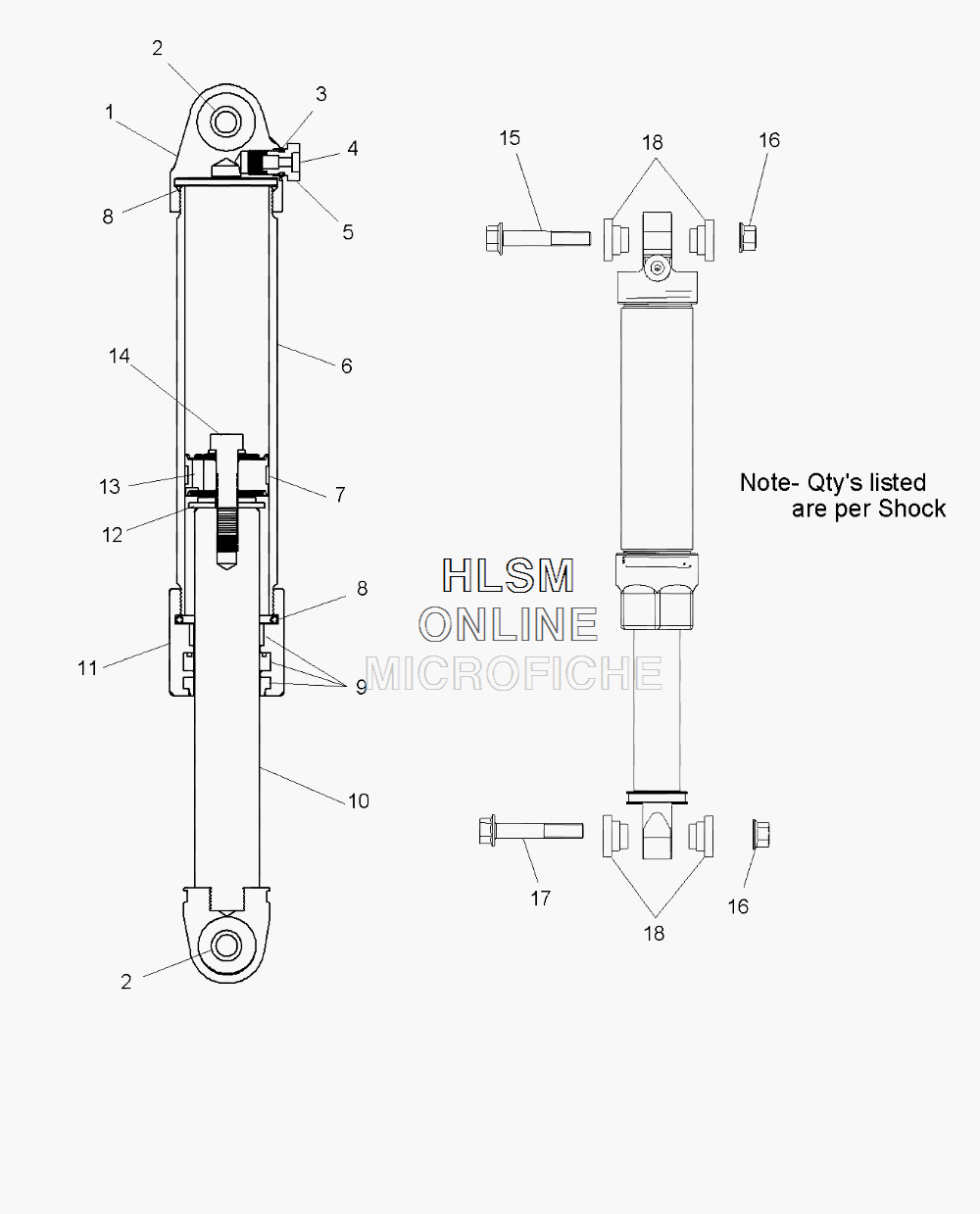

SUSPENSION- SHOCK- IFS [7043490] для Polaris 800 DRAGON RMK 155 (2010) [S10PG8] - 2010 года выпуска`
-
№АртикулНазвание
-
187043490 SHOCK, IFSSHOCK, IFS
-
11800273 BODY LOOPBODY LOOP
-
21800040 BEARING, ENDBEARING, END
-
21800041 RING, SNAP, END BEARINGRING, SNAP, END BEARING
-
31800108 O-RINGO-RING
-
41800109 SCREW, BUTTEN HEADSCREW, BUTTEN HEAD
-
51800107 VALVE, NEEDLEVALVE, NEEDLE
-
61800285 BODY (QTY. PER)BODY (QTY. PER)
-
71800029 BAND, WEARBAND, WEAR
-
81800030 O-RING, BODYO-RING, BODY
-
91800320 ASM., SEAL REBUILD (INCL. 8, O-RING, U-CUP, WIPER)ASM., SEAL REBUILD (INCL. 8, O-RING, U-CUP, WIPER)
-
101800317 ASM., SHAFT/EYELETASM., SHAFT/EYELET
-
111800277 SEAL, HEADSEAL, HEAD
-
121800276 WASHERWASHER
-
131800130 ASM., PISTON W/BAND (INCL. 7)ASM., PISTON W/BAND (INCL. 7)
-
141800275 BOLTBOLT
-
157518554 SCREWSCREW
-
167547180 NUT, FLANGE (QTY. PER)NUT, FLANGE (QTY. PER)
-
177518278 SCREWSCREW
-
185135396 SPACERSPACER
