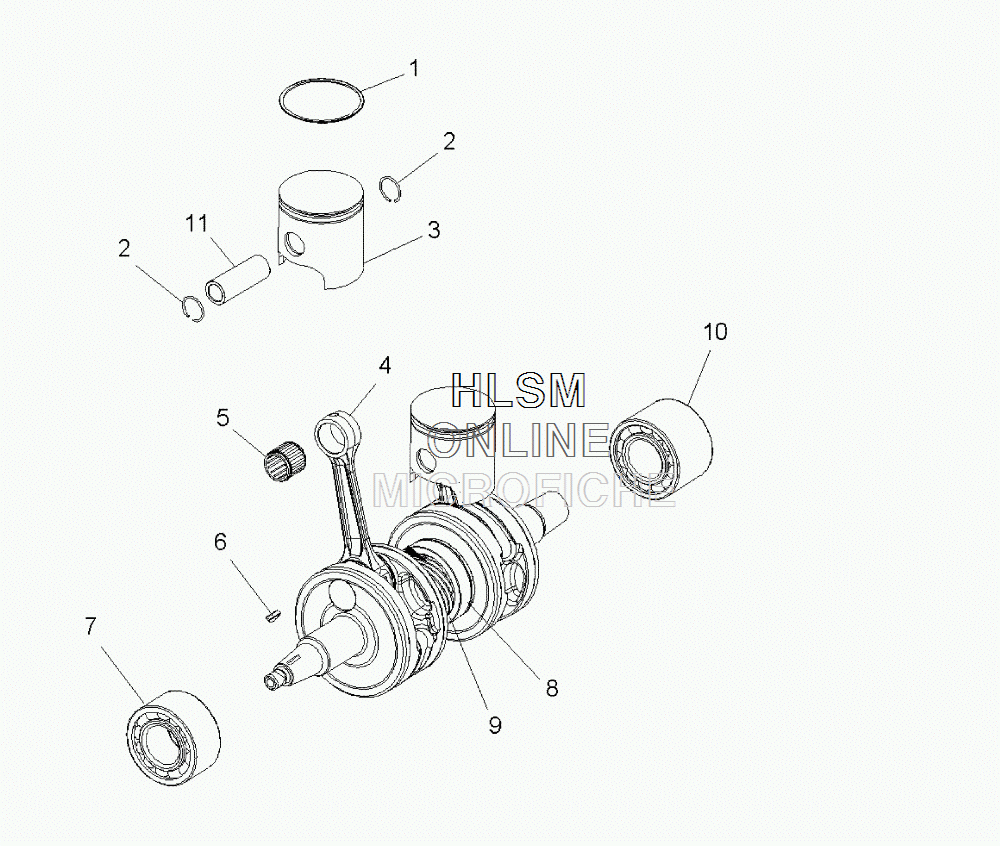

PISTON AND CRANKSHAFT для Polaris 700 RMK 155 (2010) [S10PM7JSA] - 2010 года выпуска

  • №
    Артикул
    Название
  • 6
    2203578 KIT, CRANKSHAFT (INCL. 4,5,7-10)
    KIT, CRANKSHAFT (INCL. 4,5,7-10)
  • 1
    2203642 KIT, PISTON RING (1 RING PER KIT)
    KIT, PISTON RING (1 RING PER KIT)
  • 2
    3021840 CIRCLIP, PISTON
    CIRCLIP, PISTON
  • 3
    2203606 KIT, PISTON (INCL. 1,2,11)
    KIT, PISTON (INCL. 1,2,11)
  • 4
    2203594 KIT, CONNECTING ROD
    KIT, CONNECTING ROD
  • 5
    3514357 BEARING
    BEARING
  • 6
    7721117 KEY, WOODRUFF
    KEY, WOODRUFF
  • 7
    3514499 BEARING, BALL, DOUBLE ROW
    BEARING, BALL, DOUBLE ROW
  • 8
    3514363 BEARING, BALL
    BEARING, BALL
  • 8
    7710528 RING, SNAP
    RING, SNAP
  • 9
    5133689 GEAR, PUMP DRIVE
    GEAR, PUMP DRIVE
  • 10
    3514587 BEARING, BALL
    BEARING, BALL
