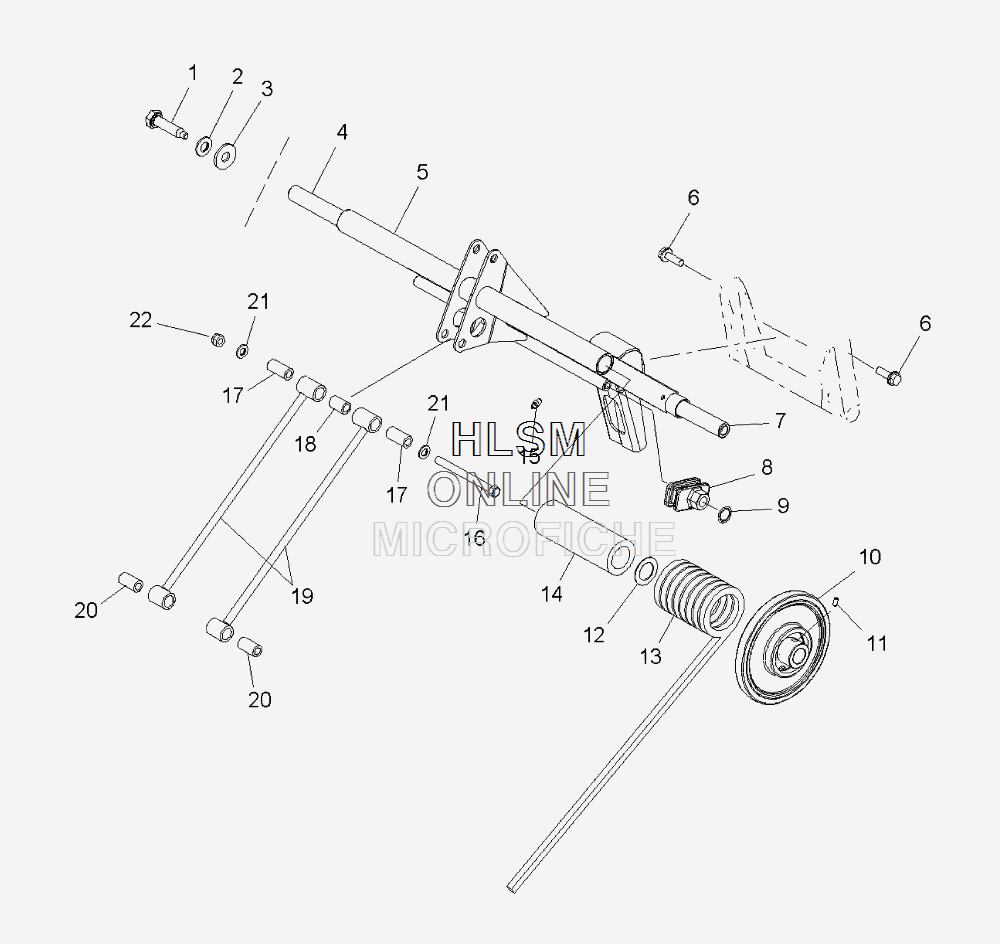

SUSPENSION- TORQUE ARM- REAR для Polaris 600 WIDETRAK IQ (2010) [S10PU6KSL] - 2010 года выпуска
-
№АртикулНазвание
-
11111 SCREW, SOCKET SETSCREW, SOCKET SET
-
17518261 SCREWSCREW
-
27552614 WASHER, LOCKWASHER, LOCK
-
37555984 WASHER, FLATWASHER, FLAT
-
45137060 SHAFTSHAFT
-
51542726-329 ARM, REAR TORQUE (BLACK)ARM, REAR TORQUE (BLACK)
-
67518986 SCR-5/16-18X1.25,FLGHX,P80,G5SCR-5/16-18X1.25,FLGHX,P80,G5
-
75136312 SHAFT-.PIVOT,.689 X 9.92SHAFT-.PIVOT,.689 X 9.92
-
85432983 ROLLER, SPRING, ADJUSTABLE, SQUAREROLLER, SPRING, ADJUSTABLE, SQUARE
-
97080394 CLIP, PUSH-ONCLIP, PUSH-ON
-
101542556 ASM., CARRIER WHEEL W/COLLAR (INCL. 11)ASM., CARRIER WHEEL W/COLLAR (INCL. 11)
-
103514303 BEARING #6205BEARING #6205
-
107718407 RING, RETAININGRING, RETAINING
-
117512257 SCREW, SOCKET SETSCREW, SOCKET SET
-
127556301 BUSHINGBUSHING
-
137042282-067 SPRING, TORSION, LEFT HAND (BLACK) .421/77SPRING, TORSION, LEFT HAND (BLACK) .421/77
-
137042283-067 SPRING, TORSION, RIGHT HAND (BLACK) .421/77SPRING, TORSION, RIGHT HAND (BLACK) .421/77
-
145437486 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
157080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
167515496 SCREWSCREW
-
175133101 BUSHING-.378X.616X1.289BUSHING-.378X.616X1.289
-
185010422 BUSHINGBUSHING
-
191541631-067 WELD-SHOCK ROD,13",BLACKWELD-SHOCK ROD,13",BLACK
-
205132391 BUSHING,.378X.616X1.12BUSHING,.378X.616X1.12
-
217555795 WASHER, WAVEWASHER, WAVE
-
227547263 NUT, NYLOKNUT, NYLOK
