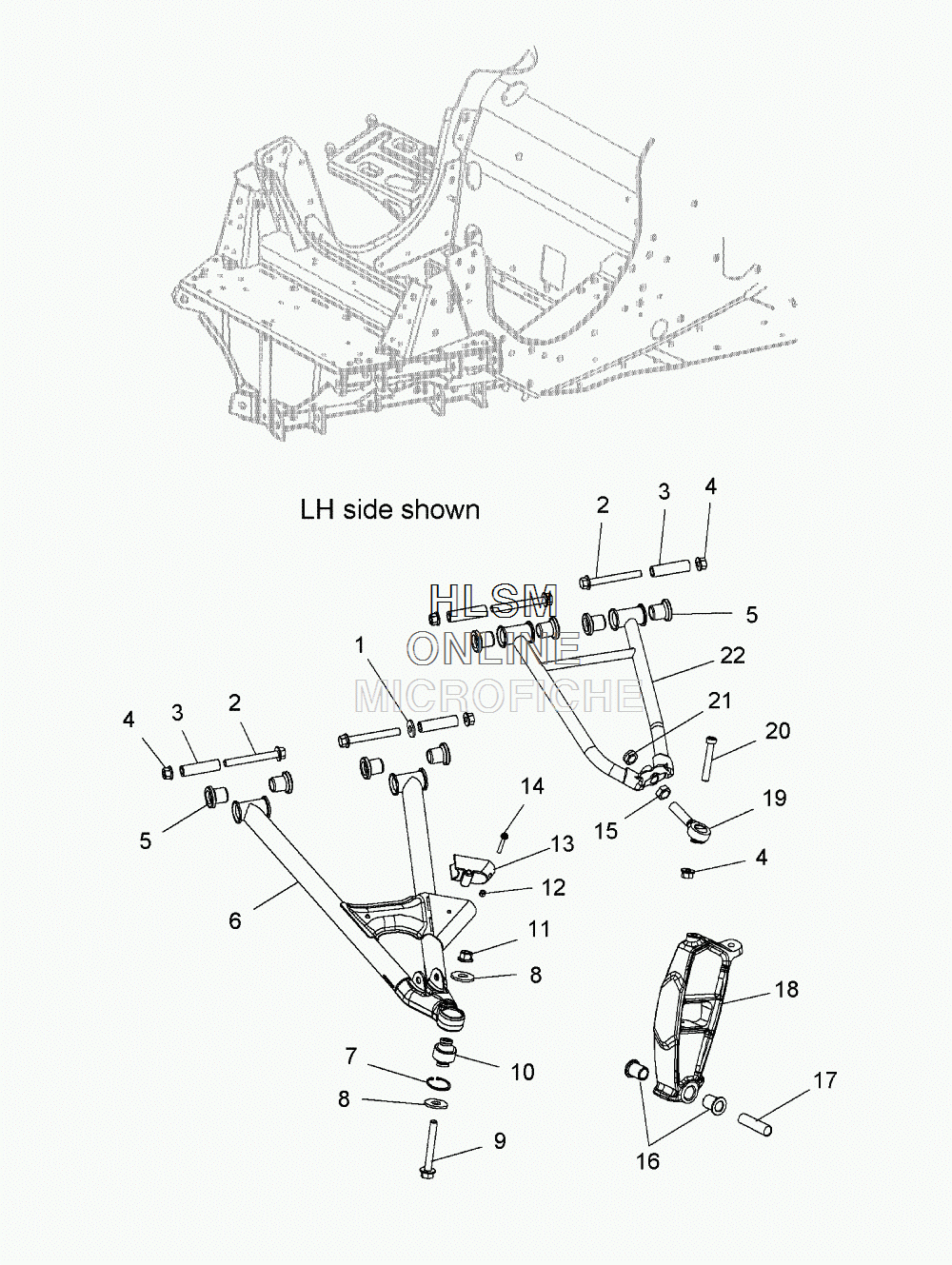

SUSPENSION- FRONT- CONTROL ARMS AND SPINDLE для Polaris 600 SWITCHBACK ES INTERNATIONAL (2010) [S10PR6] - 2010 года выпуска`
-
№АртикулНазвание
-
17555893 WASHER, FLATWASHER, FLAT
-
27518384 SCREWSCREW
-
35135943 SHAFT, PIVOTSHAFT, PIVOT
-
47547180 NUT, FLANGEDNUT, FLANGED
-
55434932 BUSHING, PIVOTBUSHING, PIVOT
-
62203021-067 KIT, LOWER CONTROL ARM (BLACK) LEFT HAND (INCL. 3-7,10-14)KIT, LOWER CONTROL ARM (BLACK) LEFT HAND (INCL. 3-7,10-14)
-
62203022-067 KIT, LOWER CONTROL ARM (BLACK) RIGHT HAND (INCL. 3-7,10-14)KIT, LOWER CONTROL ARM (BLACK) RIGHT HAND (INCL. 3-7,10-14)
-
77710539 RING, RETAININGRING, RETAINING
-
87556153 WASHERWASHER
-
97518478 SCREWSCREW
-
102203107 KIT, SPHERICAL BEARING, LOWER (INCL. 7)KIT, SPHERICAL BEARING, LOWER (INCL. 7)
-
117547344 NUTNUT
-
127541925 NUT, NYLOKNUT, NYLOK
-
135435522 SLIDE, SWAY BARSLIDE, SWAY BAR
-
147518708 SCREWSCREW
-
157542711 NUT, JAMNUT, JAM
-
165133983 BUSHING, SKI PIVOTBUSHING, SKI PIVOT
-
175010158 BUSHING, PIVOTBUSHING, PIVOT
-
181823248 ASM., SPINDLE, LEFT HAND (INCL. 16)ASM., SPINDLE, LEFT HAND (INCL. 16)
-
181823249 ASM., SPINDLE, RIGHT HAND (INCL. 16)ASM., SPINDLE, RIGHT HAND (INCL. 16)
-
197061145 ROD ENDROD END
-
207518428 SCREWSCREW
-
217547104 NUTNUT
-
222203019-067 KIT, UPPER CONTROL ARM (BLACK) LEFT HAND (INCL. 3-5,15,19,21)KIT, UPPER CONTROL ARM (BLACK) LEFT HAND (INCL. 3-5,15,19,21)
-
222203020-067 KIT, UPPER CONTROL ARM (BLACK) RIGHT HAND (INCL. 3-5,15,19,21)KIT, UPPER CONTROL ARM (BLACK) RIGHT HAND (INCL. 3-5,15,19,21)
