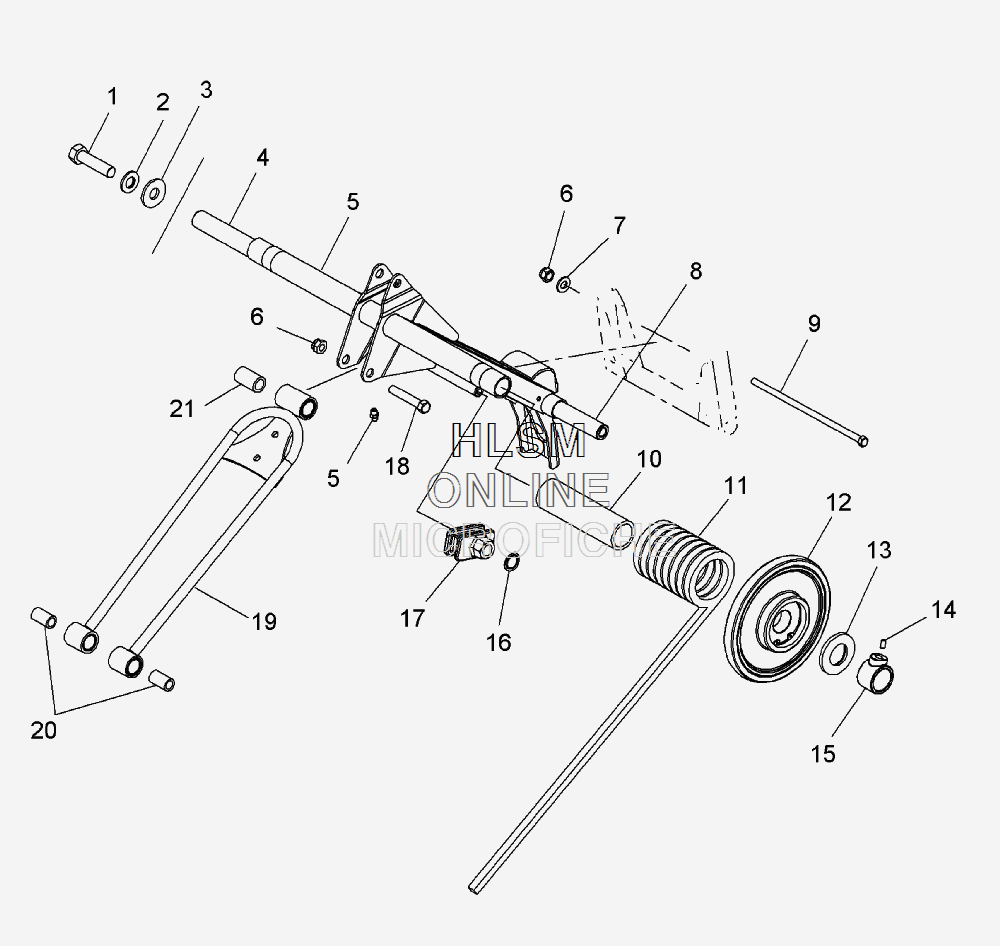

SUSPENSION- TORQUE ARM- REAR для Polaris 600 RMK ES (2010) [S10PK6HEA] - 2010 года выпуска`
-
№АртикулНазвание
-
17518005 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
45133987 SHAFT-.75X15.404,2024SHAFT-.75X15.404,2024
-
51541963-067 ARM, REAR TORQUE (BLACK)ARM, REAR TORQUE (BLACK)
-
57080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
67547217 NUT, NYLOKNUT, NYLOK
-
77558402 WASHER, FLATWASHER, FLAT
-
85333997 SHAFT-.689X.334X5.220 ANNODIZSHAFT-.689X.334X5.220 ANNODIZ
-
97517908 SCREW-5/16-24X6.00,HX/CP, GR5-SCREW-5/16-24X6.00,HX/CP, GR5-
-
105434337 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
117041629-067 SPRING, TORSION, .359/77 (BLACK) LEFT HAND (STD)SPRING, TORSION, .359/77 (BLACK) LEFT HAND (STD)
-
117041630-067 SPRING, TORSION, .359/77 (BLACK) RIGHT HAND (STD)SPRING, TORSION, .359/77 (BLACK) RIGHT HAND (STD)
-
117041627-067 SPRING, TORSION, .347/77 (BLACK) LEFT HAND (OPT)SPRING, TORSION, .347/77 (BLACK) LEFT HAND (OPT)
-
117041628-067 SPRING, TORSION, .347/77 (BLACK) RIGHT HAND (OPT)SPRING, TORSION, .347/77 (BLACK) RIGHT HAND (OPT)
-
117041942-067 SPRING, TORSION, .375/77 (BLACK) LEFT HAND (OPT) (STD INT'L)SPRING, TORSION, .375/77 (BLACK) LEFT HAND (OPT) (STD INT'L)
-
117041943-067 SPRING, TORSION, .375/77 (BLACK) RIGHT HAND (OPT) (STD INT'L)SPRING, TORSION, .375/77 (BLACK) RIGHT HAND (OPT) (STD INT'L)
-
121590328 ASM., WHEEL, BOGIEASM., WHEEL, BOGIE
-
123514303 BEARING #6205BEARING #6205
-
127718407 RING, RETAININGRING, RETAINING
-
137571605 WASHER, SPRINGWASHER, SPRING
-
147518262 SCREW, SOCKET SETSCREW, SOCKET SET
-
155135424 SPACERSPACER
-
167080394 CLIP, PUSH ONCLIP, PUSH ON
-
175432983 ROLLER, SPRING, ADJUSTABLE, SQUAREROLLER, SPRING, ADJUSTABLE, SQUARE
-
187515415 SCREWSCREW
-
191542170 ASM., ROD, SHOCK (INCL. BUSHINGS)ASM., ROD, SHOCK (INCL. BUSHINGS)
-
195435722 BUSHING-.568X.688X1.36,VESPELBUSHING-.568X.688X1.36,VESPEL
-
195435723 BUSHING-.568X.688X.92,VESPELBUSHING-.568X.688X.92,VESPEL
-
205135043 BUSHING-.385X.560X.967BUSHING-.385X.560X.967
-
215134601 BUSHING-.385X.550X1.39BUSHING-.385X.550X1.39
