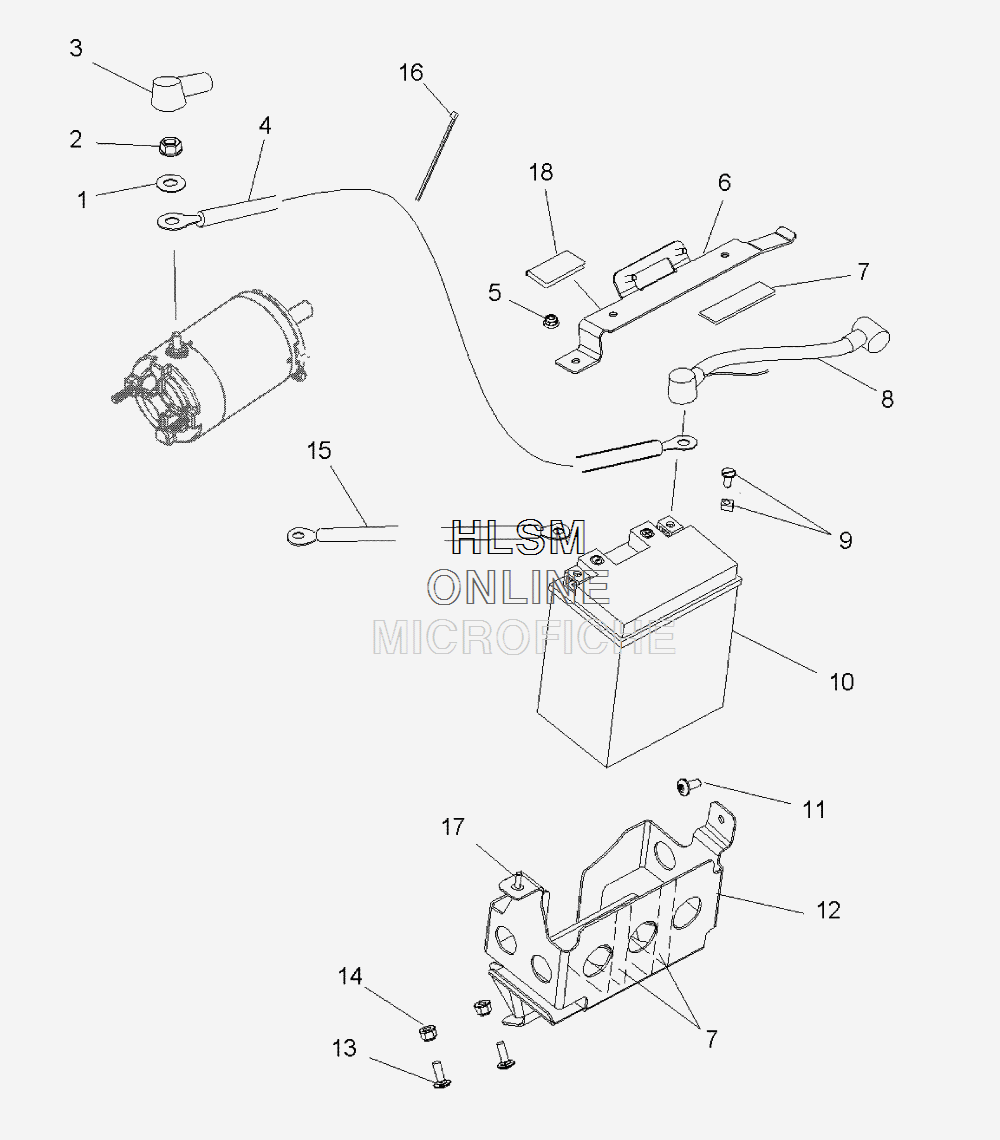

BATTERY AND CABLES для Polaris 600 RMK 155 INTERNATIONAL (2010) [S10PM6HSL] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    7552801 WASHER
    WASHER
  • 2
    7542105 NUT
    NUT
  • 3
    5410346 INSULATOR, CABLE
    INSULATOR, CABLE
  • 4
    4011672 CABLE, 62 INCH (RED)
    CABLE, 62 INCH (RED)
  • 5
    7518287 NUT
    NUT
  • 6
    1016727 BOX, BATTERY, UPPER
    BOX, BATTERY, UPPER
  • 7
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 8
    2460393 ASM., CABLE, BATTERY/SOLENOID
    ASM., CABLE, BATTERY/SOLENOID
  • 9
    2201357 KIT, BATTERY BOLT
    KIT, BATTERY BOLT
  • 10
    4010466 BATTERY
    BATTERY
  • 11
    7515148 SCREW
    SCREW
  • 12
    1017053 ASM., BOX, BATTERY, LOWER
    ASM., BOX, BATTERY, LOWER
  • 13
    7515203 SCREW
    SCREW
  • 14
    7542153 NUT
    NUT
  • 15
    4011673 CABLE, 70 INCH (BLACK)
    CABLE, 70 INCH (BLACK)
  • 16
    7080138 CABLE TIE
    CABLE TIE
  • 17
    7517703 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 18
    5521131 TRIM,EDGE, 6FT,(BLACK) (SVC LENGTH)
    TRIM,EDGE, 6FT,(BLACK) (SVC LENGTH)
